Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of dn15 ultrasonic water meter wireless digital brass body in China. If you're going to wholesale high quality dn15 ultrasonic water meter wireless digital brass body, welcome to get pricelist and quotation from our factory.

The ultrasonic water meter adopts the measurement principle of time difference method, which is specially designed for water supply pipelines and household metering master meters, which solves the problems of high initial flow rate, large pressure loss and mechanical wear of traditional water meters.

In terms of structure, the component IP68 scheme is adopted, that is, each component reaches the IP68 protection level, and the instrument cavity can guarantee long-term operation even if water enters it.

Ultrasonic water meters have the remarkable characteristics of high precision, wide range ratio, small initial flow rate, stable and reliable performance, etc., and can be widely used in water supply pipe network, household water consumption summary meter, water intake monitoring of water resources and farmland irrigation and other occasions. Can be used in various industrial sites.

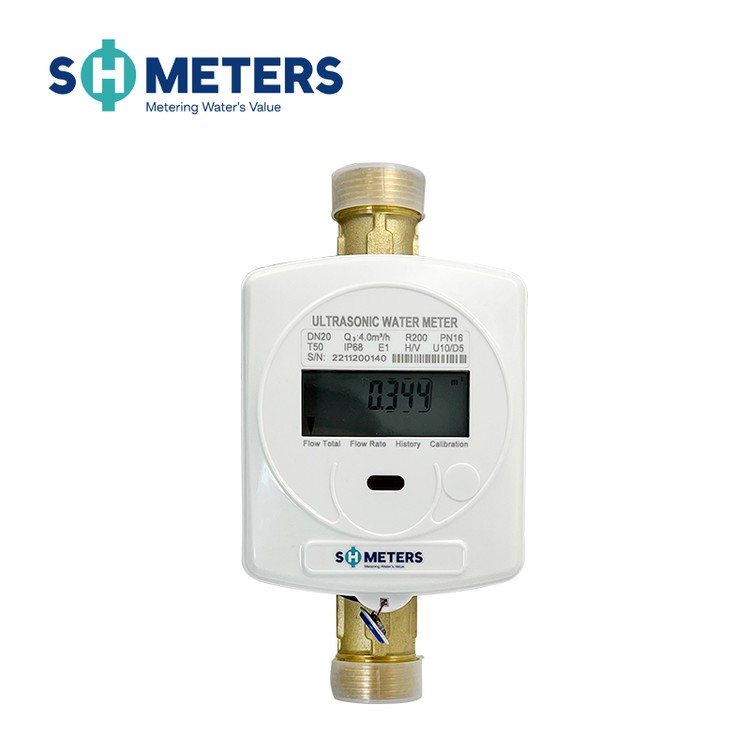

ultrasonic water meters 4

2ultrasonic water meter types

3ultrasonic water meter parameter

Nominal Diameter	Length L	Length L1	Width B	Height H1	Connecting Thread
mm					d	D
15	258	165	95	95	R1/2B	G3/4B
20	299	195	95	100	R3/4	G1B
25	345	225	95	108	R1	G1 1/4B
32	305	180	95	120	R1 1/4	G1 1/2B
40	330	200	95	125	R1 1/2	G2B
