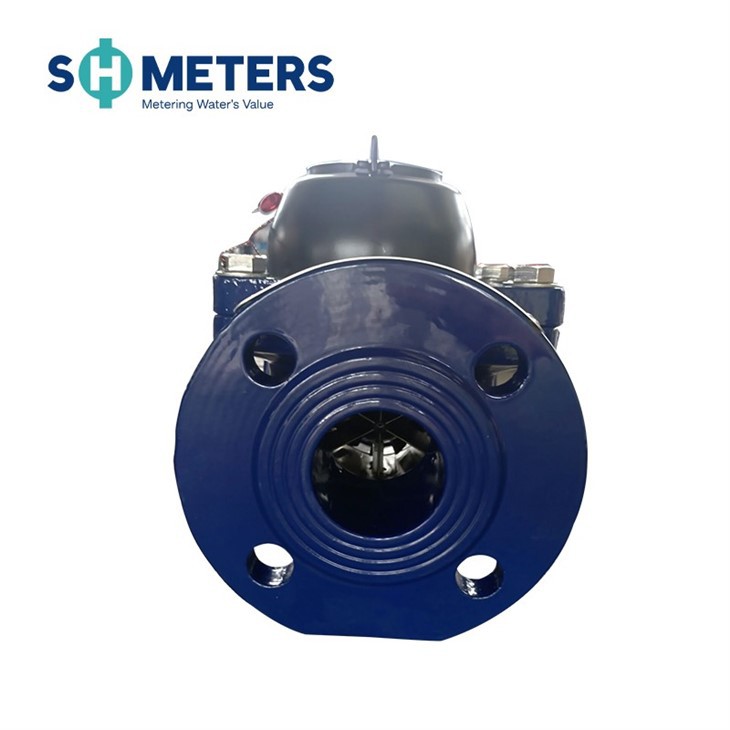

Agriculture Irrigation Horizontal Woltman Cold Water Meter

Type: Turbine meters
Product name: irrigation water meter
Size: DN50-DN600
Application: Irrigation Water Meter Flow Meter
Standard: ISO-4064
Temperature: Cold Water:0.1-50 /hot Water:0.1-90
Material: Cast Iron/Ductile iron/SS304/SS316

Send Inquiry

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of agriculture irrigation horizontal woltman cold water meter in China. If you're going to wholesale high quality agriculture irrigation horizontal woltman cold water meter, welcome to get pricelist and quotation from our factory.

The series of water meters are used to measure the total quantity of cold potable water, consumed in a household or a resident unit, passing through the large flow rater pipeline.

woltman water meters

Feature
.Dry-dial, Detachable structure, magnetic drive
. Vacuum-sealed register ensures the dial is kept free from fog and keeps the reading clear in a long-term service
.Small Pressure loss
.Measuring accuracy conforms to ISO 4064 Class B standard
.Universal use
.Convenience replacement repair
.Cold water meter or hot water meter for option

woltman water meters display

woltman water meters register

woltman water meters dimension and weight

Type	Size	L Length	H Height	Connecting Flange
				D1 Outside Diameter	D2 Bolt Circle Diameter
LXLC-50	50	200	214	165	125
LXLC-65	65	200	224	185	145
LXLC-80	80	225	279	200	160
LXLC-100	100	250	289	220	180
LXLC-125	125	250	299	250	210
LXLC-150	150	300	319	285	240
LXLC-200	200	350	346	340	295

LXLC-250	250	450	434	395	350
				405	355
LXLC-300	300	500	459	445	400
				460	410
LXLC-350	350	500	590	505	460
				520	470
LXLC-400	400	600	660	565	515
				580	525
LXLC-450	450	600	700	615	565
				640	585
LXLC-500	500	800	760	670	620
				715	650
LXLC-600	600	800	880	780	725
				840	770

woltman water meters application

Characteristics
All the materials in contact with water, consciously selected by the known resistance to corrosion;
Iron body;
The ROTATING indicator registers for the most comfortable reading position;
The copper can super dry register with IP68 protection;
The interchangeable, removable measuring mechanism can be easily removed from the body for checking, maintaining, and replacing, no need to dismantle the body from the pipe;
The paddle wheel design resists blockage and damage to the meter from solids in water;
Magnetic transmission, Low-pressure loss;
Suitable for irrigation, agriculture, and wastewater application;
