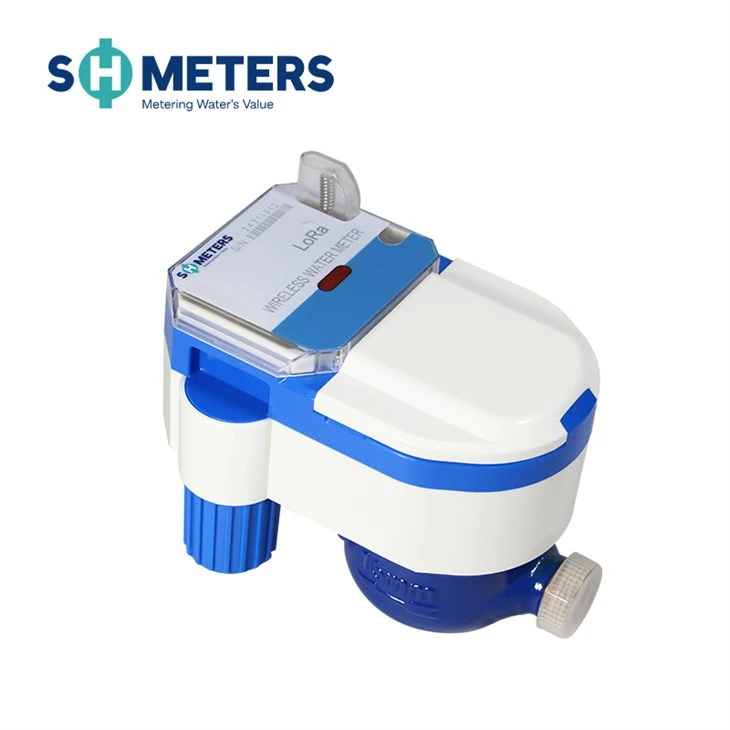

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of lora smart water meter brass body dn15~ 25mm with wireless communications in China. If you're going to wholesale high quality lora smart water meter brass body dn15~ 25mm with wireless communications, welcome to get pricelist and quotation from our factory.
Products Description
The LoRa water meter is a smart water meter that utilizes LoRa (Long Range) wireless communication technology. It is used for remotely monitoring water consumption, transmitting data, and supporting automated management. Compared to traditional water meters, it eliminates the need for manual meter reading and offers advantages such as low power consumption, wide coverage, and low cost.
Products Features
Remote Meter Reading: Utilizing LoRa technology, water meter data can be transmitted to the management platform in real-time. Water utilities no longer need to send personnel for on-site readings, reducing workload and error rates.
Real-Time Monitoring and Data Analysis: Water consumption, flow fluctuations, pressure changes, and other metrics can be monitored in real time. Once uploaded to the cloud platform, big data analysis can help promptly detect meter malfunctions, pipeline leaks, and other issues.
Remote Control and Management: Water utilities can remotely open or close valves, adjust water flow, and perform other operations, enhancing system flexibility and response speed.
Long-Distance Communication: LoRa technology enables data transmission over several kilometers, maintaining stable connectivity in both urban and rural environments. This allows meters to be installed far from the data concentrator.
Low Power Consumption: The low-power characteristics of LoRa technology allow water meters to operate for several years on battery power, reducing maintenance costs and complexity.
Technical Specifications
|
Item
|
Unit
|
Details
|
||
|
Nominal Diameter
|
mm
|
15 | 20 | 25 |
|
Q3/Q1
|
R100 | |||
|
Overload Flow Rate (Q4)
|
m3 / h
|
3.125
|
5 | 7.875 |
|
Permanent Flow Rate (Q3)
|
m3 / h
|
2.5 | 4 | 6.3 |
|
Transitional Flow Rate (Q2)
|
m3 / h
|
0.04 | 0.064 | 0.1 |
|
Minimum Flow Rate (Q1)
|
m3 / h
|
0.025 | 0.04 | 0.063 |
|
Maximum Indication
|
m3
|
|||
|
Temperature Class
|
T30/T50/T90
|
|||
|
Pressure Class
|
PN10/PN16
|
|||
|
Pressure Loss Class
|
0.63bar
|
|||
|
Electromagnetic Environment Class
|
E1
|
|||
|
Environmental Classification
|
O
|
|||
|
Protection Class
|
IP68
|
|||
|
Installation Direction
|
H
|
|||
|
Sensitivity to Irregularity Velocity Field Class
|
U10/D5
|
|||
|
Battery Lifetime
|
≥6 years
|
|||
Outline Dimensional Drawing
|
Nominal Diameter
|
Length L
|
Length L1
|
Width B
|
Height H1
|
Height H2
|
Connecting Thread
|
|
| mm | d | D | |||||
| 15 | 258 | 165 | 90 | 112 | 184 |
R1/2
|
G3/4B
|
| 20 | 299 | 195 | 90 | 112 | 184 |
R3/4
|
G1B
|
| 25 | 345 | 225 | 90 | 114 | 186 |
R1
|
G1 1/4B
|
