Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of dn15mm multi jet plastic water meter mechanism in China. If you're going to wholesale high quality dn15mm multi jet plastic water meter mechanism, welcome to get pricelist and quotation from our factory.

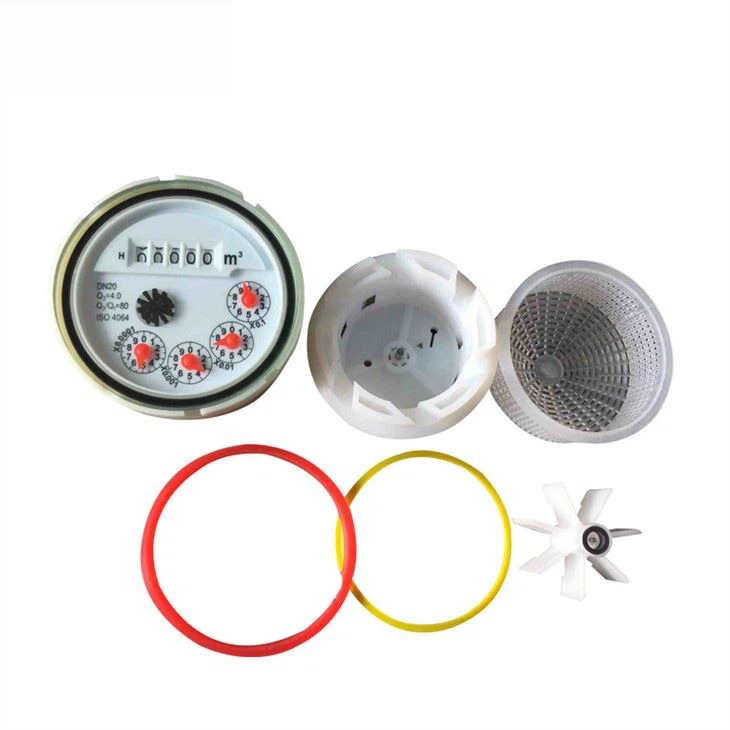

A DN15mm Multi-Jet Plastic Water Meter Mechanism is part of a multi-jet water meter that measures water flow and consumption. It consists of a plastic meter cover, a meter coupling, a register, a magnetic drive mechanism, and an external regulation device. It has a compact design with a more petite meter body and a 45° inclined record. It also has anti-magnetic protection to prevent tampering.

water meter parts

Features of multi jet plastic water meter mechanism
Compact design with smaller meter body.
Brass body is only 570g weight for save cost

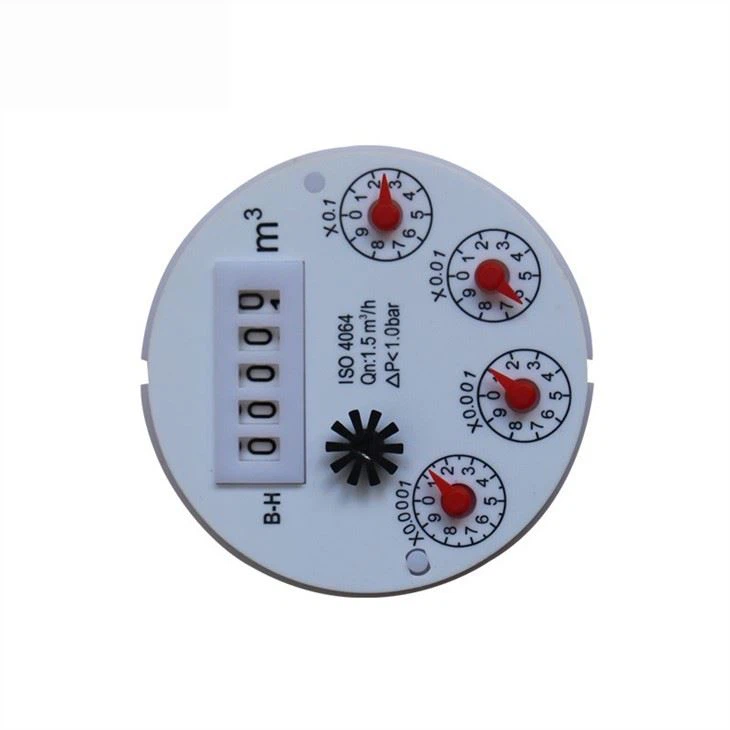

45° inclined register, hot wire tamper proof.
Magnetic drive mechanism with anti-magnetic protection.
External regulation device

Standards Compliance

Directive 2004/22/EC on measuring instruments;
the European  Standard EN14154+A1+A2: Water Meter;
the International  Organization of Legal Metrology OIML R-49: 2006(E)

Optional Features
Several lengths and connections available on request
Nonreturn Valve
Reed switch option

Working Conditions
Water temperature: ≤50ºC for cold water meter, ≤90ºC for hot water meter
Water pressure:   ≤1MPa or 1.6MPa optional, (10bar or 16bar option)

water meter parts dispaly

Accessories
Each meter has one set coupling optional: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.

Installation requirements
The meter should be installed in horizontal position with the direction of the flow as indicated by the arrow cast in the meter body with the register face upwards.
Pipeline must be flushed before installation.
The meter should be constantly full of water during operation.

Maximum Permissible Error
In the lower zone from Qmin inclusive up to but excluding Qt is ±5%.
In the upper zone from Qt inclusive up to and including Qs is: cold water meter ±2%.

To install a DN15mm Multi-Jet Plastic Water Meter Mechanism, you need to follow these steps:

Flush the service line upstream of the meter to remove dirt and debris.

Remove meter spud thread protectors.

Set the meter in the line. Arrows on the side of the meter indicate the direction of flow.

Connect meter couplings to pipe fittings. Use pipe tape on threads. Do not over-tighten.

Turn on the water supply slowly and check for leaks.
