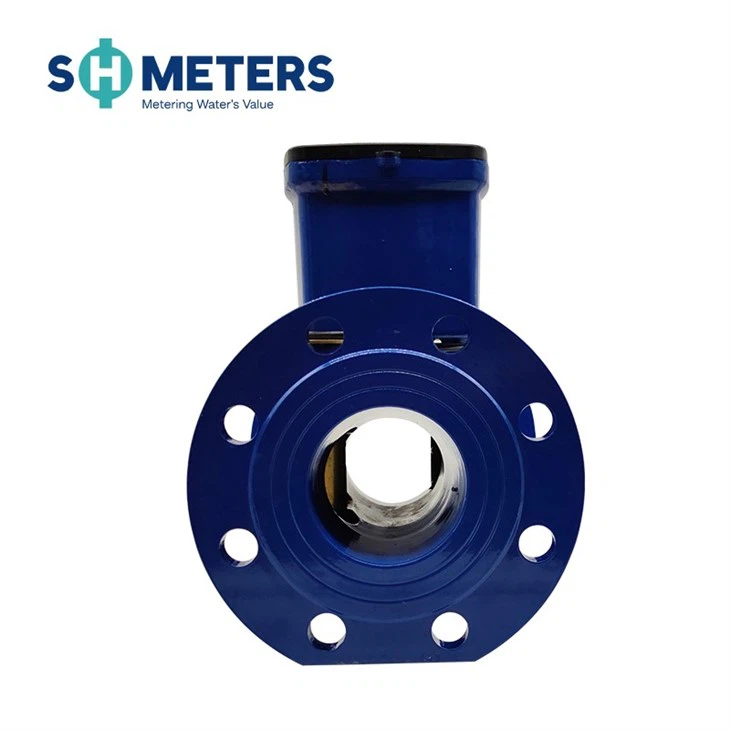

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of lorawan bulk ultrasonic water meter sh7650 in China. If you're going to wholesale high quality lorawan bulk ultrasonic water meter sh7650, welcome to get pricelist and quotation from our factory.
Product Description
The ultrasonic LoRaWAN water meter is a smart water metering solution that combines ultrasonic flow measurement technology with LoRaWAN wireless communication technology.
Product Features
- Remote Meter Reading: Utilizing LoRaWAN technology, remote data collection and transmission can be achieved without the need for on-site manual meter reading, improving efficiency and reducing labor costs.
- Real-Time Monitoring: Water authorities can access real-time water usage data from the meter, enabling timely detection of abnormal usage such as leaks or theft, and allowing for prompt action.
- Low Power Consumption: Designed with low-power technology, the device features a long battery life, reducing the frequency of battery replacements and lowering maintenance costs.
- Two-Way Communication: Supports not only data uploads to the server but also receiving commands from the server, enabling remote control of the water meter valve, parameter configuration, and other functions.
Outline Dimension Drawing
|
Nominal
Diameter(mm)
|
Length L(mm) | Width B(mm) | Hight H(mm) | Flange Diameter |
Bolt Circle
Diameter
|
| DN50 | 200 | 170 | 215 | 170 | 125 |
| DN65 | 200 | 185 | 220 | 185 | 145 |
| DN80 | 225 | 200 | 235 | 200 | 160 |
| DN100 | 250 | 220 | 255 | 220 | 180 |
| DN125 | 250 | 250 | 285 | 250 | 210 |
| DN150 | 300 | 285 | 335 | 285 | 240 |
| DN200 | 350 | 340 | 405 | 340 | 295 |
| DN250 | 450 | 405 | 490 | 405 | 355 |
| DN300 | 500 | 460 | 550 | 460 | 410 |
Technical Parameter
|
Nominal Diameter (mm)
|
50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | ||||||||||||||||
|
Q3/Q1
|
R250(R400 optional)
|
||||||||||||||||||||||||||
|
Max flow Q4(m³/h) |
31.25 | 50 | 78.75 | 125 | 200 | 312.5 | 500 | 787.5 | 1250 | 2000 | 3125 | ||||||||||||||||
|
Nominal flow Q3(m³/h) |
25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2500 | ||||||||||||||||
|
Transitional flow Q2(m³/h) |
0.16 | 0.256 | 0.403 | 0.64 | 1.024 | 1.6 | 2.56 | 4.032 | 6.4 | 10.24 | 16 | ||||||||||||||||
|
Min flowQ1(m³/h) |
0.1 | 0.16 | 0.252 | 0.4 | 0.64 | 1 | 1.6 | 2.52 | 4 | 6.4 | 10 | ||||||||||||||||
|
Start-up flow(m³/h) |
0.033 | 0.06 | 0.09 | 0.14 | 0.21 | 0.31 | 0.56 | 0.88 | 1.2 | 1.72 | 2.63 | ||||||||||||||||
|
Temperature Class
|
T30 / T50 |
||||||||||||||||||||||||||
|
Maximum Admissible Pressure
|
PN16 |
||||||||||||||||||||||||||
|
Accuracy class |
Class 2 |
||||||||||||||||||||||||||
|
Pressure loss class |
0.4bar |
||||||||||||||||||||||||||
|
Electromagnetic Environmental Class
|
E1 |
||||||||||||||||||||||||||
|
Environmental Classification
|
O |
||||||||||||||||||||||||||
|
Battery life |
＞ 8years |
||||||||||||||||||||||||||
|
Installation position |
Any angle |
||||||||||||||||||||||||||
|
Display |
LCD, 9 digits + additional characters |
||||||||||||||||||||||||||
|
Flow profile sensitivity class |
U10/D5 |
||||||||||||||||||||||||||
|
Communication interface |
RS485 Modbus/ Pulse output/GPRS/NB-IOT/LoRaWAN |
||||||||||||||||||||||||||
|
Protection class |
IP68 |
||||||||||||||||||||||||||
