Product Description
SHU8 ultrasonic water meter is a metering instrument to continuously measure, record, and display the volume of water flowing through the sensor by use of the ultrasonic time difference method. Please read this manual carefully before use, to use it to the best advantage and avoid unnecessary loss.

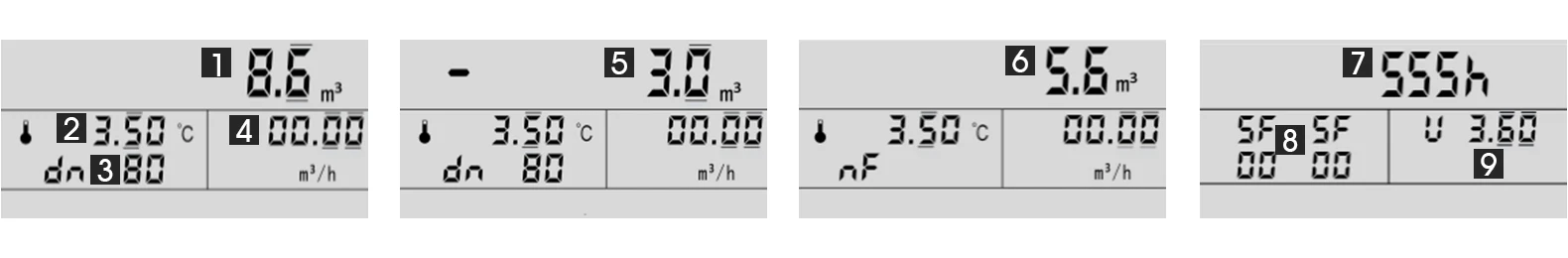

meter display content
P1: In the last interface of P1, keep covering the sensing area for more than 3S to enter P2 and repeat this operation to enter P3 ,P4
P2: Cumulative flow of the historical month
P3：For internal debugging and testing, it does not have any meaning.
P4: Test status
| Mode | No. | Display Description |
| P1 | 1 | Cumulative flow |
| 2 | Temperature | |
| 3 | Size | |
| 4 | Flow rate | |
| 5 | Negative cumulative flow | |
| 6 | Net cumulative flow | |
| 7 | Working time | |
| 8 | Sensor status | |
| 9 | Power voltage | |
| P2 | Cumulative flow of the historical month | |
| P3 | For internal debugging and testing, it does not have any meaning | |

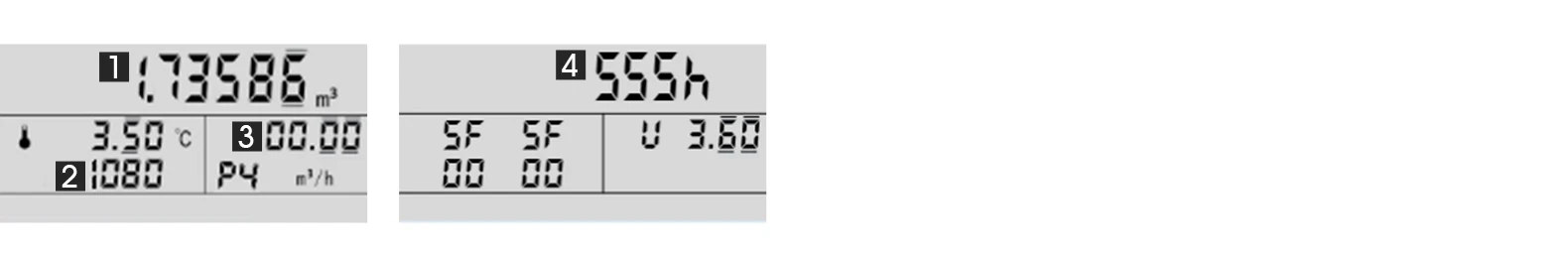

| P4 | 1 | Cumulative flow |
| 2 | Coefficient | |
| 3 | Flow rate | |
| 4 | Working time | |
Note: The display interface of the meter is subject to change for customization or upgrading.
factory

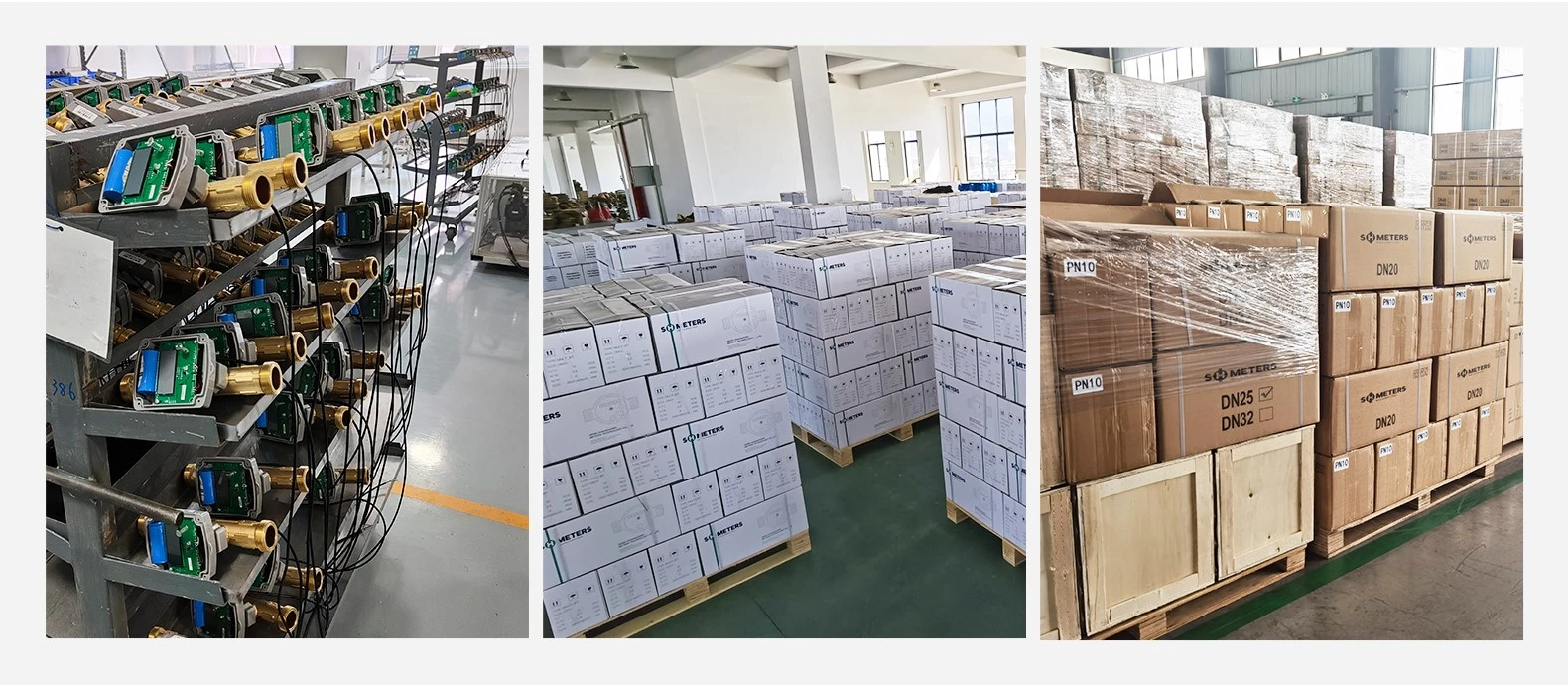

packaging and inventory
