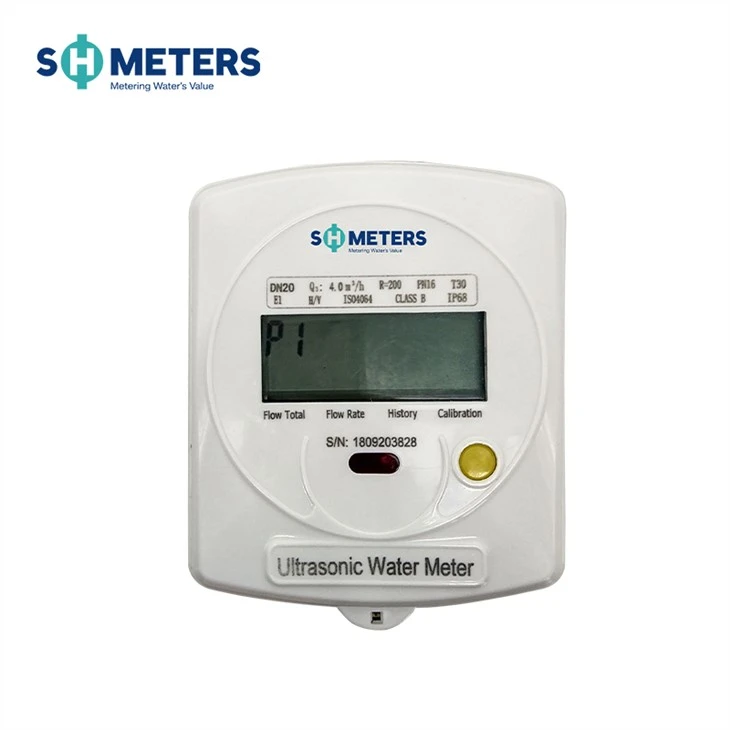

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of wireless remote reading ultrasonic water flow meter brass m-bus in China. If you're going to wholesale high quality wireless remote reading ultrasonic water flow meter brass m-bus, welcome to get pricelist and quotation from our factory.

Product Description

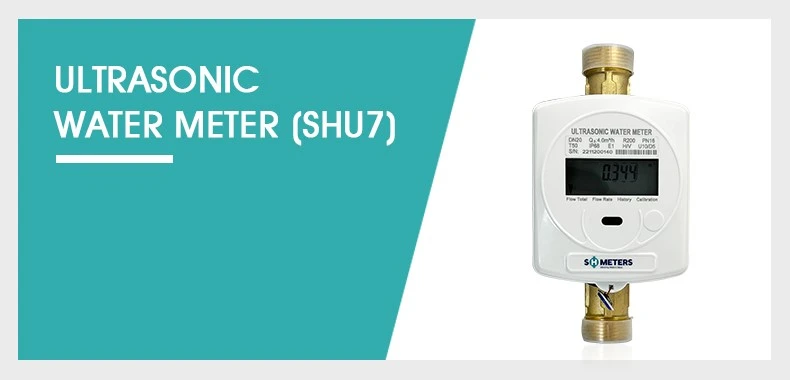

product-790-380

No Moving Parts, high accuracy for years long. No moving components in the flow sensor, avoid long-term abrasion of mechanical parts which may result in inaccurate measurement and failure of the meter. Such design is also resistant to impurities, therefore no inspections and maintenance are cost-free.

Product Features

Low starting speed (5 L/h) for accurate measurements
Flow rates up to 12.5 L/h;
Dynamic range of up to 200:1 (Q3/Q1);
No moving mechanical parts, no wear, long service life;
Low-pressure drop
Flow measurement capability
High measuring frequency
Infrared photoelectric reader interface
Capacitive touch sensor
Battery ER26500 8500mAh
Material: 58 copper, ABS plastic
Can be mounted in any mounting position
Air Alarm
Supports RS485 Modbus/LoRa/LoRaWAN/NB-IOT, suitable for outdoor installation
Protection class IP68
No data loss in case of power failure; data storage for more than 10 years; automatic storage of 23 months of historical data;
Technical data following ISO 4064 international standard.
ISO 9001 certified
Warranty period: 2 years

Outline Dimension Drawing

product-790-286

Nominal Diameter	Length L	Length L1	Width B	High H	Connecting Thread
mm					d	D
15	165	260	95	86	R	G/B
20	195	300	95	86	R	G/B
25	225	346	95	89	R	G/B
32	180	305	95	100	R1	G1/B
40	200	330	95	120	R1	G1/B

Notices for Installation

Flush the pipework before installation to remove any dirt or other debris;
Install the valve and filter before the water meter;
Do not touch electrical components during installation and do not pull on wires to avoid damage;

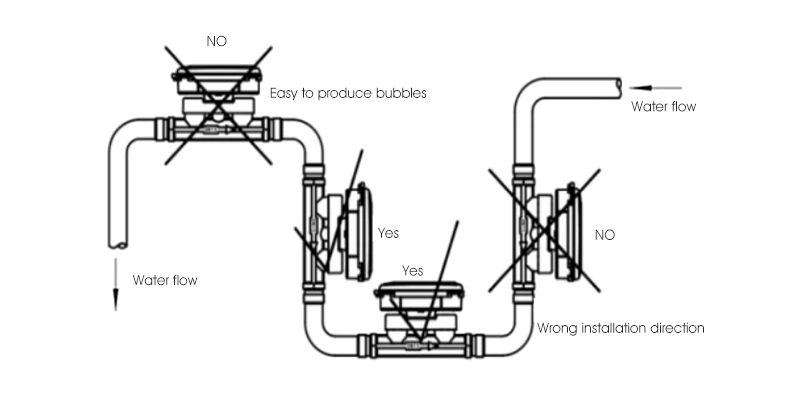

When installing the water meter in a horizontal or inclined position, place the ultrasonic flow meter sensor horizontally in the pipework;
When installing it vertically, ensure that water flows from the bottom to the top.
When installing, note that the direction of the arrow on the pipe must be parallel to the direction of water flow;
Make sure to install the connection gasket correctly to prevent a misplaced gasket from blocking the water or affecting the accuracy of the water meter;
The water meter should not be installed in a place with strong mechanical vibration; Special precautions:
1. Switching valves and filters must be installed before the water meter, and it is recommended to install switching valves after the water meter for maintenance. To prevent backflow, a check valve should be installed before or after the water meter.

The pipe must be filled with water before this water meter can be used.

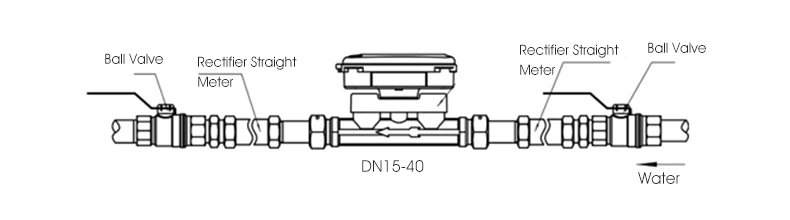

When installing the water meter, a length of DN*10 must be provided before the water meter. Alternatively, a length of DN*5 must be provided after the water meter.
The water meter will update its display every 15 seconds to read the water meter readings (including start and end values). The water meter should be tested for at least 5 seconds after the faucet is turned off.
During testing and use, ensure that the medium flow rate is within the flow range of the water meter.
If a malfunction (e.g., measurement error) occurs during use, immediately contact the Administration Department for repair.
The product has a unique safety seal that can only be removed by authorized personnel. If this is not removed, free after-sales service will not be provided.
