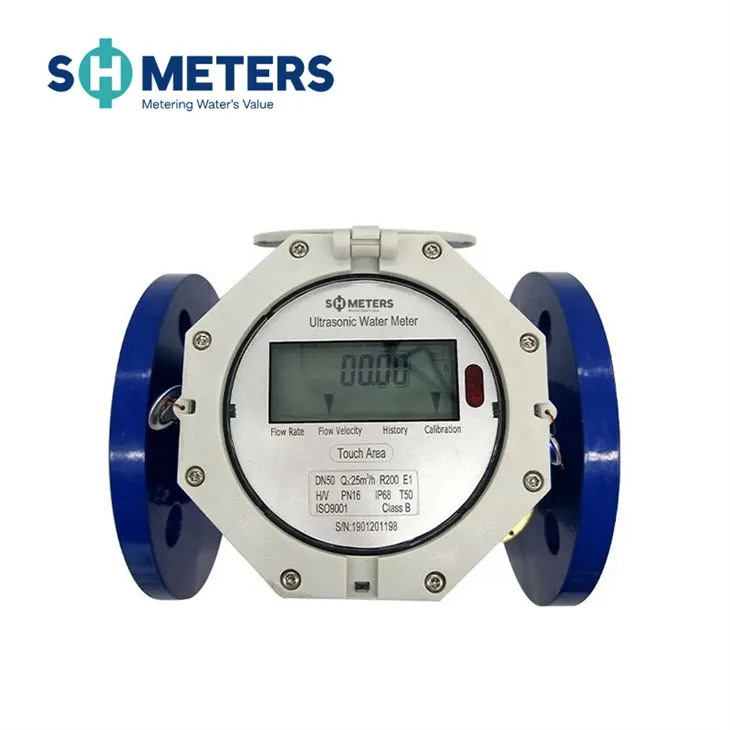

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of pipe pressure test ultrasonic water flow meter in China. If you're going to wholesale high quality pipe pressure test ultrasonic water flow meter, welcome to get pricelist and quotation from our factory.
Range ratio: R250/R400
Protection level: IP68
Maximum pressure: 1.6MPa
Maximum temperature: T50
Base material: Ductile iron
Connection method: Flange
Communication interface: M-BUS/RS485
Communication protocol: CJ188/Modbus
Channel: Two-channel / four channel
Measurement method: Positive and negative two-way measurement
Battery life: 10 years
Brief Introduction
Adopt Ultrasonic Transit-time Metering Principle, with high measuring accuracy, low power consumption, wide measuring range turn-down ratio, and stable and reliable performance. IP 68 waterproof level This series solves the issues of traditional water meters like idling, which can not measure small flow and overlarge pressure loss. It is suited to urban water supply pipes, residential water usage metering, water resources usage monitoring, and agricultural irrigation, and also suited to a variety of industrial sites.
|
Nominal Diameter(mm) |
DN50 |
DN65 |
DN80 |
DN100 |
DN125 |
DN150 |
DN200 |
DN250 |
DN300 |
|
Length L(mm) |
200 |
200 |
225 |
250 |
250 |
300 |
350 |
450 |
500 |
|
Width B(mm) |
170 |
185 |
200 |
220 |
250 |
285 |
340 |
405 |
460 |
|
Hight H(mm) |
215 |
220 |
235 |
255 |
285 |
335 |
405 |
470 |
525 |
