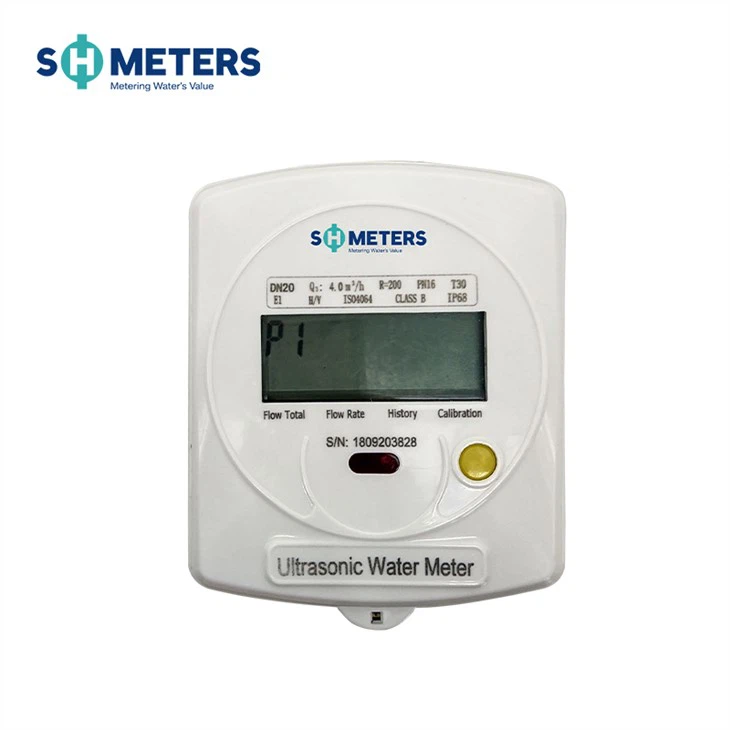

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of smart wireless remote reading ultrasonic water flow meter brass m-bus in China. If you're going to wholesale high quality smart wireless remote reading ultrasonic water flow meter brass m-bus, welcome to get pricelist and quotation from our factory.

Product Description

product-790-380

No Moving Parts, high accuracy for years long. No moving components in the flow sensor, avoid long-term abrasion of mechanical parts which may result in inaccuracy measurement and failure of the meter. Such design is also resistant to impurities, therefore no inspections and maintenance are cost-free.

Product Features

Accurate measurement at the low rate of increase (5 L/h);
Flow rates up to 12.5 L/h;
Dynamic range (Q3/Q1) up to 200:1;
No mechanical moving parts, no wear, long service life;
Low-pressure drop
Flow measurement capability
High measuring frequency
Infrared photoelectric readout interface
Capacitive touch sensitivity
ER26500 8500mAh battery
Material: 58 copper, ABS plastic
Can be mounted in any position
Air detection alarm
RS485 Modbus/LoRa/LoRaWAN/NB-IOT compatible, suitable for outdoor installation
Protection class IP68
Data retention for more than 10 years, automatic retention of 23 months of historical data
Specification according to international standard ISO 4064
ISO 9001 certification
Warranty period: 2 years

Technical Parameter

Nominal diameter (mm)	15	20	25	32	40
Overload flow Q4 (m/h)	3.125	5	7.875	12.5	20
Permanent flow Q3 (m3/h)	2.5	4	6.3	10	16
Transitional flow Q2 (m3/h)	0.02	0.032	0.05	0.08	0.128
Minimum flow Q1 (m3/h)	0.0125	0.02	0.0315	0.05	0.08
Start-up flow (m3/h)	0.005	0.005	0.008	0.01	0.015
Max flow	999999.999
Measuring range	Q3/Q1, R200/(R250 customizable)
Accuracy class	Class 2
Pressure loss class	≤0.04 MPa
Working pressure	1.6 MPa
Temperature class	T30/T50
Temperature range	(5~55)℃
Storage temperature	-20~60℃
Environment class	Class B
Electromagnetic class	E1
Power supply	Built-in lithium battery DC 3.6V
Battery life	8-10 years
Battery capacity	8500mAh
Power consumption	10μA
Installation position	Any angle
Display	LCD, 8 digits additional characters
Installation pitch	U10/D5
Communication Interface	RS485 modbus/ LoRa/LoRaWAN/NB-IOT
Protection class	IP68

Working Principle

Ultrasonic water meter is a new type of water meter that can detect the time difference caused by the change of speed when the ultrasonic beam propagates in the water upstream and downstream, analyze and deal with the flow rate of water, and then calculate the flow rate of water further.
