Product Description

No Moving Parts, high accuracy for years long. No moving components in the flow sensor, avoid long-term abrasion of mechanical parts which may result in inaccurate measurement and failure of the meter. Such design is also resistant to impurities, therefore no inspections and maintenance are cost-free.

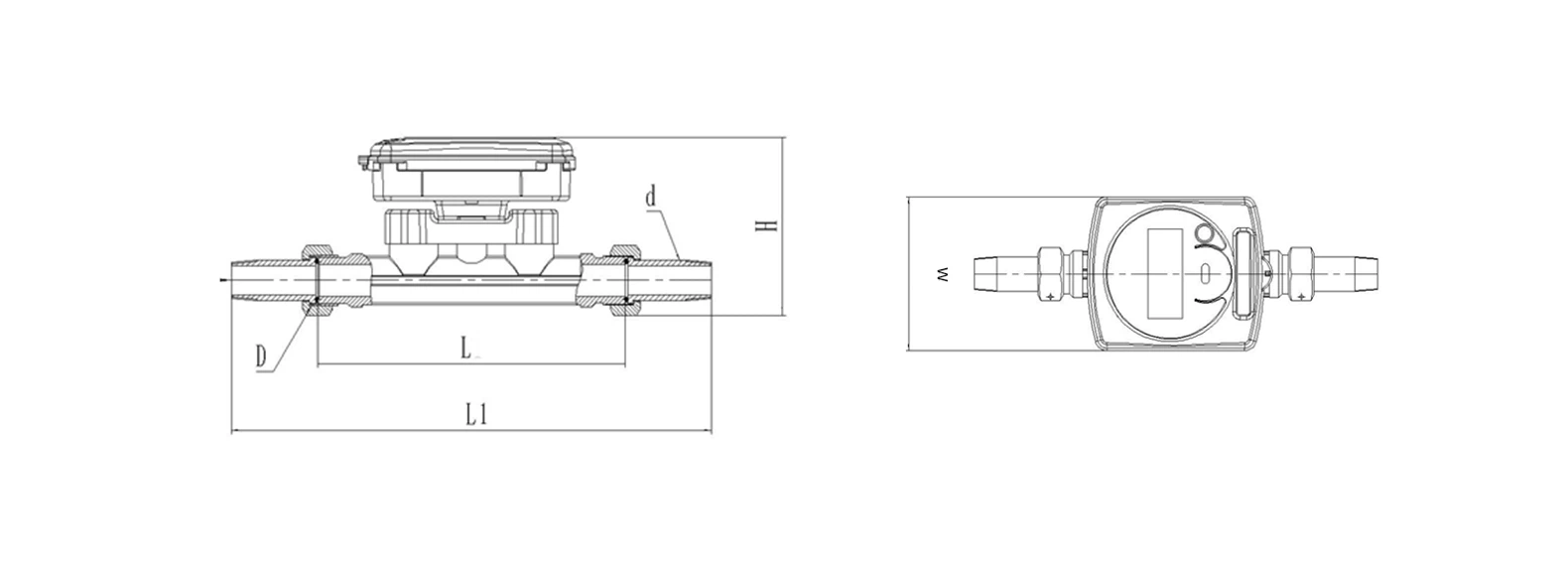

Outline Dimension Drawing

Nominal Diameter	Length L	Length L1	Width B	High H	Connecting Thread
mm					d	D
15	165	260	95	86	R	G/B
20	195	300	95	86	R	G/B
25	225	346	95	89	R	G/B
32	180	305	95	100	R1	G1/B
40	200	330	95	120	R1	G1/B

Technical Parameter

Nominal diameter (mm)	15	20	25	32	40
Overload flow Q4 (m/h)	3.125	5	7.875	12.5	20
Permanent flow Q3 (m3/h)	2.5	4	6.3	10	16
Transitional flow Q2 (m3/h)	0.02	0.032	0.05	0.08	0.128
Minimum flow Q1 (m3/h)	0.0125	0.02	0.0315	0.05	0.08
Start-up flow (m3/h)	0.005	0.005	0.008	0.01	0.015
Max flow	999999.999
Measuring range	Q3/Q1, R200/(R250 customizable)
Accuracy class	Class 2
Pressure loss class	≤0.04 MPa
Working pressure	1.6 MPa
Temperature class	T30/T50
Temperature range	(5~55)℃
Storage temperature	-20~60℃
Environment class	Class B
Electromagnetic class	E1
Power supply	Built-in lithium battery DC 3.6V
Battery life	8-10 years
Battery capacity	8500mAh
Power consumption	10μA
Installation position	Any angle
Display	LCD, 8 digits additional characters
Installation pitch	U10/D5
Communication Interface	RS485 modbus/ LoRa/LoRaWAN/NB-IOT
Protection class	IP68
