Product Description

No Moving Parts, high accuracy for years long. No moving components in the flow sensor, avoid long-term abrasion of mechanical parts which may result in inaccurate measurement and failure of the meter. Such design is also resistant to impurities, therefore no inspections and maintenance are cost-free.

Product Features

Low starting rate (5L/h), able to accurately measure;
Flow rate as low as 12.5L/h;
Dynamic range (Q3/Q1) achieved 200:1;
No mechanical moving parts, no abrades, and has a long serving lifetime;
Small pressure loss;
Can measure the flow rate;
High measurement frequency;
Infrared photoelectric reading interface;
Capacitive sensing touch;
Battery ER26500 8500mAh;
Material: 58 copper, ABS plastic;
Mounting in any installation position;
Alarm when there is air;
Support RS485 modbus/ LoRa/LoRaWAN/NB-IOT; suitable for outdoor installation;
IP68 protection level;
Data is not lost in the event of power failure. Data can be saved for more than 10 years and 23 months of historical data can be automatically saved;
Technical data conform to international standard ISO 4064;
ISO9001 certification;
Warranty:2 years.

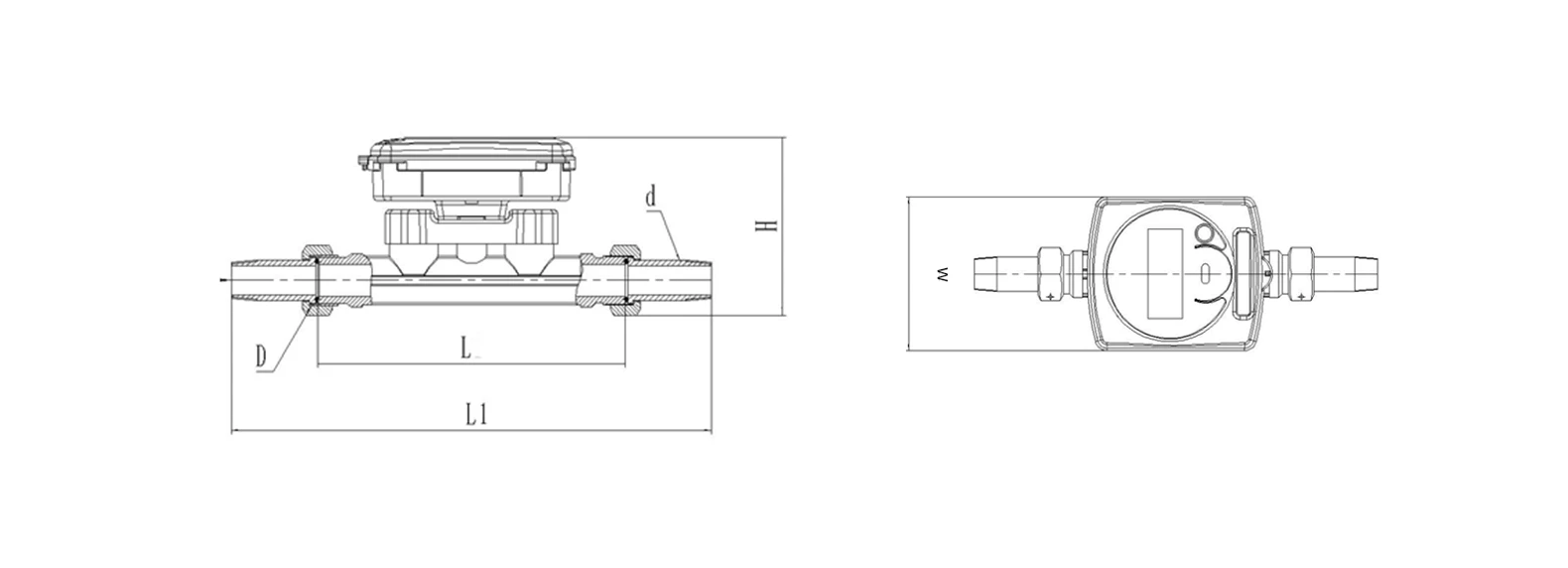

Outline Dimension Drawing

Nominal Diameter	Length L	Length L1	Width B	High H	Connecting Thread
mm					d	D
15	165	260	95	86	R	G/B
20	195	300	95	86	R	G/B
25	225	346	95	89	R	G/B
32	180	305	95	100	R1	G1/B
40	200	330	95	120	R1	G1/B

Technical Parameter

Nominal diameter (mm)	15	20	25	32	40
Overload flow Q4 (m/h)	3.125	5	7.875	12.5	20
Permanent flow Q3 (m3/h)	2.5	4	6.3	10	16
Transitional flow Q2 (m3/h)	0.02	0.032	0.05	0.08	0.128
Minimum flow Q1 (m3/h)	0.0125	0.02	0.0315	0.05	0.08
Start-up flow (m3/h)	0.005	0.005	0.008	0.01	0.015
Max flow	999999.999
Measuring range	Q3/Q1, R200/(R250 customizable)
Accuracy class	Class 2
Pressure loss class	≤0.04 MPa
Working pressure	1.6 MPa
Temperature class	T30/T50
Temperature range	(5~55)℃
Storage temperature	-20~60℃
Environment class	Class B
Electromagnetic class	E1
Power supply	Built-in lithium battery DC 3.6V
Battery life	8-10 years
Battery capacity	8500mAh
Power consumption	10μA
Installation position	Any angle
Display	LCD, 8 digits additional characters
Installation pitch	U10/D5
Communication Interface	RS485 modbus/ LoRa/LoRaWAN/NB-IOT
Protection class	IP68
