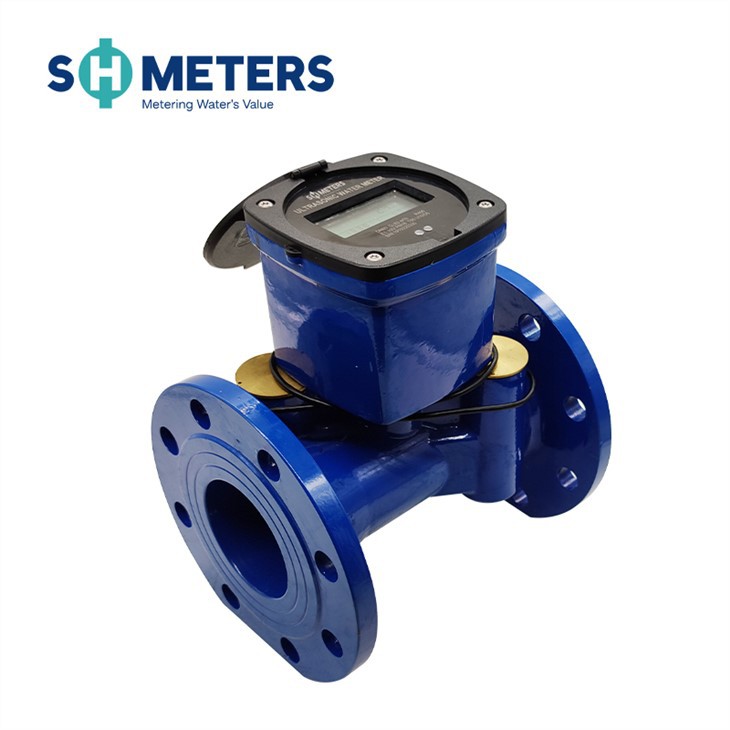

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of smart household ultrasonic water meter in China. If you're going to wholesale high quality smart household ultrasonic water meter, welcome to get pricelist and quotation from our factory.
Ultrasonic water meter itself is a kind of smart water meter. Compared with other types of smart water meters, ultrasonic water meters have stronger anti-blocking properties, high impurity passage rate, high accuracy, and low water quality requirements.
Items that can be applied to ultrasonic water meters:

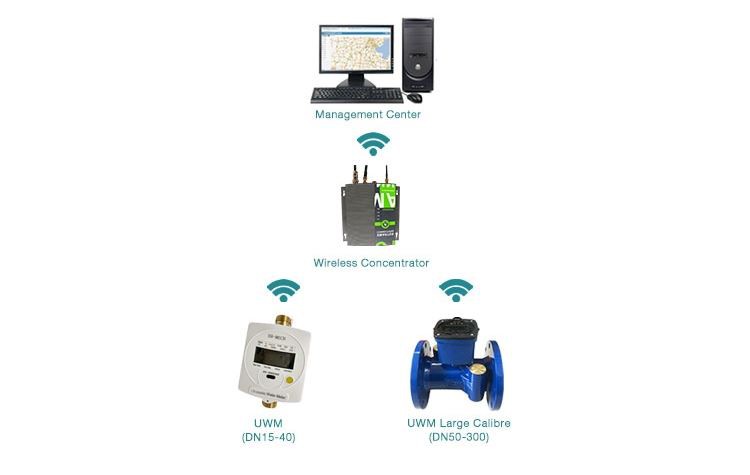

1. Applied to DMA district measurement evaluation system and water supply pipe network SCADA system;
2. Real-time monitoring of water pressure, water volume, temperature, and other parameters in the independent metering area of the water supply pipe network;
3. Analyze the trend of the lowest flow rate at night, evaluate the leakage of the pipeline network in the area, and provide a basis for real-time alarm analysis of abnormal conditions;
4. Provide a basis for monitoring data, water supply scheduling evaluation, abnormal water use alarms, pipe network hydraulic model verification, water use monitoring, and analysis of large industrial and commercial users, reducing the gap between the production and sales of water supply companies, and improving the level of pipe network management of water supply companies.
Feature
High-precision measurement improves the efficiency of water use: the water meter can detect all leaks in the supply system
No moving parts for high resistance to fouling: cost-free inspection and maintenance
No upstream or downstream straight sections of piping required
Compact size for easy installation in confined spaces
Robust design and minimum electrical power demand for a stable, long-term operation
A wide measurement range with immunity to the electrical conductivity of metered water (as required for electromagnetic water meter systems)
Extremely low-pressure loss (and low resistance to flow)
Standard IP68-rated hermetically sealed body
No risk of physical wear of the measurement chamber components, even during continuous operation at high flow rates
MAP: 16 bar
Body material: brass or composite
Resistant to strong magnetic fields
Resistant to hydraulic shock
Measurement accuracy
Stable measurement system performance by insensitivity to fouling
|
Nominal Diameter(mm) |
DN50 |
DN65 |
DN80 |
DN100 |
DN125 |
DN150 |
DN200 |
DN250 |
DN300 |
|
Length L(mm) |
200 |
200 |
225 |
250 |
250 |
300 |
350 |
450 |
500 |
|
Width B(mm) |
170 |
185 |
200 |
220 |
250 |
285 |
340 |
405 |
460 |
|
Hight H(mm) |
215 |
220 |
235 |
255 |
285 |
335 |
405 |
470 |
525 |
If you are also engaged in this field and have measurement problems, please feel free to contact us. S.H.Meters helps you find a reasonable and applicable solution.
