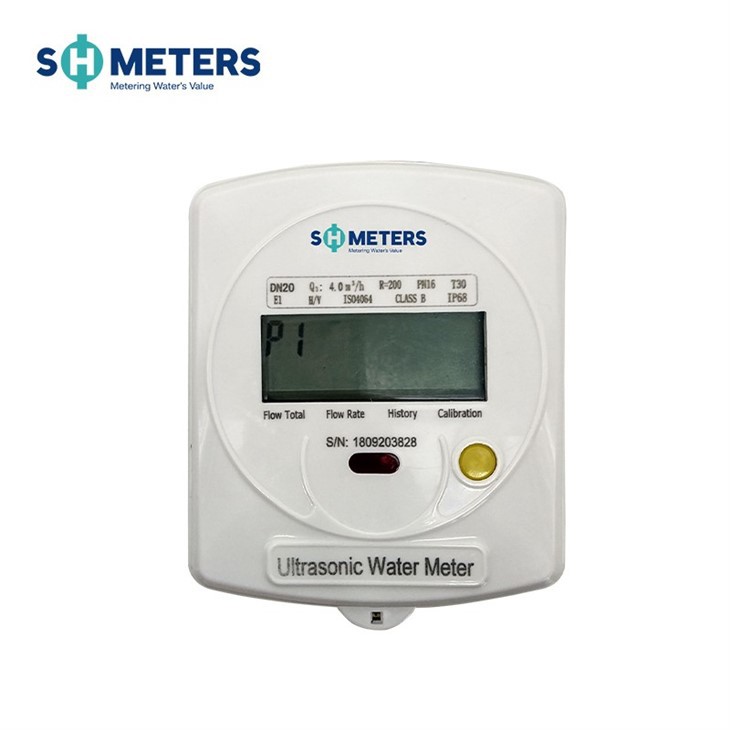

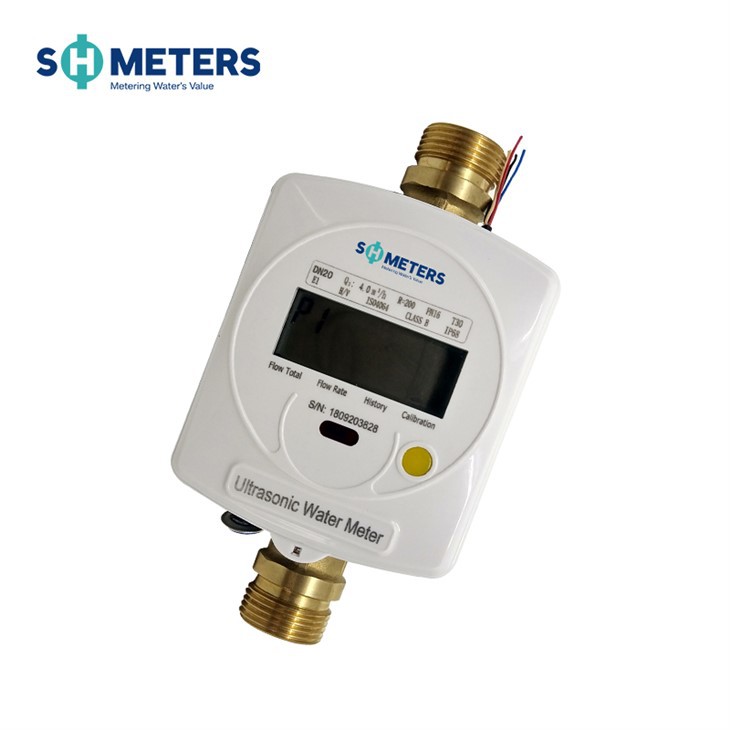

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of smart digital ultrasonic water meter lcd display in China. If you're going to wholesale high quality smart digital ultrasonic water meter lcd display, welcome to get pricelist and quotation from our factory.
|
Item |
Unit |
Parameter |
||||
|
Nominal diameter |
mm |
15 |
20 |
25 |
32 |
40 |
|
Length L |
258 |
299 |
345 |
305 |
330 |
|
|
Length L 1 |
165 |
195 |
225 |
180 |
200 |
|
|
Width B |
95 |
95 |
95 |
95 |
95 |
|
|
Height H1 |
95 |
100 |
108 |
120 |
125 |
|
|
Overload Q4 |
m³/h |
3.125 |
5 |
7.875 |
12.5 |
20 |
|
Permanent flowQ3 |
m³/h |
2.5 |
4.0 |
6.3 |
10 |
16 |
|
Range ratioQ3/Q1 |
R=200/R250/R400(The standard R is R160 ), also can be customized. |
|||||
|
Transitional flow-rateQ2 |
m³/h |
0.02 |
0.032 |
0.05 |
0.08 |
0.128 |
|
Min flowQ1 |
m³/h |
0.0125 |
0.02 |
0.0315 |
0.05 |
0.08 |
|
Accuracy |
Class 2 |
|||||
|
Temperature class |
T30/T90 |
|||||
|
Nominal pressure |
1.0MPa(Default ),1.6MPa,2.5MPa(Customized ) |
|||||
|
Pressure loss class |
p63 |
|||||
|
Flow profile sensitivity level |
U10/D5 |
|||||
|
Climatic and mechanical environmental level |
Class B |
|||||
|
Installation method |
Horizontal installation or vertical installation (under water inlet) |
|||||
Application of ultrasonic water meter in different fields
Ultrasonic Water Meters for Utilities
Adaptive deployment - in line with the technical requirements of public utility companies' water meters, in line with national standards, and can participate in relevant bidding projects
Compatible with Smart Water Management Solutions - Can be combined with measurement analysis software for AMI Smart Water Management solutions.
Ultrasonic Water Meters for Residential Applications
Reliable Operation - Provides an easy-to-read LCD display showing usage, flow, reverse flow information and alerts.
Long Term Accuracy—Maintains long-term accuracy in the +1.5% range and extended low flow accuracy in the +3% range.
Compatible with Smart Water Management Solutions - Combine with measurement analysis software suites for AMI or AMR smart water management solutions.
Ultrasonic water meters for commercial applications
Pressure and Alarm Data—Pressure alarms and reports of pressure and temperature data are available through the Measurement Analysis Suite.
Improved Gauge Display - Provides better data access and visibility within the gauge.
Wider flow range - Provides higher turndown ratios for wider flow ranges, resulting in higher revenue.
