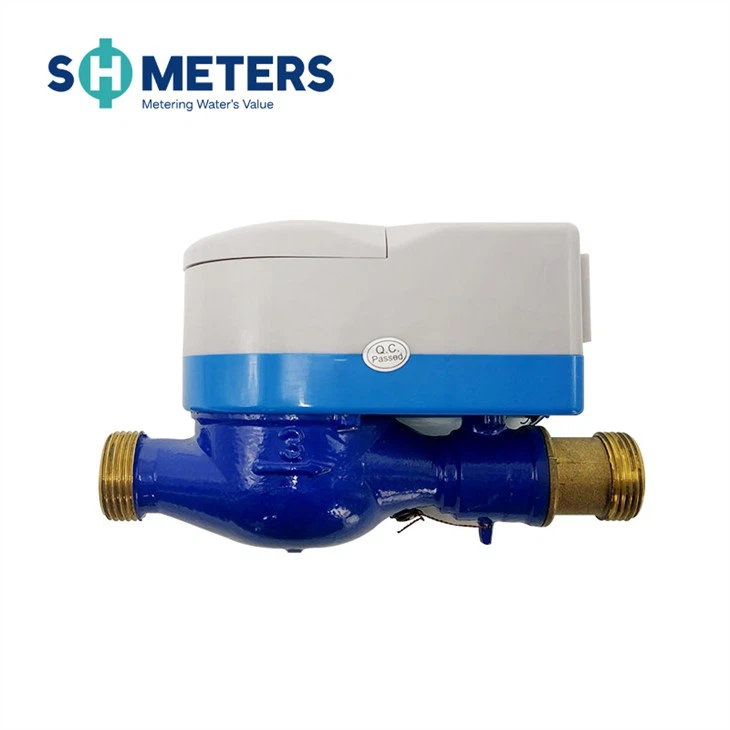

The prepaid water meter system consists of a prepaid water meter, an IC card, a card reader, and management software. Smart Ic Card Digital Prepaid Water Meter With Software adopts a one-meter one-card system.
Simply install the software on your computer and the card reader is connected to the computer via the USB interface to transfer data to the IC card. The user brings his IC card to the management center to pay the fee. After the payment is successful, the card is placed close to the water meter. After the card is successfully read, the water can be used.
Prepaid water flow meter use conditions:
Water temperature: 0-30℃
Working pressure: no more than 1MPa
Pressure loss class: ΔP63
Maximum allowable error of LoRa water meter: ±5% & ± 2%
Accuracy Class: Class B
Normal Diameter: DN15-DN600
Maximum indication: 99999
Flow profile sensitivity class: U10/D5
Environmental Class: Class B
PREPAID SYSTEM INTRODUCTION
Overviews
The IC Card series water meter is a kind of prepaid and smart water meter. It’s designed and manufactured by our company and famous design companies both domestic and aboard according to the international standard.
Advantage of the system
·OEM, language display and currency unit display can be customized, and company name can be added to the software.
·The data will be saved automatically after exiting the system.
·Simple management and user card making, easy to query consumption records.
·Invoice printing, providing payment voucher to users in the most common form in the local area.
Brief introduction

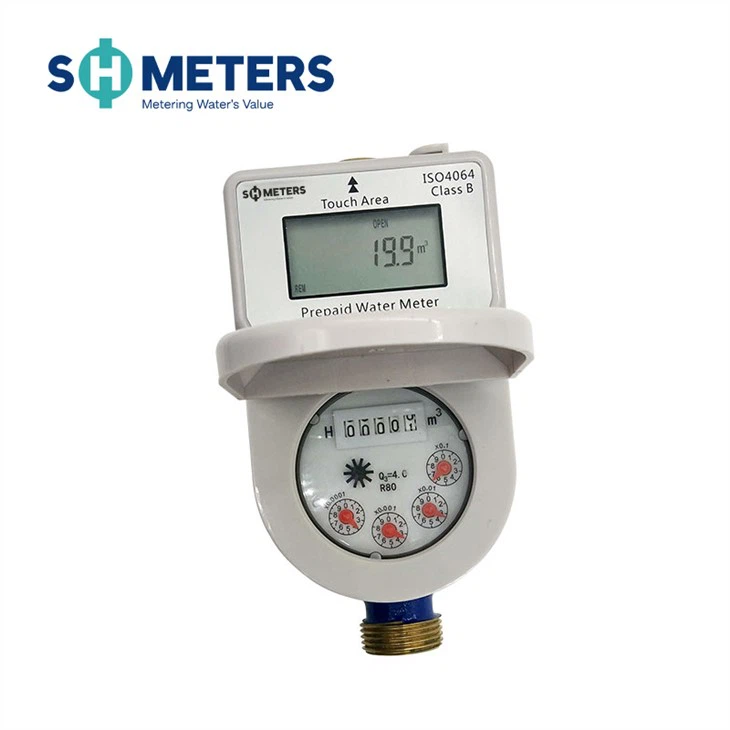

The prepaid water meter has mechanical and electronic readings. It is used to control users' overspending by prepaying with an IC card. Pay in advance and then use water to get rid of the inconvenience of on-site meter reading and charging.
Product Features
· Our ic card prepaid water meter has high accuracy
· Type: screw, joint, split
· Material: Brass
· Scenes to be used: garden, housing, commercial, general household, residential building, apartment, municipality, household, potable
· Waterproof level: IP68
· Technical data conform to international standard ISO 4064.
· Accuracy: class b
Fitting: Connector, PCB, Valve control, Reading device, Adapter, Actuator, Battery operated, Pipe fitting, Connector fitting, Coupling, Pointer, Components, Counter, Register
·Communication: IC card reading, Private protocol
Main technical data
(Ⅰ) Technical specifications
Item | Unit | Details | ||
Nominal diameter | mm | 15 | 20 | 25 |
Q3/Q1 | R80/R100 | |||
Overload flow(Q4) | m³/h | 3.125 | 5 | 7.875 |
Nominal flow(Q3) | m³/h | 2.5 | 4 | 6.3 |
Transitional flow(Q2) | m³/h | 0.05 | 0.08 | 0.13 |
Minimum flow(Q1) | m³/h | 0.031 | 0.05 | 0.08 |
Accuracy class | Class 2 | |||
Maximum indication | m³ | 99999 | ||
Temperature class | T30,T90 | |||
Pressure class | MAP 10/MAP16 | |||
Pressure loss class | ΔP63 | |||
Flow prefile sensitivity class | U10/D5 | |||
environmental class | Class B | |||
Electromagnetic environment class | E1 | |||
Static current | uA | <10 | ||
(Ⅱ) Relative error
·Maximum permissible error between Q1 and Q2(excluded) is ±5% in flow low area.
·When the water temperature is not higher than 30℃, maximum permissible error between Q2 and Q4(included) is ±2% in flow high area.
·When the water temperature is higher than 30℃, maximum permissible error between Q2 and Q4(included) is ±3% in flow high area.
(Ⅲ) Working temperature: cold water (0.1~30)℃
(IV) Operating ambient temperature: (5~55)℃
(V) Storage environmental temperature: (-5~55)℃
Fault handling instructions
Item | Fault display | Fault explanation | Elimination methods |
1 | Under voltage | Low battery | Contact the manufacturer |
2 | Flow | Flow sensor signal failure | |
3 | Valve open/close | Valve sticking rusting or scaling | |
4 | Can not read the card | Write card error or take the wrong card | Go to the water supply department to test the card |
Outline dimensional drawing
Nominal Diameter | Length L | Length L1 | Width B | Height H1 | Height H2 | Connecting Thread | |
mm | d | D | |||||
15 | 258 | 165 | 90 | 112 | 184 | R1/2 | G3/4B |
20 | 299 | 195 | 90 | 112 | 184 | R3/4 | G1B |
25 | 345 | 225 | 90 | 114 | 186 | R1 | G11/4B |
Advantage
1. High Precision Water Measurement. The account balance is 0, the water supply will be stopped at once
2. Language and Currency units can be customized.
3. Different alarm systems according to market demand.
4. Data sheets can be sent to another management system.
5. A water meter can only input a user card, which ensures that even if the user reads the water meter incorrectly not cause losses.
