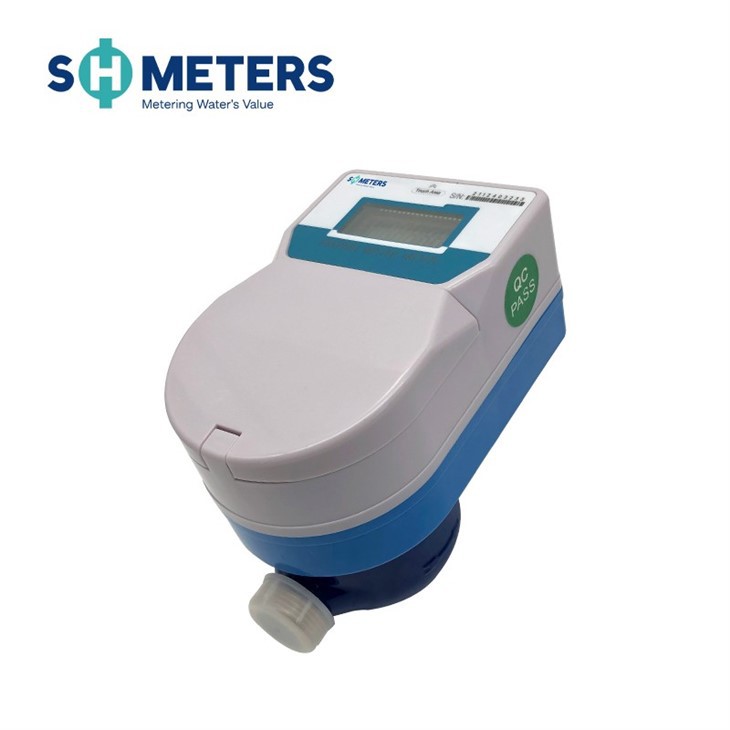

Smart IC Card Prepaid Water Meter Brass Body

★ Battery Life: ≥ 6 years
★ Security: Unique Card per Meter, uncopiable
★ IP68,1.0MPA
★ With valve and without valve control
★ The figure of water volume is displayed directly on the screen
★ The water use could be controlled as a prepaid method

Send Inquiry

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of smart ic card prepaid water meter brass body in China. If you're going to wholesale high quality smart ic card prepaid water meter brass body, welcome to get pricelist and quotation from our factory.

Prepaid water meter
1. Valve adopts rotary-wing construction, with small switch torture distance
2. One card, one meter with encipherment protection, security guaranteed
3. Valve automatically shut off when impacted by strong magnetic field action

Features:
1. Low start-up flow
2. Brass meter adopts the 4-digit pointer, and 5-digit character roller for easy and clear reading
3. IP68 for all harsh and humid environments
4. Prepaid and post-paid exchangeable
5. Pre-programmable low credit warning
6. With an exchangeable battery and up to 10 years of battery life
7. Brass / plastic meter body optional
8. Non-return valve preventing back-flow
9. Can be integrated into the AMI system with Remote reading and control functions

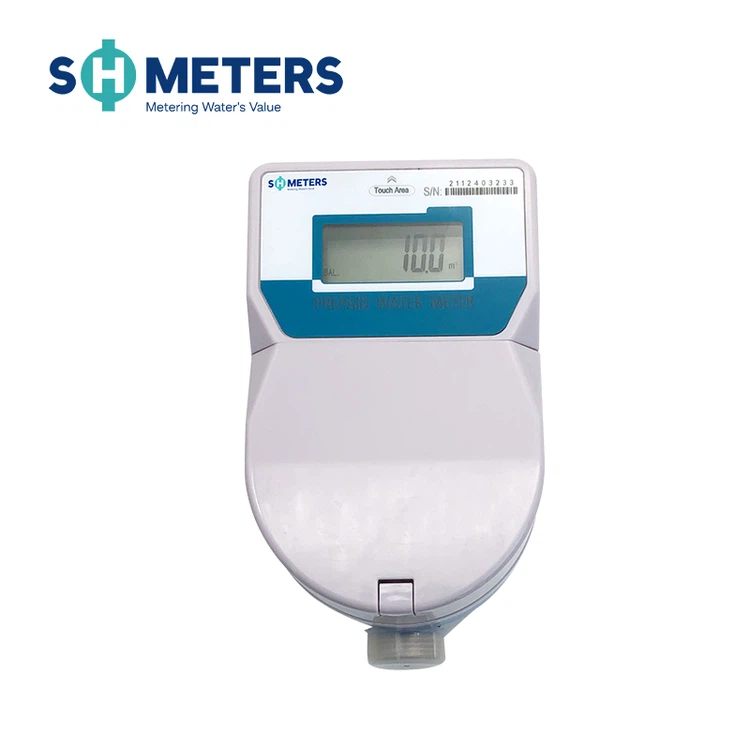

prepaid water meter 6

Standard

Operating condition	PN: 1.0/1.6 Mpa (10/16bar)
The water temperature	cold water up to 50ºC and hot water up to 90ºC
Standard	ISO 4064 Class B
Material	Brass, Iron, Plastic
Size	DN15 - DN40
Reading card	RF IC Card

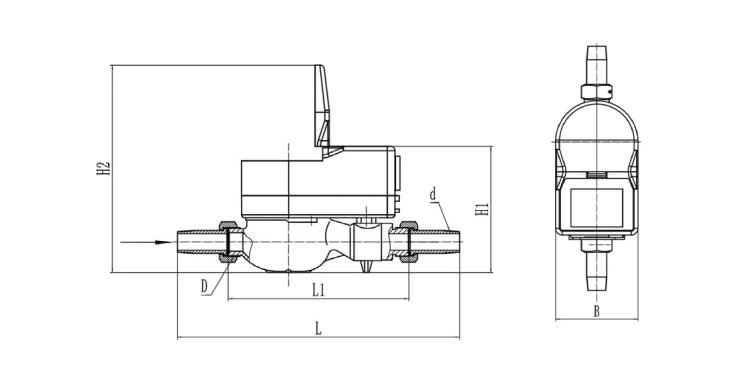

Main Technical Data

Size	Length L	Length L1	Width B	Height H	Connecting Thread	Weight
mm					D	Kg
DN15	258	165	85	115	G3/4	1.5
DN20	300	195	85	115	G1	1.8
DN25	330	225	85	115	G1 1/4	2.2

DN(mm)	Q4 (m3/h)	Q3 (m3/h)	Q2(m3/h)	Q1(m3/h)
	Overload flow-rate	Permanent flow-rate	Transitional flow-rate	Minimum flow-rate
15	3.125	2.5	0.050	0.032
20	5.000	4.0	0.080	0.050
25	7.875	6.3	0.126	0.079
