Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of woltman cold water meter dn50-dn600 removable element in China. If you're going to wholesale high quality woltman cold water meter dn50-dn600 removable element, welcome to get pricelist and quotation from our factory.
The Woltman Cold Water Meter DN50-DN600 is a high-quality water meter designed for measuring cold water flow rates in a wide range of applications. With its durable construction, accurate measurement capabilities, and versatility, this meter is well-suited for various commercial, industrial, and municipal water supply systems.
Key Features
Size Range: The DN50-DN600 size range allows the meter to accommodate different pipe sizes commonly found in water supply systems. This versatility makes it suitable for a wide range of applications, from small commercial buildings to large industrial complexes.
Cold Water Measurement: This meter is specifically designed for measuring cold water flow rates. It accurately measures the volume of water passing through the meter, providing valuable data for billing, monitoring consumption, and managing water resources.
Robust Construction: The Woltman Cold Water Meter is built to withstand harsh environments and ensure long-term durability. The meter body is typically made of high-quality materials such as cast iron or stainless steel, providing resistance to corrosion and ensuring reliable performance over time.
Easy Installation: The meter is designed for easy installation, with flanged connections that simplify the connection to the water supply system. This ease of installation reduces downtime and ensures a smooth integration into existing pipelines.
|

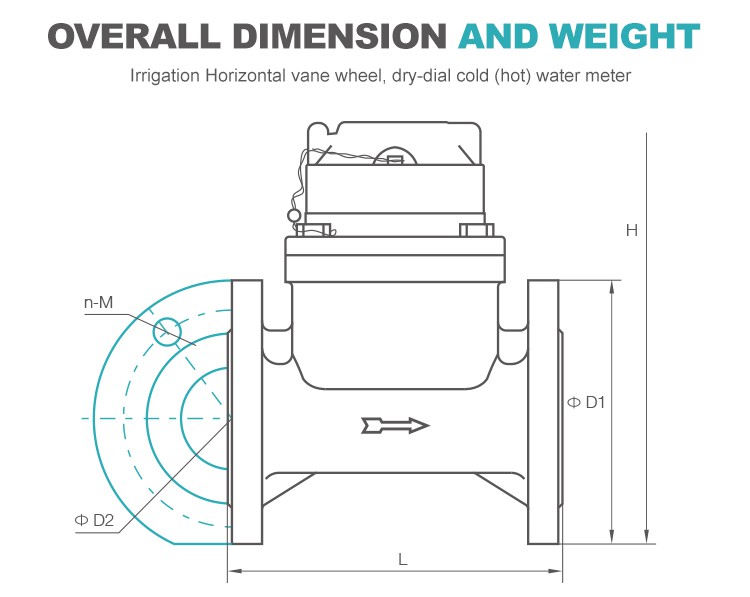

Size |
L Length |
H Height |
Connecting Flange |
||
|
D1 Outside Diameter |
D2 Bolt Circle Diameter |
Connecting Bolts (n-M) |
|||
|
50 |
200 |
214 |
165 |
125 |
4-M16 |
|
65 |
200 |
224 |
185 |
145 |
4-M16 |
|
80 |
225 |
279 |
200 |
160 |
8-M16 |
|
100 |
250 |
289 |
220 |
180 |
8-M16 |
|
125 |
250 |
299 |
250 |
210 |
8-M16 |
|
150 |
300 |
319 |
285 |
240 |
8-M20 |
|
200 |
350 |
346 |
340 |
295 |
8-M20 |
|
12-M20 |
|||||
|
250 |
450 |
434 |
395 |
350 |
12-M20 |
|
405 |
355 |
12-M24 |
|||
|
300 |
500 |
459 |
445 |
400 |
12-M20 |
|
460 |
410 |
12-M24 |
|||
