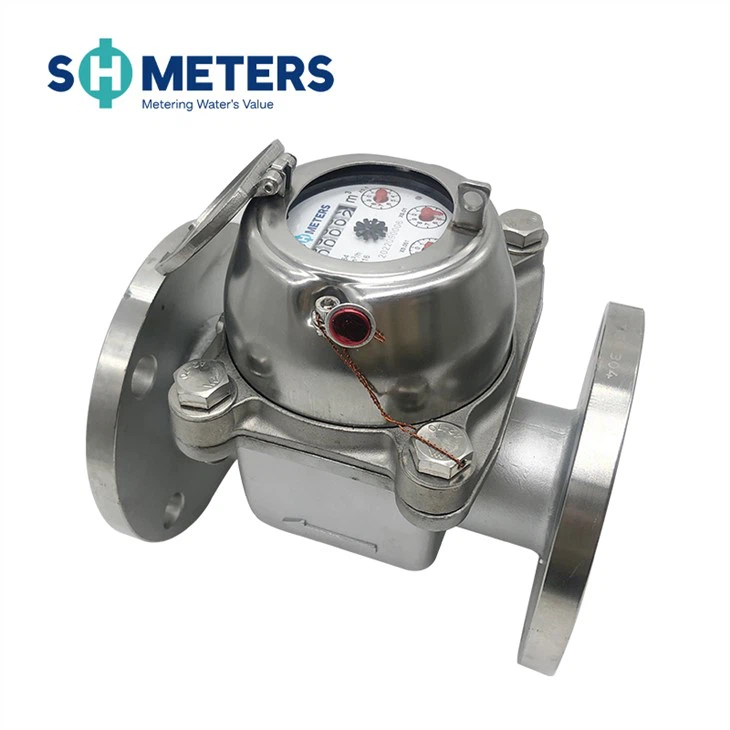

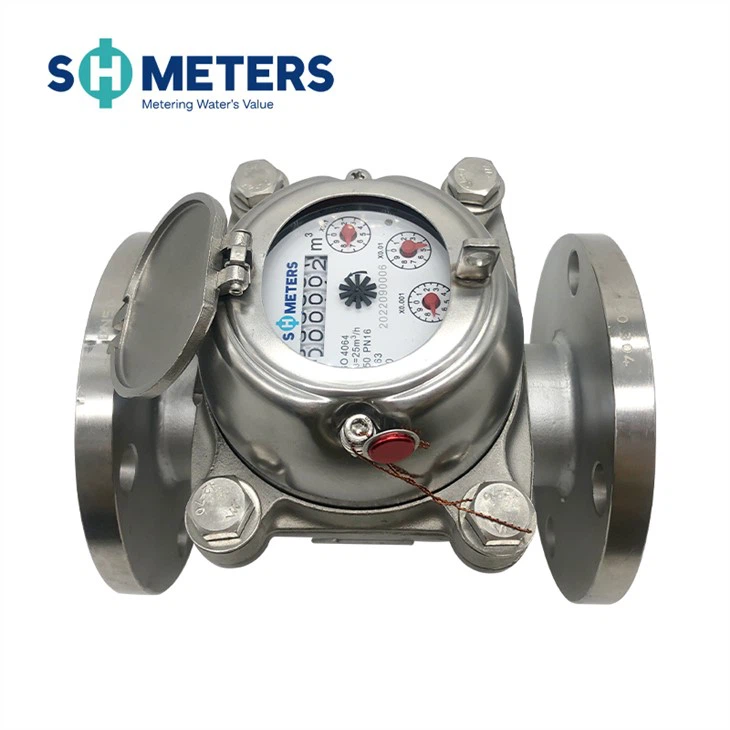

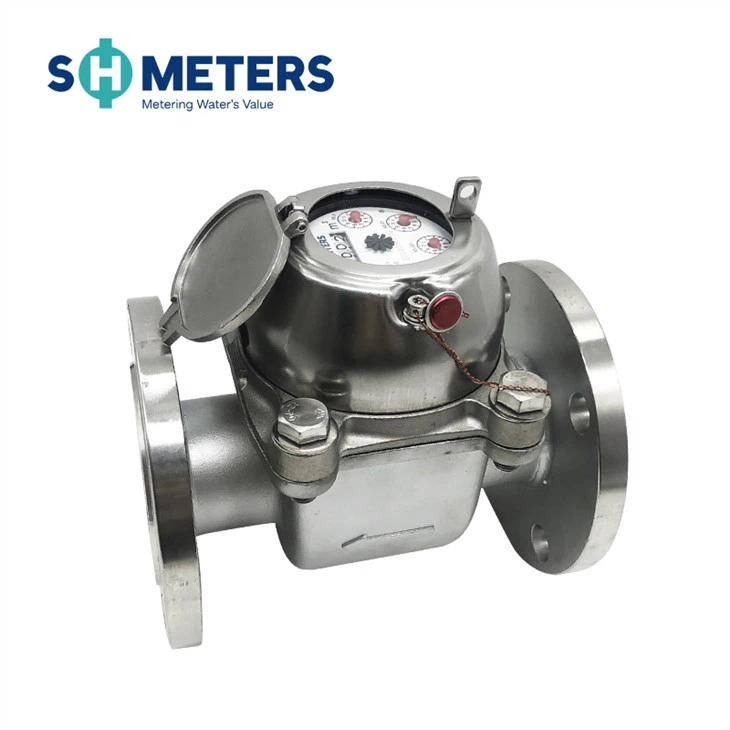

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of stainless steel horizontal woltman water meter in China. If you're going to wholesale high quality stainless steel horizontal woltman water meter, welcome to get pricelist and quotation from our factory.
Horizontal woltman water meter working principle:
Water flows into the water meter inlet after rectification, directly impact on the impeller, impeller clockwise rotation, drive blade shaft, worm, worm wheel drive. The worm wheel central shaft enters into the movement through the support center. Its central gear engages with the gear of the indicating mechanism and drives according to the speed ratio. Continuous measurement starts from the pointer indication on the dial.
Introduction:
Size: DN50-600mm
Accuracy: Class B
Technical data conform to international standard ISO4064
For cold/ hot water
Material: Stainless steel, Iron
Logo: SH-MECH/ Neutral trademark/ client's own logo
Advantages:
The middle partition is made of brass, which has good magnetic transmission effect and is not easy to crack.
The central gear of the transmission part adopts 4 samarium cobalt magnets, and the flow rate exceeds 20%, which is not easy to slip;
