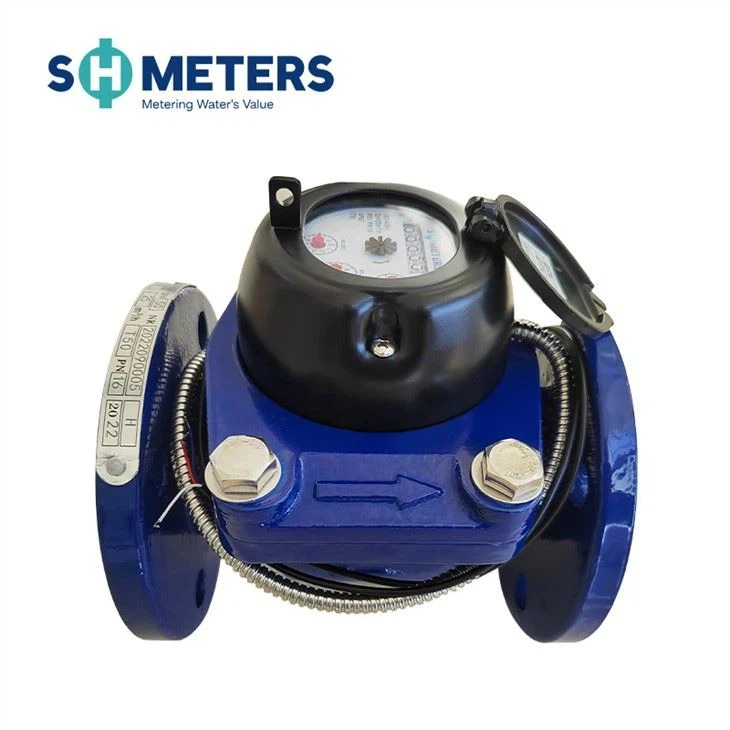

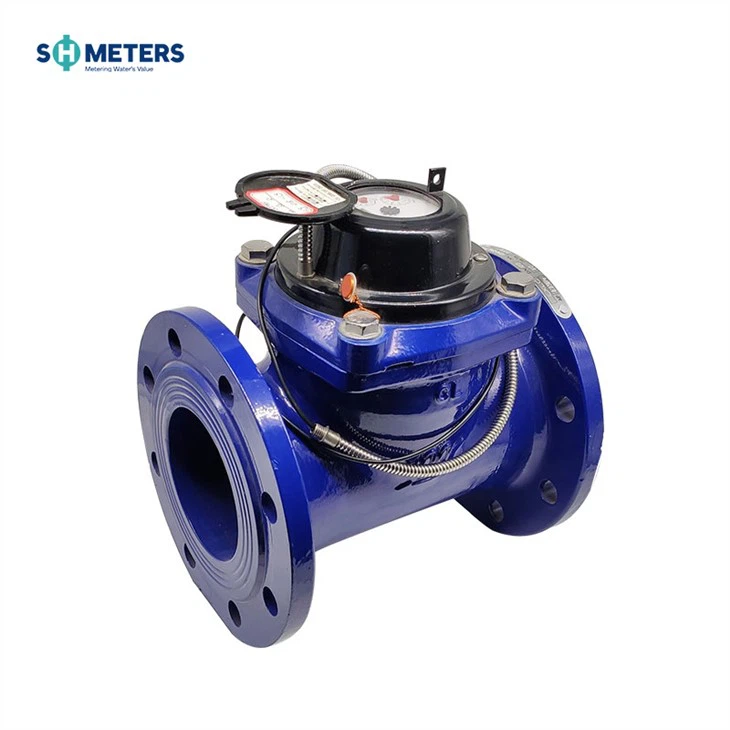

LXXG(R)-50~300(mm)
Irrigation Horizontal vane wheel, dry-dial cold (hot) water meter
Application
Measuring the volume of cold (hot) water passing through the pipeline.water meter is used for irrigation,municipality etc
Features
·Removable element structure, easy installation and maintenance
·Dry-dial, Magnetic drive
·Large flow capacity, small pressure loss
·Resist water hummer and pollution
·Vacuum sealed register ensures the dial keep free from condensation and keep the reading clear in a long term service
·Selected high quality materials for steady and reliable characteristic
·Technical data conform to international standard ISO 4064/ISO9100
·With high accuracy
·Product accessories include connectors, filters, connection accessories, pipe accessories, Flange, filter
Optional Features
·Plastic register, copper register and full glass register
·Accuracy: R=25/20/50
·Size: DN50-DN300
·Cold / Hot water
·Reed switch option
·Flange standard can be choose
·360 degree rotate can be choose
·Cast iron, Ductile iron, stainless steel,GG25,GGG50,SS304,SS316 body can be choose
·Working pressure: PN16/25
·Provide pulse output
Working Condition
·Water temperature: 0.1℃~50℃ (0.1℃~90℃ for hot water meter)
·Water pressure: ≤1.0Mpa (1.6MPa on request)
Maximum Permissible Errors
·In the lower zone from qmin inclusive up to but excluding qt is ±5%
·In the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)
Dimensions
| Type | Size | Length | Height | Connecting Flange | ||
| mm | D1 Outside Diameter | D2 Bolt Circle Diameter | Connecting Bolts(n-M) | |||
| LXXG-50 | 50 | 200 | 253 | 165 | 125 | 4-M16 |
| LXXG-65 | 65 | 200 | 268 | 185 | 145 | 4-M16 |
| LXXG-80 | 80 | 225 | 284 | 200 | 160 | 8-M16 |
| LXXG-100 | 100 | 250 | 295 | 220 | 180 | 8-M16 |
| LXXG-125 | 125 | 250 | 310 | 250 | 210 | 8-M16 |
| LXXG-150 | 150 | 300 | 339 | 285 | 240 | 8-M20 |
| LXXG-200 | 200 | 350 | 382 | 340 | 295 | 8-M20(1.0Mpa) |
| 12-M20(1.6Mpa) | ||||||
| LXXG-250 | 250 | 450 | 438 | 395 | 350 | 12-M20(1.0Mpa) |
| 405 | 355 | 12-M24(1.6Mpa) | ||||
| LXXG-300 | 300 | 500 | 488 | 445 | 400 | 12-M20(1.0Mpa) |
| 460 | 410 | 12-M24(1.6Mpa) | ||||
NOTE: The flange dimension conforms to ISO7005-1:1988 standard. Flange standard can be customized. Order for products of special requirements is also accepted
Pulse Position
| Size | Pulse Position |
| DN50-200 | 100/1000L/Pulse |
| DN250-DN300 | 1000L/Pulse |
Pressure Loss Curve
