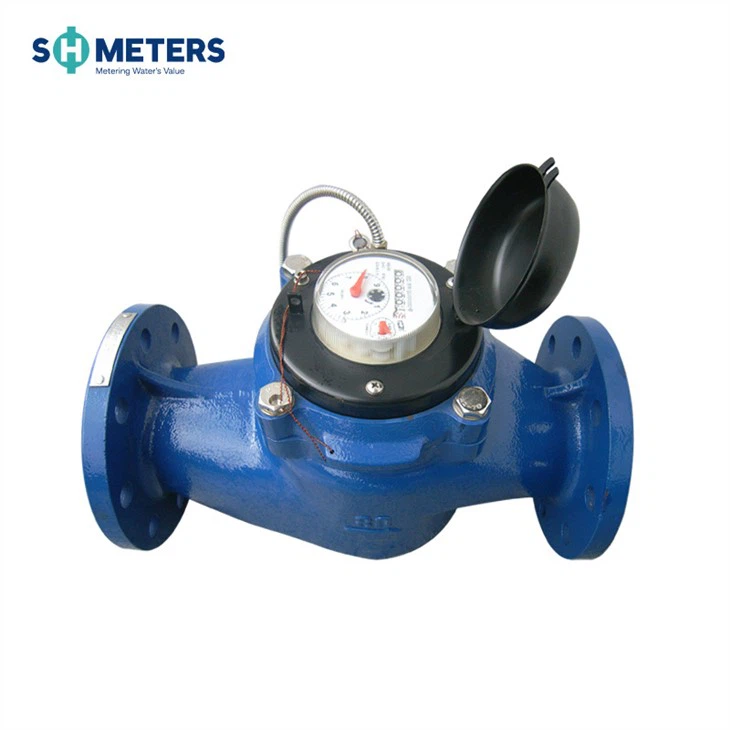

LXCLG(R)-50~200(mm)
Vertical removable element woltman cold (hot) water meter
Features of Vertical screw woltman water meter
* It is a vertical water meter.
* Magnetic drive, lower transmission resistance.
* Magnetic shield, for external magnetic field protection.
* Removable structure, easy maintenance.
* Evacuated and sealed dry dial register and big digits ensures clear reading, long working life.
* The measuring mechanism can be removable from the body for checking, maintaining and replacing, and the body needn't be dismantled from the pipeline.
* Inter-exchangeable parts.
* Low pressure loss.
* Can be equipped with reed switch (register can't rotate).
Standard Compliance
Technical data conforms to ISO 4064 Class C, R160 and R200 standard.
Optional Features
·Accuracy: R=160/class a
·Size: DN50-DN200
·Cold / Hot water
·Reed switch option
·Flange standard can be choose
·360 degree rotate can be choose
·Cast iron, Ductile iron, stainless steel,GG25,GGG50,SS304,SS316 body can be choose.
·Working pressure: PN16/25
·Provide pulse output/rs485 modbus/wired remote/pulse splitter/pulse read display
Working Condition
·Water temperature: 0.1℃~40℃ ( 0.1℃~90℃ for hot water meter)
·Water pressure: ≤1Mpa (1.6MPa for special requirement)
Dimensions
| Type | Length | Height | Connecting Flange | ||
| mm | D1 Otside Diameter | Bolt Circle Diameter | Connecting Bolts(n-M) | ||
| 50 | 280 | 280 | 165 | 125 | 4-M16 |
| 65 | 280 | 280 | 185 | 145 | 4-M16 |
| 80 | 370 | 300 | 200 | 160 | 8-M16 |
| 100 | 370 | 305 | 220 | 180 | 8-M16 |
| 150 | 500 | 500 | 285 | 240 | 8-M20 |
| 200 | 500 | 515 | 340 | 295 | 8-M20 |
NOTE: The flange dimension conforms to ISO7001-2:1988 standard. Flange standard can be customized. Order for products of special requirements
Flow Technique Specification
| Type | Manimum Flow Q4 | Permanent Flow Q3 | Q3/Q1 | Q2/Q1 | Transitional Flow Q2 | Minimun Flow Q1 | Max Reading | Min Reading | |
| Full Glass Register | Plastic Register | ||||||||
| m³/h | m³/h | m³ | |||||||
| 50 | 50 | 40 | 160 | 1.6 | 0.4 | 0.25 | 999999 | 0.0005 | 0.0002 |
| 6.3 | 1.6 | ||||||||
| 80 | 78.8 | 63 | 160 | 1.6 | 0.64 | 0.4 | 999999 | 0.0005 | 0.0002 |
| 6.3 | 2.5 | ||||||||
| 100 | 125 | 100 | 160 | 1.6 | 1 | 0.63 | 999999 | 0.0005 | 0.0002 |
| 6.3 | 3.94 | ||||||||
| 150 | 313 | 250 | 160 | 1.6 | 2.56 | 1.6 | 999999 | 0.0005 | 0.0002 |
| 6.3 | 10 | ||||||||
| 200 | 500 | 400 | 160 | 1.6 | 4 | 2.5 | 999999 | 0.0005 | 0.0002 |
| 6.3 | 16 | ||||||||
The Operation Description Of The Two Reed Switches System
Please see the diagram of the two reed switches system below, the two reed switches woud be operated “ON” OR”OFF” respectively by the magnet fitted to the pointer or gear during its running on the register, but never “ON” at the same time ,unless the out- magnet attackes.
The two reed switches operate two “ON” and two “OFF” in one round of the pointer or the gear means one signal output, this principle prevent the loss or overcounting of the signal output due to the switches joggling or the pipe vibrating, so assures reliability of the signal output.
Warranty
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return to the S.H.Meters.
