Brass Valve Control Single Jet Dry Type Water Meter

Working Condition Water temperature:≤50°c for cold water meter Water temperature:≥90°c for hot water meter Working pressure: ≤ 1.6Mpa Indication Error At low zone is±5% from minimum flow rate(qmin)to transitional flow rate(qt)exclusive boundary At high zone is±2% from transitional flow rate(qt) to overload flow rate(qs)

Send Inquiry

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of brass valve control single jet dry type water meter in China. If you're going to wholesale high quality brass valve control single jet dry type water meter, welcome to get pricelist and quotation from our factory.

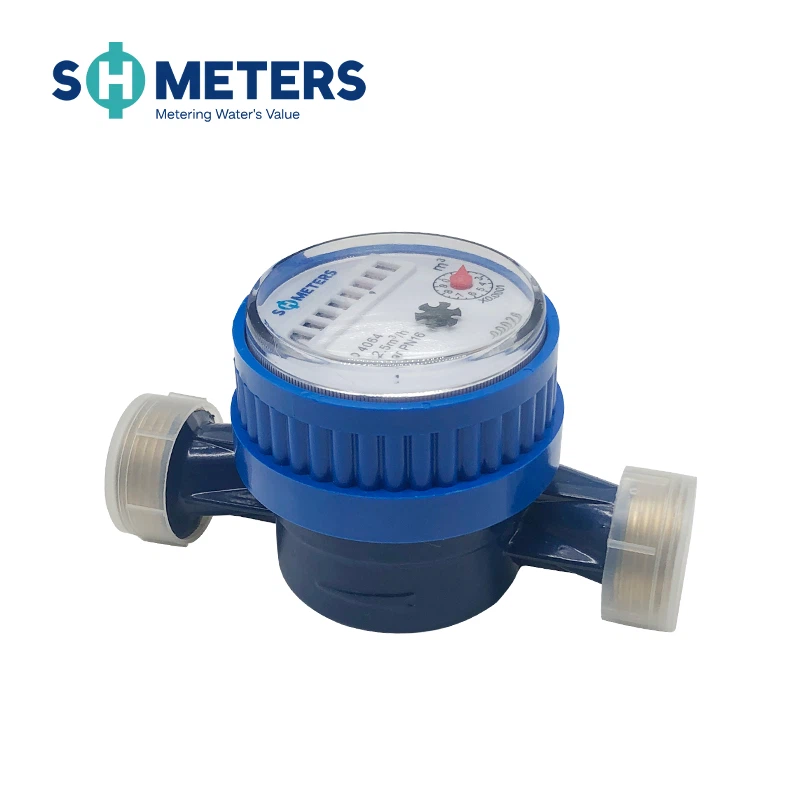

single jet water meter (6)

Features:

1. Dry dial, magmatic drive, resistance to the exterior magnet interference.

2. water meter single jet.

3. Selected high-quality materials for steady and reliable characteristics.

4. Vacuum sealed register, ensure the dial keeps free from fog, and keep reading clear for long-term service.

5. Measuring accuracy can conform to ISO 4064 Class B standards.

6. Inner and outer adjusting for option.

7. Small in size, light in weight.

Working Condition

Water temperature:≤50°c for cold water meter

Water temperature:≥90°c for hot water meter

Working pressure: ≤ 1.6Mpa

Indication Error At low zone is±5% from minimum flow rate(qmin)to transitional flow rate(qt)exclusive boundary At high zone is±2% from transitional flow rate(qt) to overload flow rate(qs)
