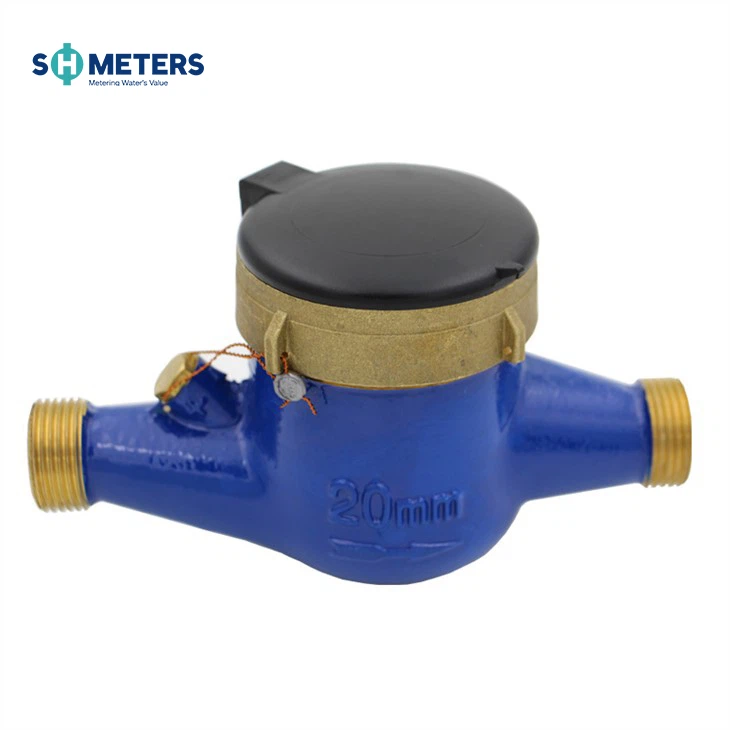

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of 50mm multi jet dry cold water meter in China. If you're going to wholesale high quality 50mm multi jet dry cold water meter, welcome to get pricelist and quotation from our factory.

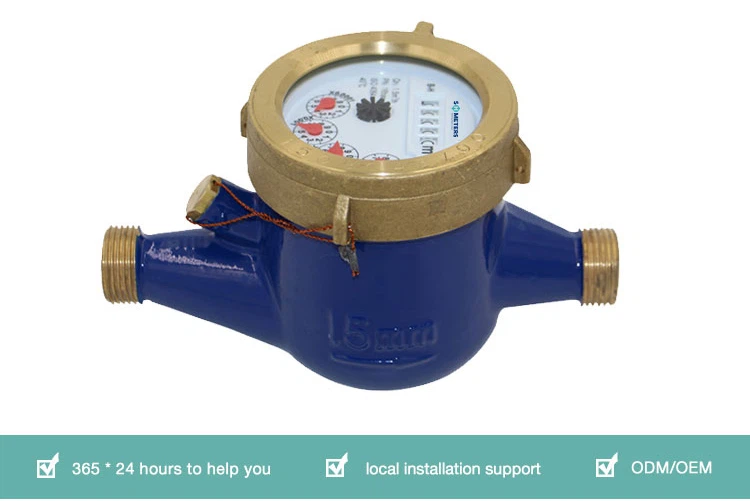

MULTI-JET TYPE
Dry-dial Brass Body Water Meters
Application
Measuring the volume of cold (hot) water passing through the pipeline.Water meter is used for home,commercial,municipality,pipeline
Features
·Magnetic Drive, Lower transmission resistance.
·Magnetic shield, for external magnetic field protection.
·Sealed dry register ensures long time clear reading.
·External regulating device.
Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.
·With high accuracy
·For horizontal use
·Accessories include Strainer, Rotary piston, Connection Widget, connector fitting
Optional Features
·Register sealed type: Dry type; Semi-dry type; Super-dry type.
·Accuracy: R=80 ; 100; 125; 160;class b;class c.
·Size: 15~50mm.
·Cold water.
·Non return valve.
·Reed switch option.
·Several lengths and connections availavle on request.
·Thread end type: BSP / NPT.
·Materials: Brass,Brass interface,Brass material
·Brass working pressure: PN16(16bar)
·Provide pulse output/rs485 modbus/wired remote/pulse splitter/pulse read display
Maximum Permissible Error
·In the lower zone from qmin inclusive up to but excluding qt is ±5%.
·In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for hot water meter.
Standards Compliance
Technical data conform to international standard ISO 4064.
Working Conditions
·Water temperature: 0.1℃~50℃ for cold water meter.
·Water pressure: ≤1.6Mpa (16 bar).
Overall Dimension And Weight
| DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 50 |
| Size(inch) | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2" |
| Length(L) | 165/190 | 190 | 260 | 260 | 300 | 300 | 280 |
| Width(W) | 98 | 98 | 103.5 | 103.5 | 125 | 125 | 160 |
| Height(H) | 116 | 117 | 124 | 124 | 162 | 162 | 187.5 |
| Connecting Thread D | G3/4B | G1B | G11/4B | G11/2B | G2B | G21/2B | Flange end |
| Weight(kgs) | 1.65 | 1.79 | 1.85 | 2.68 | 5.25 | 7.25 |
Pulse Output Option
| Magnet Position | Liter/Pulse |
| *0.0001 | 1 |
| *0.001 | 10 |
| *0.01 | 100 |
| *0.1 | 1000 |
Warranty
All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return to the S.H.Meters.
