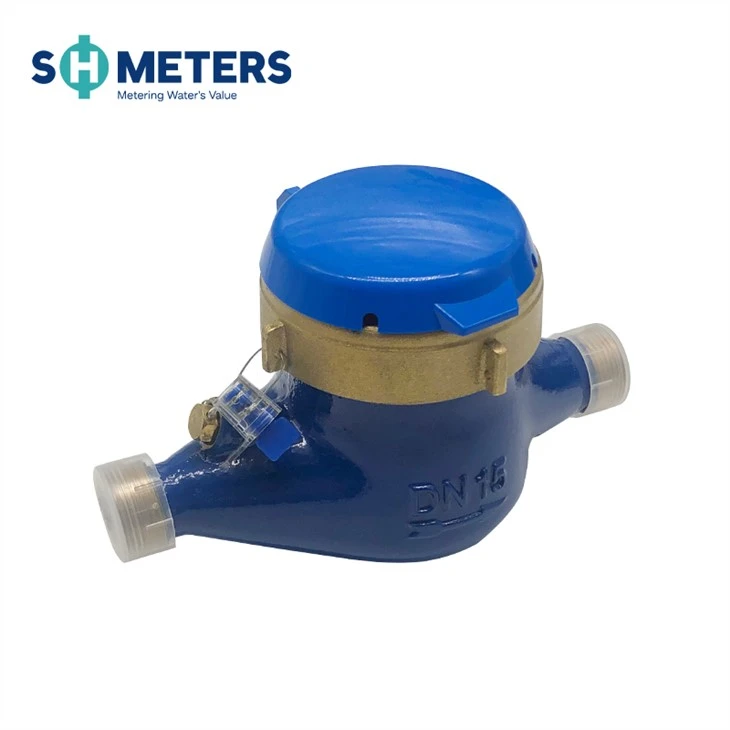

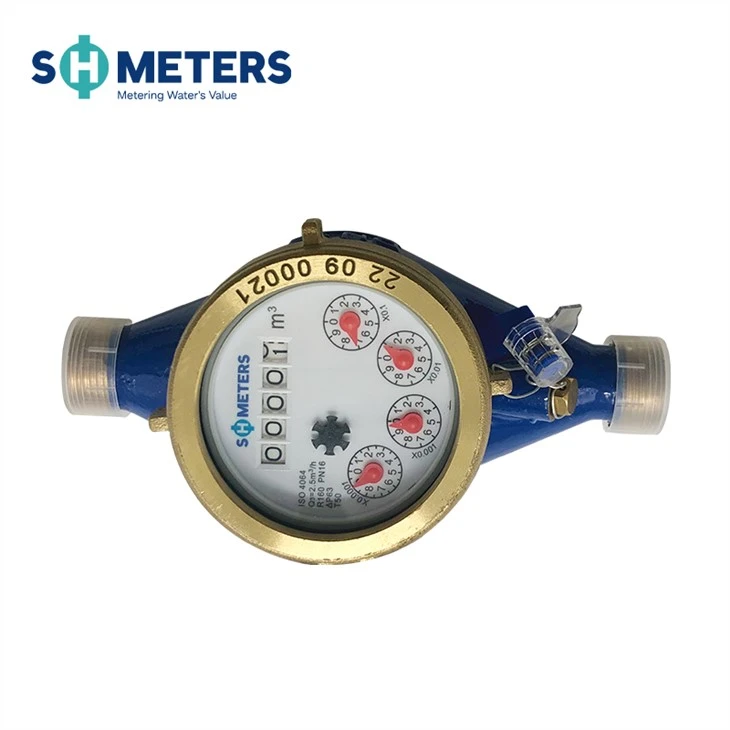

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of 40mm impulse output brass dry dial mulitjet water meter in China. If you're going to wholesale high quality 40mm impulse output brass dry dial mulitjet water meter, welcome to get pricelist and quotation from our factory.
|
Product Name |
Multi Jet Water Meter |
|
Sizes |
15~50mm |
|
Material |
Brass/Plastic/Stainless steel |
|
Temperature |
Cold/Hot water |
|
Connection method |
BSP / NPT |
|
Range ratio |
R=160; 200;class b;class c. |
|
Register sealed type |
Dry type; Semi-dry type; Super-dry type |
|
Application |
Measuring the volume of cold (hot) water passing through the pipeline.Water meter is used for home,commercial,municipality,pipeline |
|
Certificate |
ISO4064, OIML R49 |
|
Sample Available |
Yes |
|
Working Pressure |
PN10/PN16 |
|
Warranty |
ONE YEAR |
|
Customized support |
YES |
|
Payment |
TT, L/C, Paypal, Western Union, Credit Card,Cash and others |
|
Delivery Time |
Usually 15~30 days after confirming order |
|
Loading Port |
Shanghai Port, Qingdao Port |
|
Package |
Inner boxes, cartons, pallets |
|
Place of Origin |
China |
|
Unit |
CBM, Gallon |
|
Accessories |
2pcs coupling, 2pcs coupling nuts and 2pcs washers. |
|

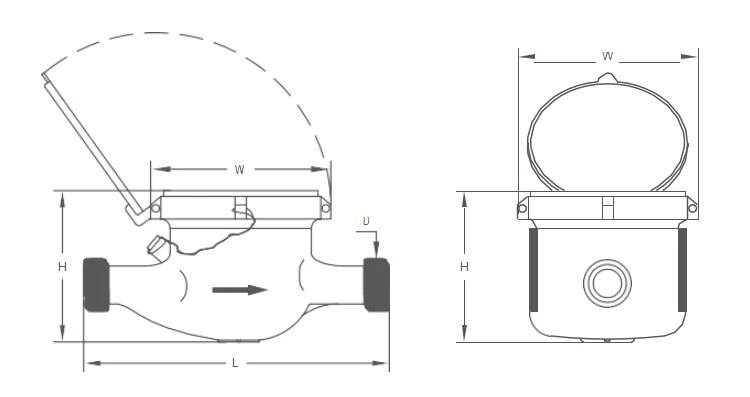

DN(mm) |
15 |
20 |
25 |
32 |
40 |
50 |
50 |
|
Size(inch) |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
2" |
|
Length(L) |
165/190 |
190 |
260 |
260 |
300 |
300 |
280 |
|
Width(W) |
98 |
98 |
103.5 |
103.5 |
125 |
125 |
160 |
|
Height(H) |
116 |
117 |
124 |
124 |
162 |
162 |
187.5 |
|
Connecting Thread D |
G3/4B |
G1B |
G11/4B |
G11/2B |
G2B |
G21/2B |
Flange end |
|
Weight(kgs) |
1.65 |
1.79 |
1.85 |
2.68 |
5.25 |
7.25 |
