Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of class b woltman flange water meter in China. If you're going to wholesale high quality class b woltman flange water meter, welcome to get pricelist and quotation from our factory.

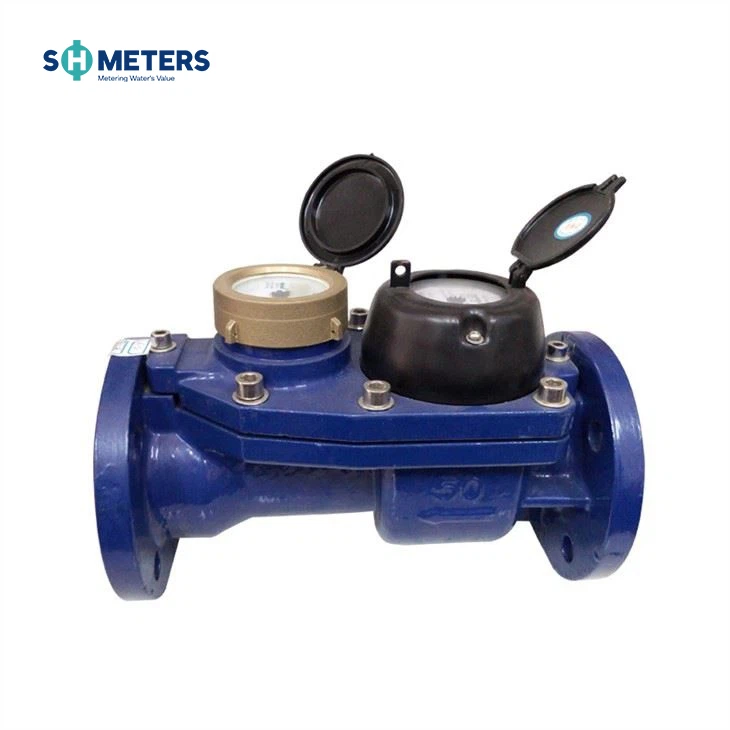

class B PN10/PN16 horizontal woltman flange digital water meter
This type of water meter can be used for a remote reading transmission system as equipped with a built-in sensor.
Application
--Measuring the volume of cold (hot) water passing through the pipeline

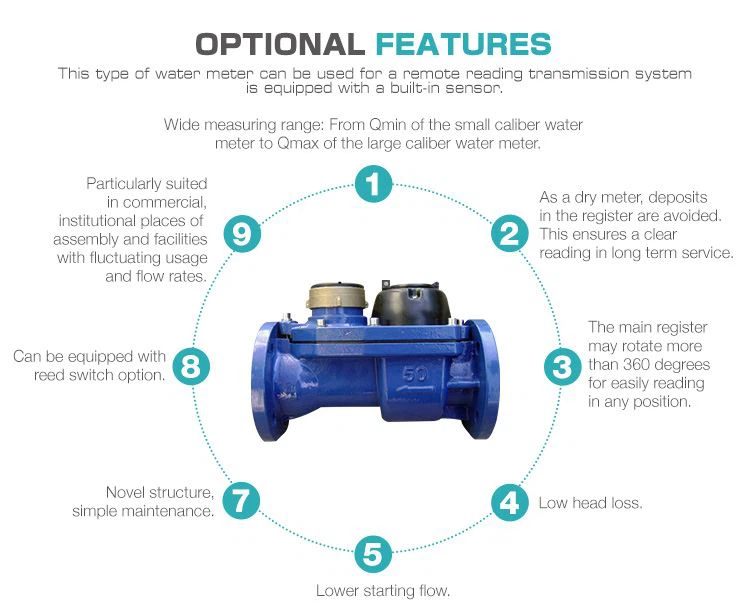

Feature:
--Removable element structure, easy installation, and maintenance register for universal use within this range detachable without Removing the meter from the pipeline;
--Dry-dial, Magnetic drive sensitive action, small pressure loss;
--Vacuum sealed register ensures the dial keep free from fog and Keeps the reading clear in a long-term service;
--Selected high-quality materials for steady & reliable characteristics;
--Technical data conform to international standard ISO 4064.
Working Condition
Water temperature: 0.1℃~40℃ ( 0.1℃~90℃ for hot water meter)
Water pressure: ≤1Mpa (2.5MPa for special requirement)
Maximum Permissible Errors
(1)in the lower zone from qmin inclusive up to but excluding qt is ±5%
(2)in the upper zone from qt inclusive up to and including qs is ±2% (±3% for a hot water meter)
