Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of lorawan smart water meter dn15~25mm brass body in China. If you're going to wholesale high quality lorawan smart water meter dn15~25mm brass body, welcome to get pricelist and quotation from our factory.

Products Description

lorawan-water-meter

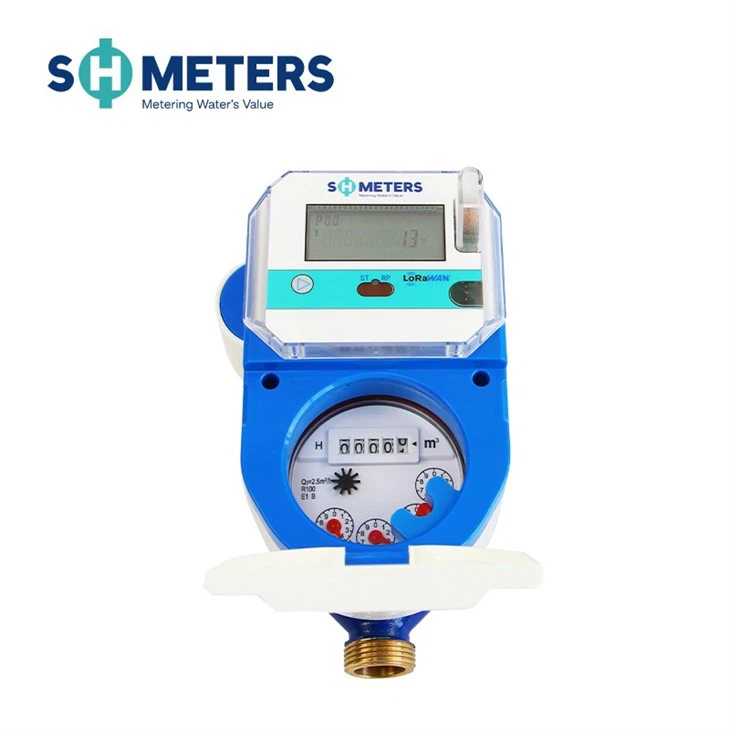

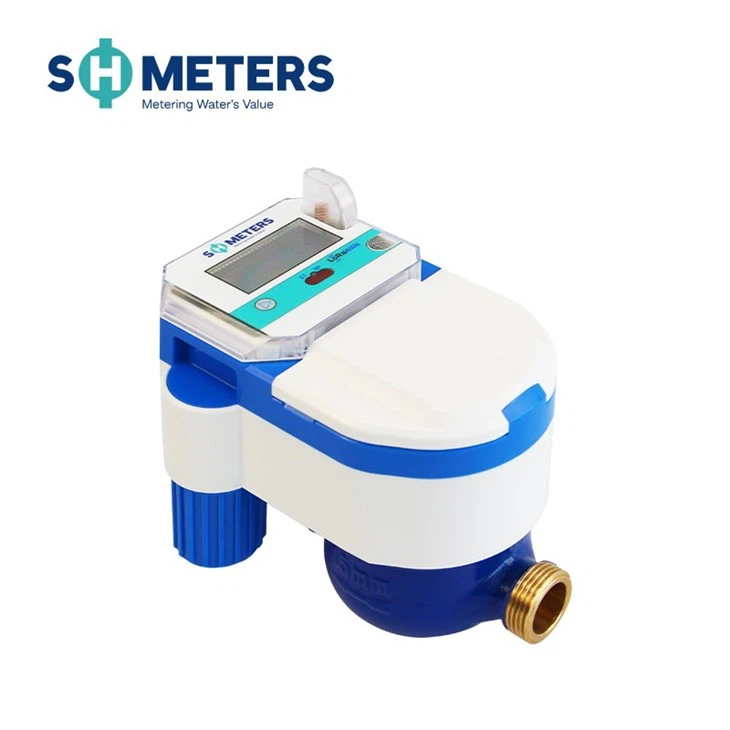

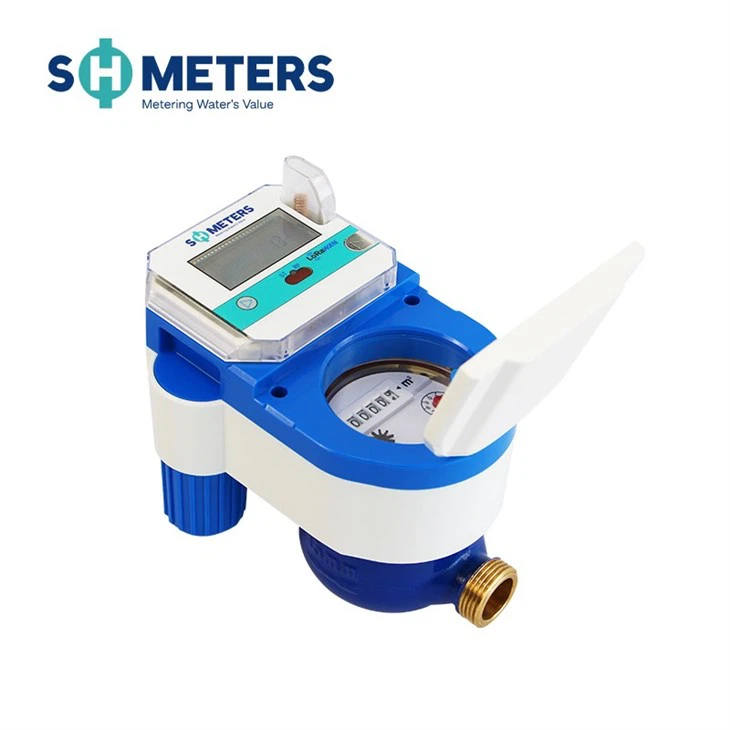

The LoRaWAN water meter is a smart water meter based on LoRaWAN IoT technology. It enables remote meter reading and data transmission through a low-power wide-area network (LPWAN), making it suitable for smart cities, water utility management, large commercial complexes, and other applications.

Products features

Low Power Consumption: Utilizes LoRa modulation technology for extended battery life, making it suitable for long-term deployment.
Long-Range Communication: Wide coverage and strong penetration capability.
Automatic Meter Reading: The real-time or scheduled transmission of water usage data eliminates the need for manual inspection.
Two-Way Communication: Supports remote valve control.

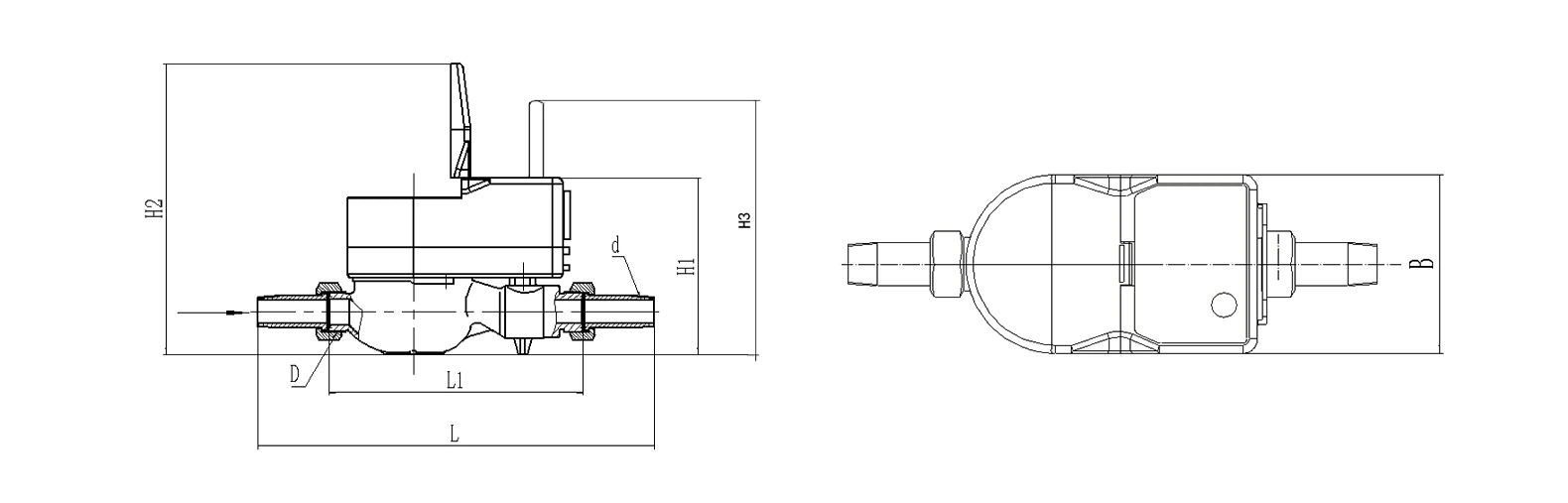

outline dimension drawing

water-lorawan-meter

Nominal Diameter	Length L	Length L1	Width B	Height H1	Height H2	Connecting Thread
mm						d	D
15	258	165	90	112	184	R½	G3/4
20	299	195	90	112	184	R¾	G1B
25	345	225	90	114	186	R1	G1 1/4B

Technical Specifications

Item	Unit	Details
Nominal Diameter	mm	15	20	25
Q3/Q1	R100
Overload Flow Rate (Q4)	m3 / h	3.125	5	7.875
Permanent Flow Rate (Q3)	m3 / h	2.5	4	6.3
Transitional Flow Rate (Q2)	m3 / h	0.04	0.064	0.1
Minimum Flow Rate (Q1)	m3 / h	0.025	0.04	0.063
Maximum Indication	m3	99999
Temperature Class	T30/T50/T90
Pressure Class	PN10/PN16
Pressure Loss Class	0.063Mpa
Electromagnetic Environment Class	E2
Environmental Classification	O
Protection Class	IP68
Installation Direction	H
Sensitivity to Irregularity Velpcity Field Class	U10/D5
Battery Lifetime	≥6 years
