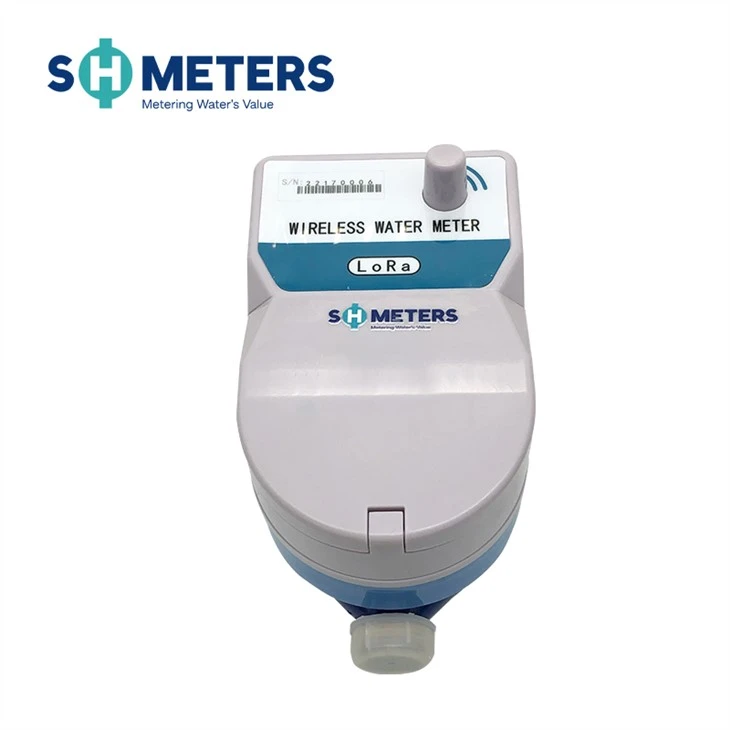

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of ip68 dry dial wireless water meter lora water meters in China. If you're going to wholesale high quality ip68 dry dial wireless water meter lora water meters, welcome to get pricelist and quotation from our factory.

lora water meter (1)

AMI SYSTEM INTRODUCTION SIMPLE IS SMART…..

System structure diagram as follows
· Server send commands to the data concentrator through network;
· Concentrator transforms the received commands into radio signal and send the signal to the water meters;
· Water meters respond and execute the commands accordingly;
· Water meters deliver the result or data back to the management center as per the original route after the actions finished.

Service
· Quality Gurantee: Water meter for 1 year;
· Support install guide & test in site;
· Date sheet can be sent to other management system easily.

Compoment

Lora water meter,concentrator,Cloudy platform,Reapter and handle reading tools

Brief introduction

LoRa wireless water meter adopts advanced wireless transmission technology, which transforms information of conventional mechanical water meter into electrical signal that stored by micro-electronics control circuit.

It is able to automatically read the metering data via wireless remote network and control the close and open of the valveLoRa wireless water meter adopts advanced wireless transmission technology, which transforms information of conventional mechanical water meter into electrical signal that stored by micro-electronics control circuit.

It is able to automatically read the metering data via wireless remote network and control the close and open of the valve

Features

·Our LoRa water meter has high accuracy

·Type:dry dia,screw,seal
·Scenes to be used:garden,commercial,general household,residential building,municipality
·Waterproof level:IP68
·Technical data conform to international standard ISO 4064.
·Accuracy:class b

Benefits of Lora Module For Water Meter

·With anti-magnetic interference function.

·With the battery voltage detection function.

·Module with automatic data storage function when power down and up, which assuring the data won’t lost when power down.

·With 7 layers 8 types of price to support market demand.

·The joint of the RF module and the base meter uses the integrated structure with built-in antenna, which reducing the damage of antenna during the process of installation;

·Using LoRa transfer mode can drastically extend the communication distance.

·The module use of deep dormancy time design is able to completely close the wireless module during the deep dormancy time period ( not in operation during night time ), which drastically help to reduce power dissipation;

·Whole circuit board uses of ultra low power consumption design, power suuply by high capacity lithium battery and battery life over 6 years;

·Set up the metering devices by the handset reader and check the original data and data from meter reading;

·AMI function that supports the system is able to control of valve opening or closing on real-time.

Outline dimensional drawing

Outline dimension

Nominal Diameter	Length L	Length L1	WidthB	Height H1	Height H2	Connecting Thread
mm						d	D
15	258	165	90	112	184	R1/2	G3/4B
20	299	195	90	112	184	R3/4	G1B
25	345	225	90	114	186	R1	G1 1/4B

Technical parameter

Item	Unit	Details
Nominal diameter	mm	15	20	25
Q3/Q1	R80
Overlolad flow(Q4)	m³/h	3.125	5	7.875
Nominal flow(Q3)	m³/h	2.5	4	6.3
Transitional flow(Q2)	m³/h	0.05	0.08	0.13
Minimum flow(Q1)	m³/h	0.031	0.05	0.08
Accuracy class	ClassB
Maximum indication	m³		999999.9
Temperature class	T30,T90
Pressure class	MAP10
Pressure loss class	ΔP63
Flow prefile sensitivity class	U10/D5
Environmental class	Class B
Electromagnetic environmrnt class	E1
Static current	uA		<10
