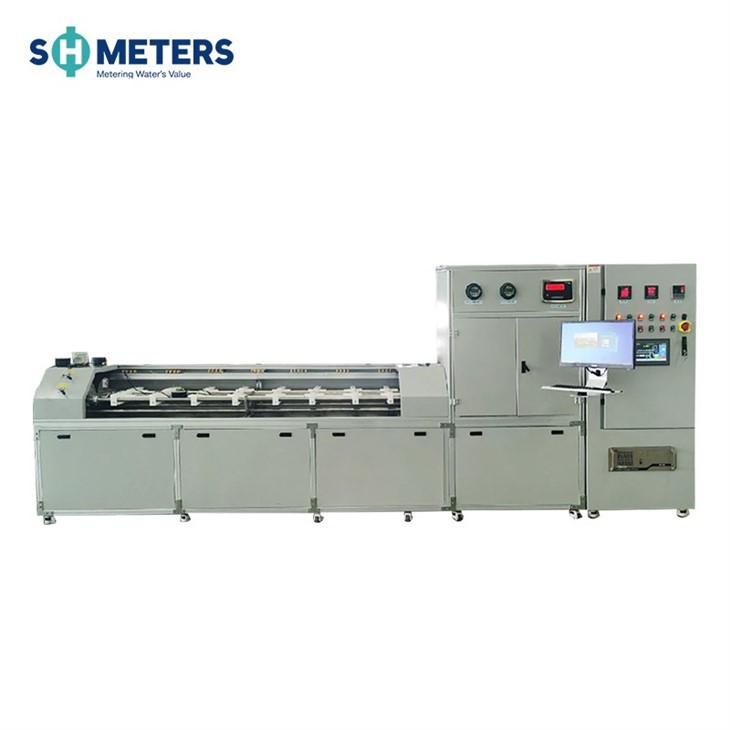

Fully Automatic Water Meter Test Benches For Ultrasonic Water Meter

·With Piston System.
·Support min flowrate 2L/H.
·Suitable for manufacturer & professional lab use.

Send Inquiry

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of fully automatic water meter test benches for ultrasonic water meter in China. If you're going to wholesale high quality fully automatic water meter test benches for ultrasonic water meter, welcome to get pricelist and quotation from our factory.

The main frame of the testing table is made of stainless steel, which is beautiful in appearance and durable. The measurement and data acquisition parts are imported parts, with high precision and stable performance.

Applicable occasions for water meter automatic calibration and detection platform:

--Water meter testing work of relevant measurement and testing departments;

--Production and calibration of water meters for water meter manufacturers;

Main standard device	Piston + electronic scale
Flow range	0.002-8[m³/h]
Water pump	69H/8 m³/h
Working pressure	10[bar]
Length of the tested meter	DN15 (165mm) 14 pcs
	DN20(195mm) 12 pcs
	DN25 (225mm) 10 pcs
Piston specifications	Volume 22L/resolution 0.036ml/pressure PN16/Panasonic servo drive
Electronic scale	150KG/6000E
Weighing container	120L
Electromagnetic flowmeter	AXG/DN2.5+DN25, Japan Commutator DN25
Commutator	DN25
Temperature sensor	PT100, accuracy class A, installed at the inlet and outlet
Pressure sensor	accuracy of 0.5%, installed at the inlet and outlet
Test method	start-stop method + commutator method
Standard signal interface	ulse+MBUS+RS485
Equipment power	10KW
Hydropower	The user provides AC400V three-phase five-wire power supply/pure water/6bar pressure
