Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of water meter body in China. If you're going to wholesale high quality water meter body, welcome to get pricelist and quotation from our factory.

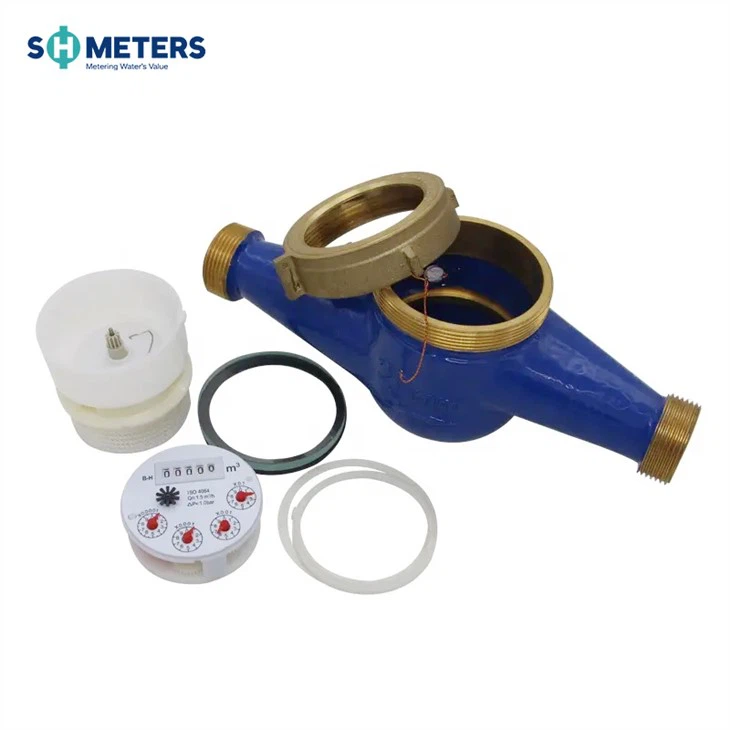

1. Product name: Brass Water Meter Body / Brass Body of Water Meter / Brass Water Meter Body.
2. Material: Brass (Cu≥58% Zn≤39% Pb≤3%) / cast iron/plastic
3. Manufacturing technique: Gravity casting / Sand casting.
4. Analytical equipment: Direct-reading spectrometer.
5. Standard: According to customer's drawings (OEM and design).
6. Size: 15-50mm for multi jet, 15-25mm for the single jet.
Product Size Table
DN | mm | 15 | 20 | 20 | 20 | 25 | 25 |
inch | 1/2" | 3/4" | 3/4" | 3/4" | 1" | 1" | |
L2 (without connect coupling) | mm | 165/170 | 190 | 190 | 220 | 175 | 175/260 |
L1 (with connect coupling) | mm | 245/250 | 286 | 286 | 316 | 293 | 293/378 |
D1 | inch | 3/4" | 1" | 1" | 1" | 1 1/4" | 1 1/4" |
D2 | inch | 1/2" | 3/4" | 3/4" | 3/4" | 1" | 1" |
B | mm | 95 | 95 | 95 | 95 | 95 | 95 |
H1 kx | mm | 120 | 120 | 120 | 120 | 120 | 120 |
H1 mx | mm | 125 | 125 | 125 | 125 | 125 | 125 |
H2 | mm | ~35 | ~25 | ~25 | ~35 | ~35 | ~35 |
H3 | mm | 15 | 15 | 15 | 15 | 15 | 15 |
