Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of ultrasonic smart water meter dn 20mm in China. If you're going to wholesale high quality ultrasonic smart water meter dn 20mm, welcome to get pricelist and quotation from our factory.
Product Description

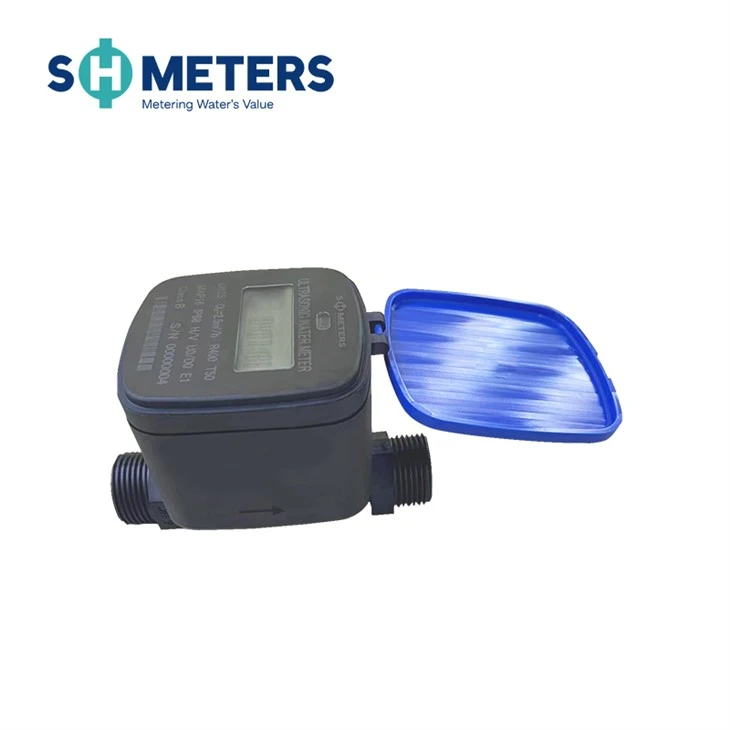

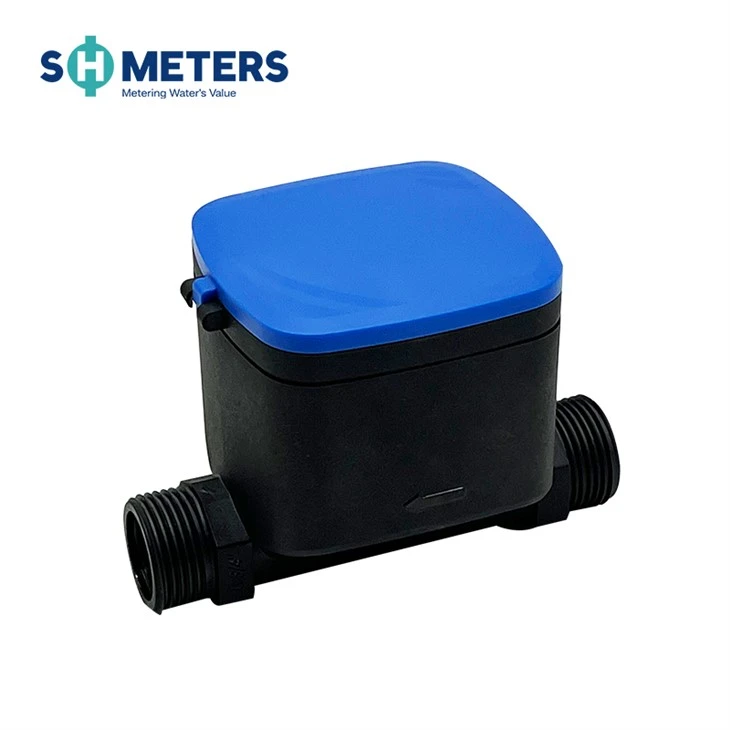

The ultrasonic water meter(7310) is a modern intelligent instrument that uses ultrasonic technology to measure water flow. It precisely measures the speed and flow rate of water by emitting and receiving ultrasonic signals.
Product Features
1. There are no mechanical friction components, which reduces wear and tear.
2. The stable and reliable design ensures long-term efficient operation of the device.
3. It can still accurately measure water usage at a low flow rate of 4L/h.
4. It can accurately record the total water consumption. Record total volume as small as 1mL.
5. The 9-digit LCD screen provides real-time data display.
6. With a low-power circuit design, the device achieves a lifespan of up to 12 years.
7. Ready for AMR with wired and wireless communication technologies.
8. The bidirectional metering function allows measurement of both forward and reverse flow.
9. The maximum displayable water volume is 9999 m³ (higher values can be set).
10. Provides higher precision in water flow measurement.
outline Dimension
LCD Indications and Alarms
1. Signal strength 2. Fehler /Alarm 3. Water temperature 4. Time
5. Water flow indication 6. Time 7. Verification status 8. Sensor status
9. Battery voltage 10. Unit 11. Flow direction
Products Parameters
| Nominal Diameter | mm | 20 | |
| Q3/Q1 | R250 | R400 | |
| Overload Flow Rate(Q4) |
m3/h
|
5 | |
| Nominal Flow Rate(Q3) |
m3/h
|
4 | |
| Transitional Flow Rate(Q2) | l/h | 3.2 | 5 |
| Min Flow Rate(Q1) | l/h | 2 | 3.125 |
| Starting Flow Rate | l/h | 5 | |
| Accuracy Class | Class 2 | ||
| Temperature Class | T50 | ||
| Maximum Admissible Pressure |
PN16 | ||
| Pressure Loss Classes | 0.25bar | ||
| Bectromagnetic Environmental Cass |
E1 | ||
| Environmental Classification | O | ||
| Protection Class | IP68 | ||
| Installation Direction | Any angle | ||
| Flow Profile Sensitivity Class | U5/D3 | ||
| Battery Lifetime | ＞8 years | ||
| Display | LCD, 9 digits + additional characters | ||
| Communication Interface | RS485/LoRa/LoRawan | ||
Installation
Due to the unique structure of the ultrasonic water meter, the pipeline must be filled with water when installing the meter. If there are air bubbles in the pipe section, they may affect the accuracy of the water meter's measurements.
FAQ
Q: Can the ultrasonic water meter measure other liquids?
Q: Whether the ultrasonic water meter RS485 can be connected to 24v DC, do not understand where this line is connected.
After-sales support
