Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of dn15 ultrasonic water meter smart domestic water meter dn20mm in China. If you're going to wholesale high quality dn15 ultrasonic water meter smart domestic water meter dn20mm, welcome to get pricelist and quotation from our factory.
Product Description

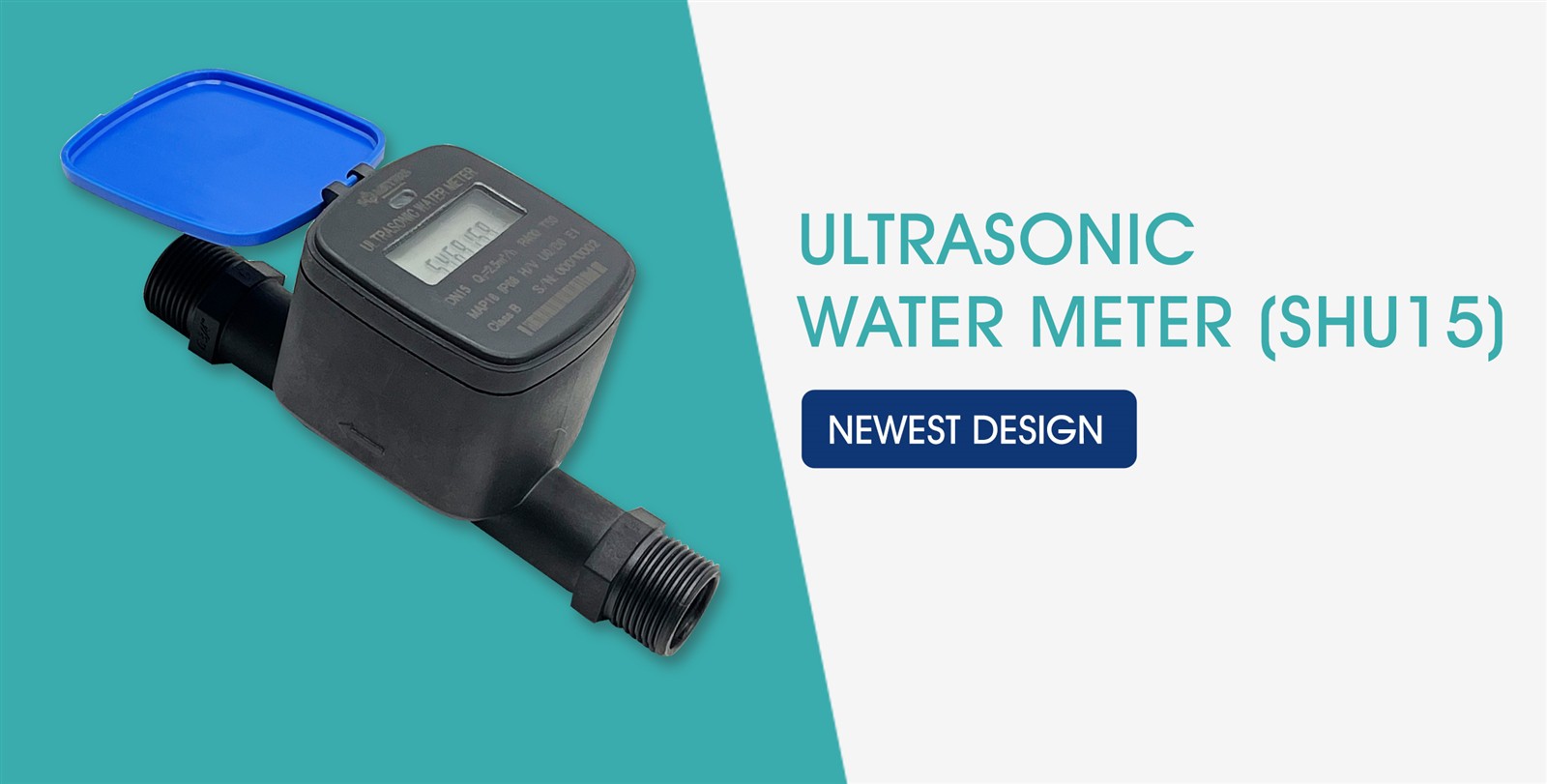

The ultrasonic water meter(SHU15) is a metering instrument that continuously measures, records, and displays the volume of water flowing through the sensor by use of the ultrasonic time difference method.
technical parameter
- Q3: 2.5m³
- Range ratio: R400
- Accuracy class: Class2
- Temperature Rating: T50
- Pressure Rating: PN16
- Pressure loss rating: Δp25
- Protection class: IP68
- Upstream flow velocity field sensitivity level: U0
- Downstream flow velocity field sensitivity level: D0
- Electromagnetic environment grade: E1
- Installation environment rating: 0
- Installation direction: Any angle
- Supporting forward and reverse metering
- Minimum display unit: 1ml
- Maximum display unit 9999m³ (higher values can be set)
- Battery life: ≥10 years (default 26500 battery, optional 26500+18505 dual batteries, Life span ≥14 years)
certificate

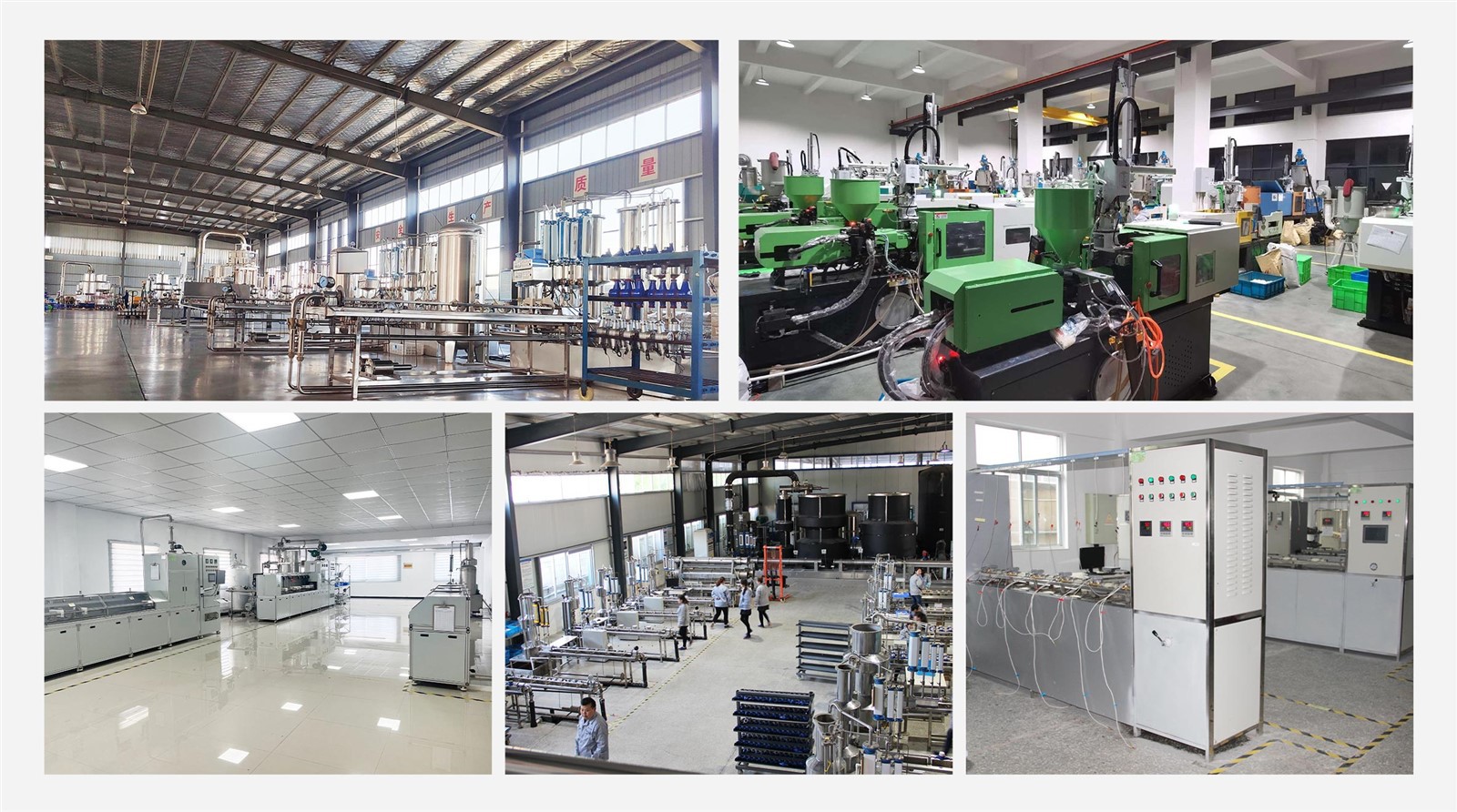

factory

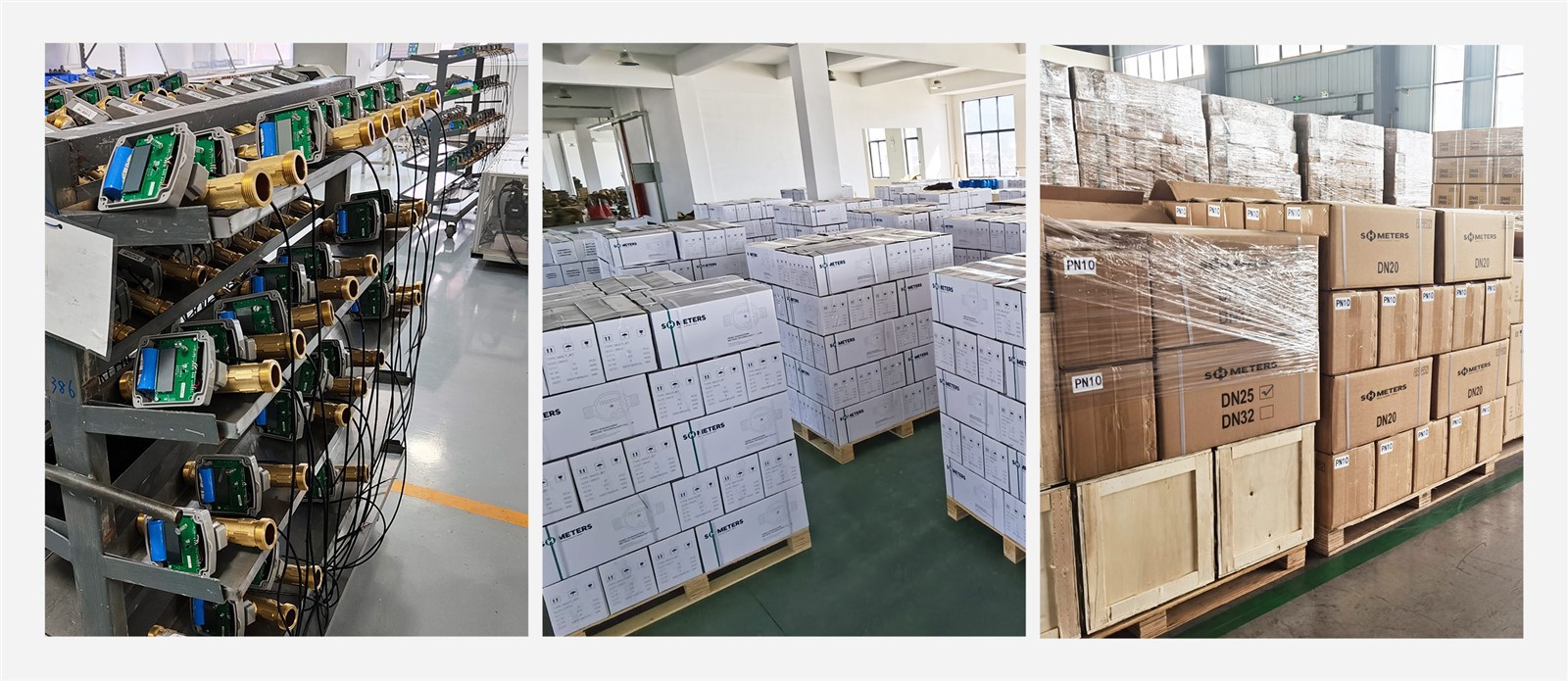

packaging and inventory
our client
