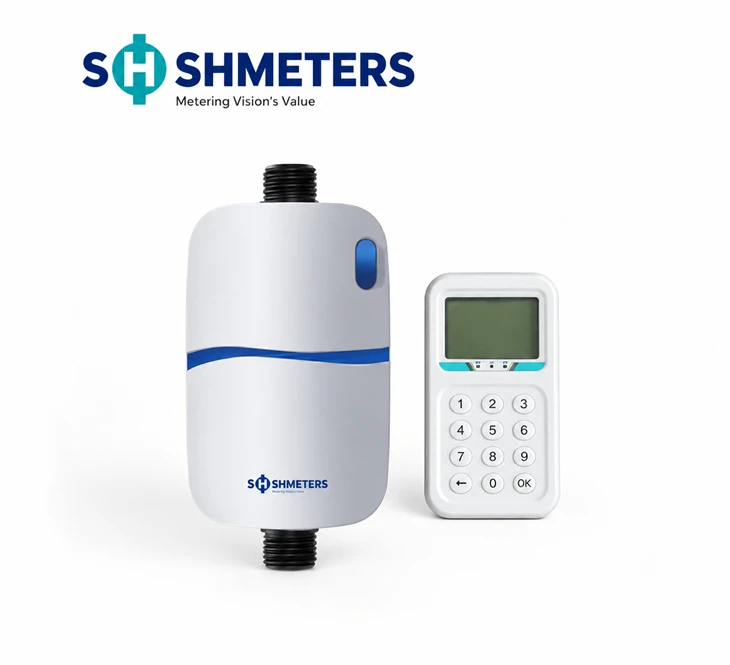

STS Ultrasonic Water Meter Description
The STS ultrasonic water meter is a high-precision electronic prepaid water meter. It adopts the ultrasonic time-difference method to continuously measure, record, and display the volume of water passing through the sensor.
It meets the stringent requirements of water utilities for accurate water consumption measurement. The STS ultrasonic water meter is compatible with IoT transmission technologies, enabling water authorities to access various customized solutions. It is widely used in prepaid water metering for households, apartments, and commercial premises.
STS ultrasonic water meter features
- Ultrasonic STS water meter has no moving parts inside, ensuring no wear and maintaining accuracy throughout its service life.
- water meter supports a 9-digit LCD, with a minimum measurement unit of milliliters (mL).
- Ultrasonic STS water meter complies with the functional requirements of the STS protocol (IEC-62051).
- It allows handheld devices to send encrypted commands to the meter, with a maximum communication distance of 300 meters.
- The water meter supports vertical, horizontal, or inclined installation positions and is equipped with anti-tampering functions.
- It supports reverse flow detection.
- STS ultrasonic water meter also supports empty pipe detection.
- With an IP68 protection rating, it is suitable for various harsh installation environments.
STS ultrasonic water meter parameters
|
Nominal Diameter
|
mm
|
15 | 20 | 25 | |||
|
Q3/Q1
|
R250/R400(Optional)
|
||||||
|
Overload Flow Rate (Q4)
|
m³/h
|
3.125 | 5 | 7.875 | |||
|
Nominal Flow Rate (Q3)
|
m³/h | 2.5 | 4 | 6.3 | |||
|
Transitional Flow Rate (Q2)
|
l/h
|
16 | 10 | 25.6 | 16 | 40.32 | 25.2 |
|
Min Flow Rate (Q1)
|
l/h
|
10 | 6.25 | 16 | 10 | 25.2 | 15.57 |
|
Pressure Loss Classes
|
l
|
△P40
|
△P40
|
△P25
|
|||
|
Temperature Class
|
T30/T50
|
||||||
|
Maximum Admissible Pressure
|
PN16(232psi)
|
||||||
|
Electromagnetic Environmental Class
|
E1 | ||||||
|
Protection Class
|
IP68 | ||||||
|
Installation Direction
|
Any Angle and position
|
||||||
|
Flow Profile Sensitivity Class
|
U5/D3
|
||||||
|
Battery Lifetime
|
≥6 years
|
||||||
STS ultrasonic water meter communication method
why s.h.meters

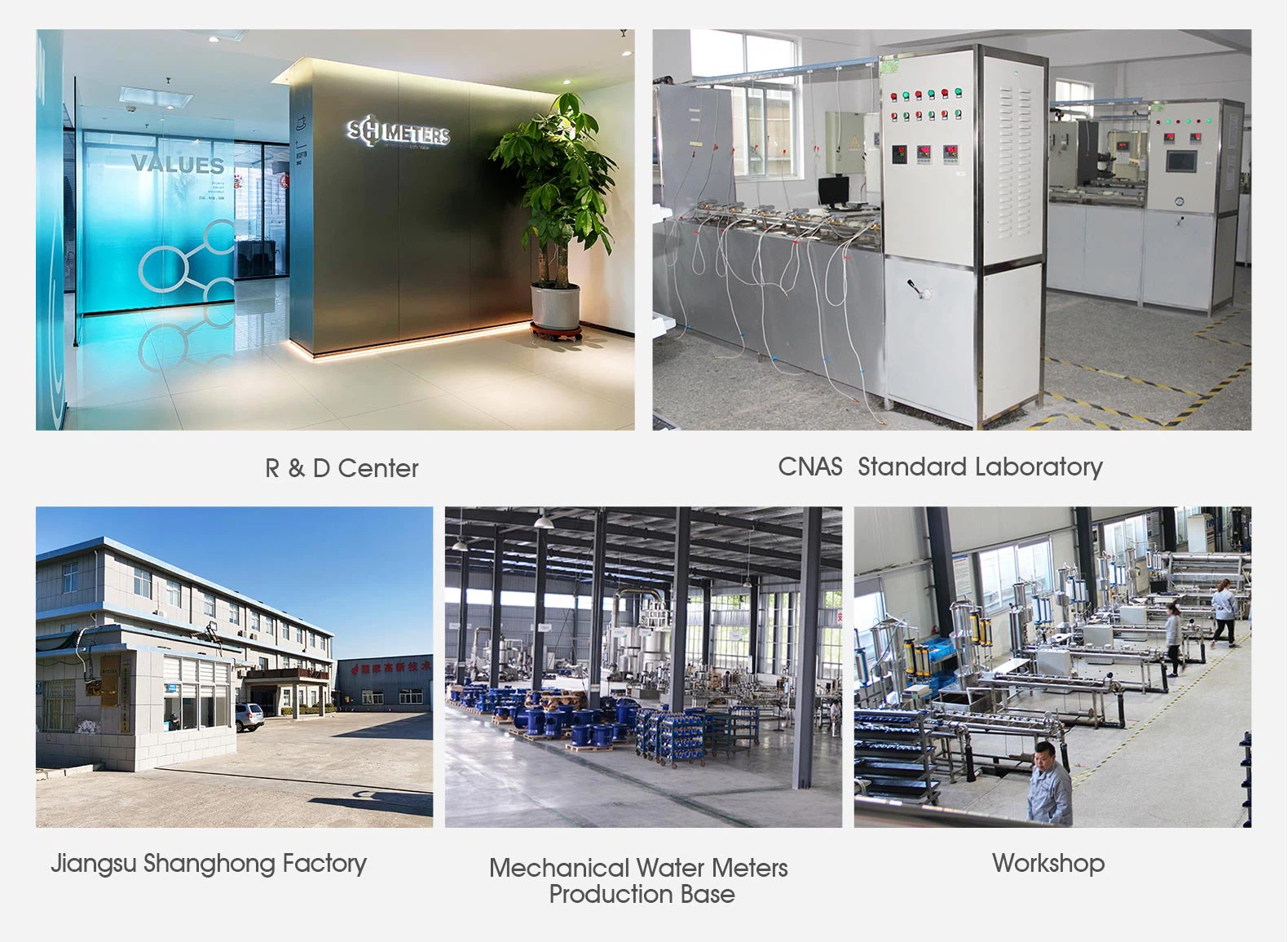

R&D Center and Production Base
