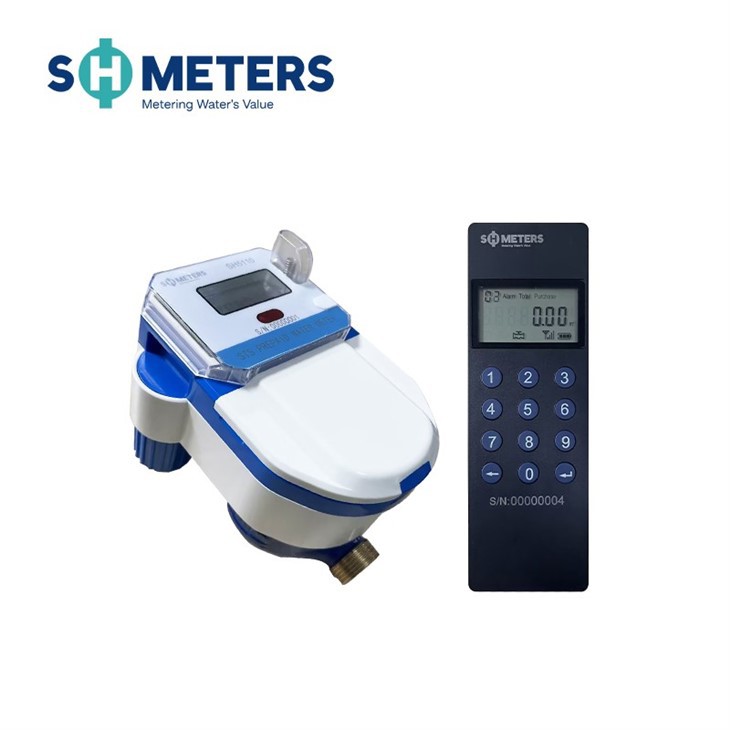

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of sts prepayment water meter integrated keypad water meter in China. If you're going to wholesale high quality sts prepayment water meter integrated keypad water meter, welcome to get pricelist and quotation from our factory.
Product Description
The meter supports the STS prepaid protocol. Tokens can be issued to the STS meter through the CIU, infrared unit, or meter keyboard to realize prepaid recharge, switch valve, and other functions. At the same time, the concentrator supports LORA wireless automatic communication between the meters during meter readings. Networking function, the network level can reach up to level 3, which greatly improves the receiving sensitivity.
The water meter has the characteristics of accurate billing, convenient use, and efficient management.
Product features
- Ladder water prices can be set (not less than 10 steps), can store 50 TIDs for easy query,
- Monthly water data can be stored and recorded for 10 years, has holiday water, overdraft, insufficient balance alarms, valve control, Token code can reset the water meter, etc. Function;
- CIU uses LoRa wireless to issue Token codes, and the communication distance in residential areas is not less than 300 meters;
- CIU and user STS water meters can be paired one-to-one or the pairing can be changed;
- LCD function display facilitates users to read meter data and recharge information.
- Independent battery compartment, the battery is easy to replace
- Mechanical and electrical separation design makes after-sales service more convenient
Product parameter
- Q3: 2.5m³
- Turndown ratio: R100
- Accuracy level: Class2
- Temperature grade: T50
- Pressure level: PN16
- Pressure loss level: Δp63
- Protection level: IP68
- Electromagnetic environment level: E1
- Installation environment level: O
- Installation direction: H
- Battery life: ≥6 years (26500 batteries)
basic application function
- Non-magnetic/magnetoresistive metering, use commands to switch.
- The number of steps that can be set is no less than 10.
- Through the communication tool, the meter can be initialized (reset the water meter), and the meter serial number, meter base, working frequency, network ID, recharge water volume, step water volume, overdraft volume, alarm information, hoarding volume, holiday water consumption, Flow information, valve control, pulse equivalent, date rollover, manufacturing or repair TID for read and write operations.
- Monthly water consumption data (date, cumulative usage, alarm information) can be stored for 10 years.
- Sound alarm function: The meter emits an alarm sound once the alarm is triggered.
- The watch has a reserved upgrade port for firmware upgrades.
