STS prepaid water meter system functions include water price setting, rate setting, quick search and recharge,Print receipts, reset balance, change password, query history, overdraft,etc.
Brief Introduction

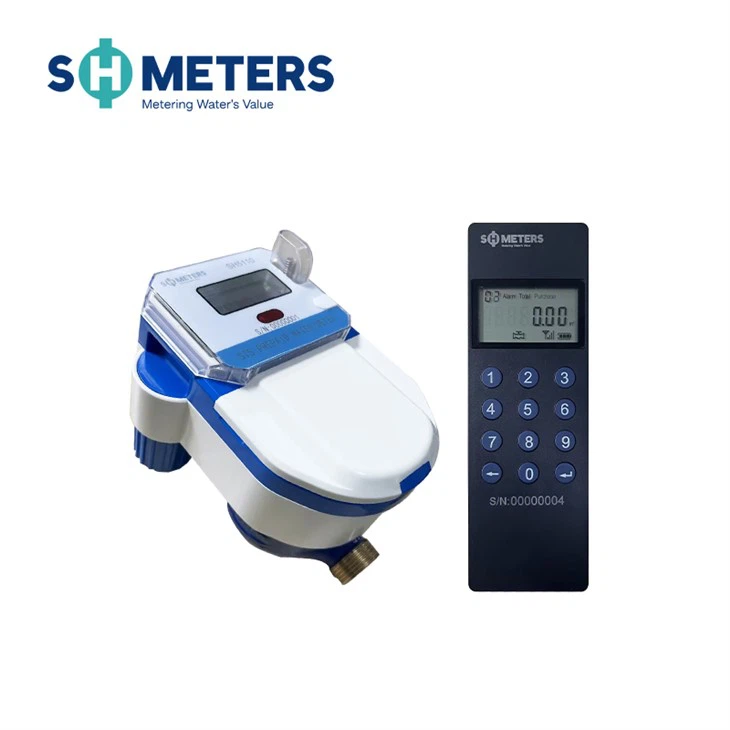

STS prepaid water meters is an STS Standard compliant, split keypad type, automatically valve controlled prepaid water meter.
The integrated keypad is offered to enter recharge TOKEN and check information by short codes.

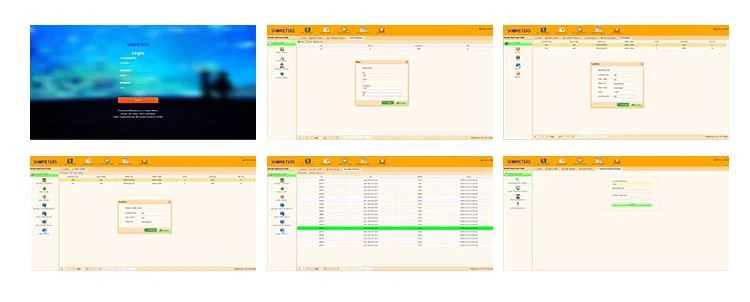

Stronpay water vending software could be integrated to local Mobile Money Payment Platform like M-PESA,Alipay,MTN,Airtel,etc.
So users can top up PAYG water by mobile money without leaving the house.
Pay as you go function and excellent anti-tamper feature like Magnetic field protection to help uitilities for revenue water protection and consumer managerment.
Customer Interface Unit (CIU), is offered to enter recharge tokens and information by short codes.
The CIU is installed inside customer's house,when the meter is kept away from customer's reach in locked boxes or houses.
Metrological Parameters-Directive 2004/22/EC(MID)&EN 14154:2007
Nominal size | Dn | mm | in-line | ||
15 | 20 | 25 | |||
Maximum flow | Q4 | m³/h | 3 | 5 | 7 |
Ratio"R" | Q3/Q1 | 100 | 100 | 100 | |
Permanent l flow | Q3 | m³/h | 1.5 | 2.5 | 3.5 |
Transitional flow | Q2 | 0.12 | 0.20 | 0.28 | |
Minimum flow | Q1 | 0.03 | 0.05 | 0.07 | |
Minimum reading | m³ | 0.0005 | |||
Maximum reading | 99999 | ||||
STS tokens water meter can only be keyed in when the ClU is powered on,when the ClU powered on and it read water meter first, if read success the ClU display the water meter information.ric type water meter, which comply with OIMLR49,ISO4064.And conforms to STS standard protocol.
You really deserved a high precision and quality water flow meter!
