Application of bulk cold/hot woltman water meter
Measuring the volume of cold(hot) water passing through the pipeline.Water meter is used for home or apartment
Features of bulk cold/hot woltman water meter
Removable element structure,easy installation and mainteance,register for universal use within this range detachable without Removing the meter from the pipeline
Dry-dial,Magnetic drive sensitice action,small pressure loss
Vacuum sealed register ensures the dial keep free from fog and keep.the reading clear in a long term service
Selected high quality materials for steady and reliable characteristic
Technical data conform to international standard ISO 4064
With high accuracy
Product accessories include connectors,filters,connection accessories,pipe accessries,Flange,filter
Optional Features

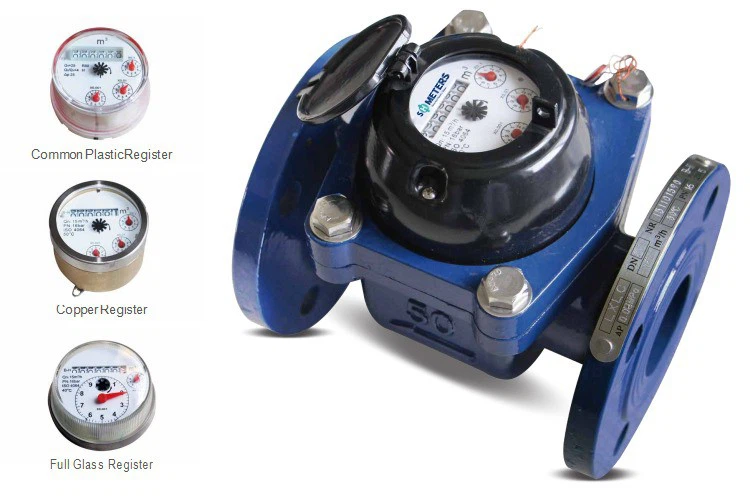

Plastic register,copper register and full glass register
Accuracy:R=class b
Size:DN50-DN300
Clod/Hot water
Reed switch option
Flange standard can be choose
360 degree rotade can be choose
Cast iron,Ductile iron,stainless steel,GG25,GG50,SS304,SS316 body can be choose
Color can be change on body and cover
Provide pulse output
Working Condition
Water temperature:0.1℃-50℃(0.1℃-90℃ for hot water meter)
Water pressure:PN10/16/25
Maximum Permissible Errors
in the lower zone from qmin inclusive up to but excluding qt is ±5%
in the upper zone from qt inclusive up to and including qs is ±2%(±3% for hot water meter)
Dimensions
Type | Size | Length | Height | Connecting Flange | ||
mm | D1 Outside Diameter | D2 Bolt Circle Diameter | Connecting Bolts(n-M) | |||
LX;C-50 | 50 | 200 | 214 | 165 | 125 | 4-M16 |
LXLC-65 | 65 | 200 | 224 | 185 | 145 | 4-M16 |
LXLC-80 | 80 | 225 | 279 | 200 | 160 | 8-M16 |
LXLC-100 | 100 | 250 | 289 | 220 | 180 | 8-M16 |
LXLC-125 | 125 | 250 | 299 | 250 | 210 | 8-M16 |
LXLC-150 | 150 | 300 | 319 | 285 | 240 | 8-M20 |
LXLC-200 | 200 | 350 | 346 | 340 | 295 | 8-M20(1.0DE) |
12-M20(1.6MPa) | ||||||
LXLC-250 | 250 | 450 | 434 | 395(1.0MPa) | 350(1.0MPa) | 12-M20(1.0MPa) |
405(1.6MPa) | 355(1.6MPa) | 12-M24(1.6MPa) | ||||
LXLC-300 | 300 | 500 | 459 | 445(1.0MPa) | 400(1.0MPa) | 12-M20(1.0MPa) |
460(1.6MPa) | 410(1.6MPa) | 12-M24(1.6MPa) | ||||
Note:The flange dimension conforms to ISO7005-1:1988 standard.Flange standard can be customized.Order for products of special requirements is also accepted
Pulse Position
Size | Pulse Position |
DN15-65 | 10/100/1000L/Pulse |
DN80-200 | 100/1000L/Pulse |
DN250-300 | 1000L/Pulse |
Pressure Loss Curve
The Opetation Description Of The Two Reed Switches System
Please see the diagram of the two reed switches system below,the two reed switches woud be operated "ON" or "OFF" respectively by the magnet fitted to the pointer or gear during its running on the register,but never "ON" at the same time,unless the out-magnet attackes
The two reed switches operate two "ON" and two "OFF" in one round of the pointer or the gear means one signal output,this principle prevent the loss or overcounting of the signal output due to the switches joggling or the pipe vibrating,so assures reliability of the signal output
Warranty
All meters will be guaranteed against defects in workmanship and material for a period of one(1) year from the date of acceotance.Defective meters or parts discovered within this period shall be replaced without charge upon return to the S.H.Meters.
