Product Description

The Mechanical Large Caliber Water Meter is a high-precision water meter specifically designed for measuring high-flow water consumption. Its robust and durable design, coupled with its accurate measurement capabilities, makes it an ideal choice for industrial and commercial purposes. This water meter utilizes advanced mechanical technology, ensuring high reliability and stable operation in various challenging environments.

Dimensions

demension

Nominal Flow	DN50	DN65	DN80	DN100	DN125	DN150	DN200	DN250	DN300
Maximum Flow Q4	31.25m³/h	50m³/h	78.75m³/h	125m³/h	200m³/h	312.5m³/h	500m³/h	787.5m³/h	1250m³/h
Permanent Flow Q3	25m³/h	40m³/h	63m³/h	100m³/h	160m³/h	250m³/h	400m³/h	630m³/h	1000m³/h
Q3 /Q1	20m³/h	20m³/h	20m³/h	20m³/h	20m³/h	20m³/h	20m³/h	20m³/h	20m³/h
Q2 /Q1	4m³/h	4m³/h	4m³/h	4m³/h	4m³/h	4m³/h	4m³/h	4m³/h	4m³/h
Transitional Flow Q2	5m³/h	8m³/h	2.6m³/h	20m³/h	32m³/h	50m³/h	80m³/h	126m³/h	200m³/h
Minimum Flow Q1	1.25m³/h	2m³/h	3.15m³/h	5m³/h	8m³/h	12.5m³/h	20m³/h	31.5m³/h	50m³/h

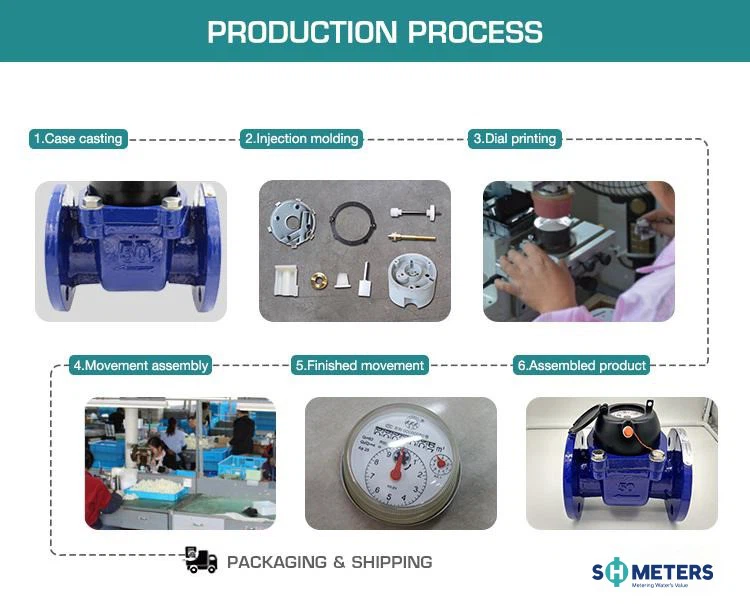

product composition '

woltman water meter

Feature

Size	DN15-DN300
Application	Irrigation Water Meter Flow Meter
Standard	ISO-4064
Temperature	Cold Water:0.1-50 /hot Water:0.1-90
Material	Cast Iron/Ductile iron/SS304/SS316
Pressure	≤1.0MPa
Feature	High Performance
Range ratio	R20
type	dry-dial

package
