Basic information:
Type: industrial or irrigation type
Size: DN50 - DN600mm
Material: Cast Iron, Ductile iron, Stainless Steel
Temperature: T50(cold type); T90(hot type)
Max working Pressure: PN10, PN16, PN25(Optional)
Remote reading: Pulse output

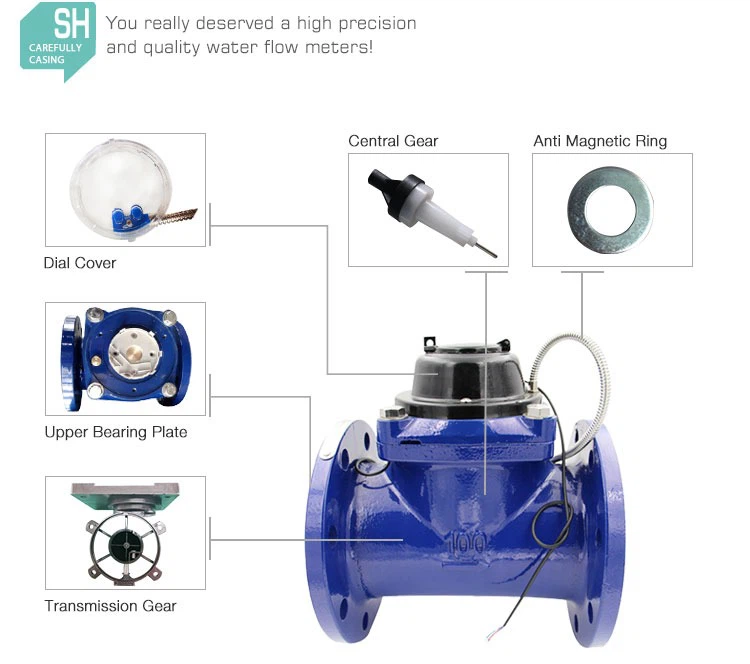

Appearance:
1. Body and Dial
2. Mechanism
--- Industry type (DN50 - DN600mm)
---Irrigation type(DN50- DN300mm)

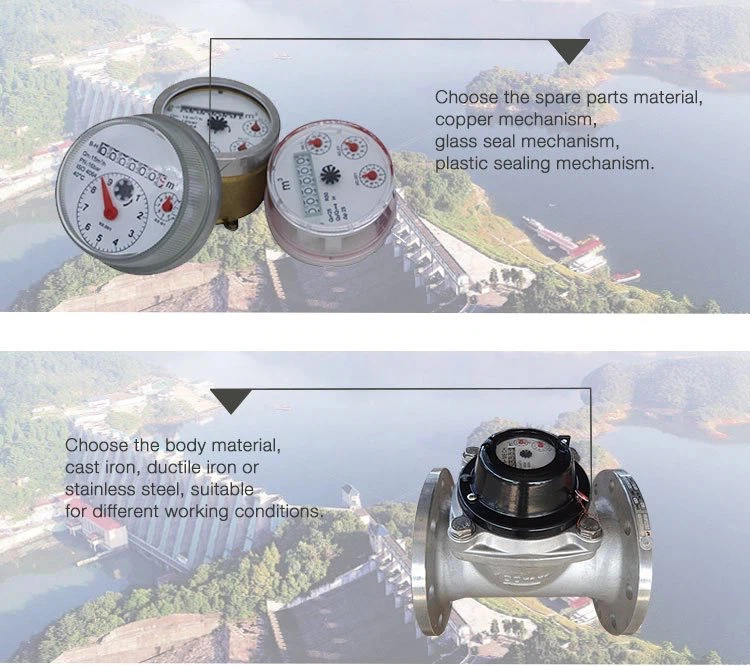

3. Three types of registers can be chosen:

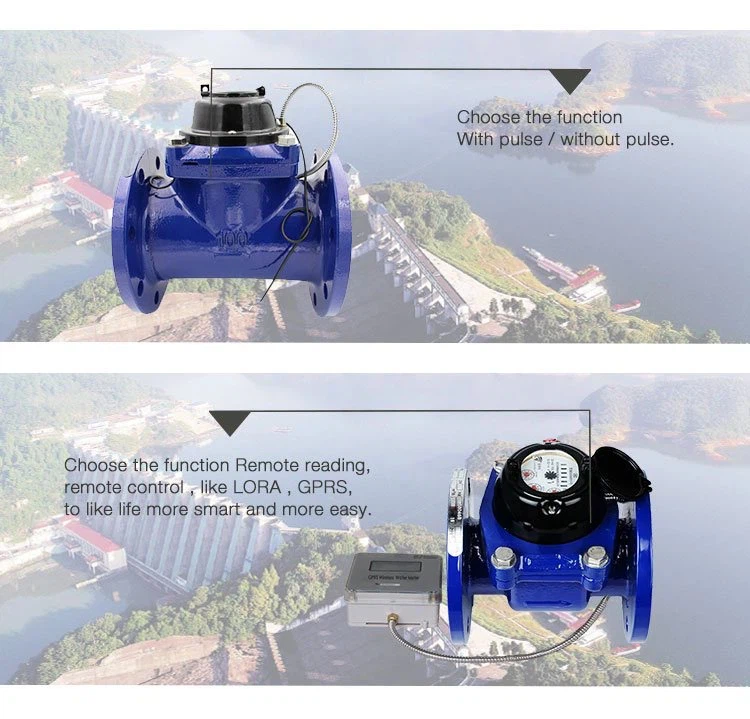

4. Pulse output (Three wire, double switch)
-- DN50-200(100L/P) -- DN250-300(1000L/P)-- DN500(10000L/P)

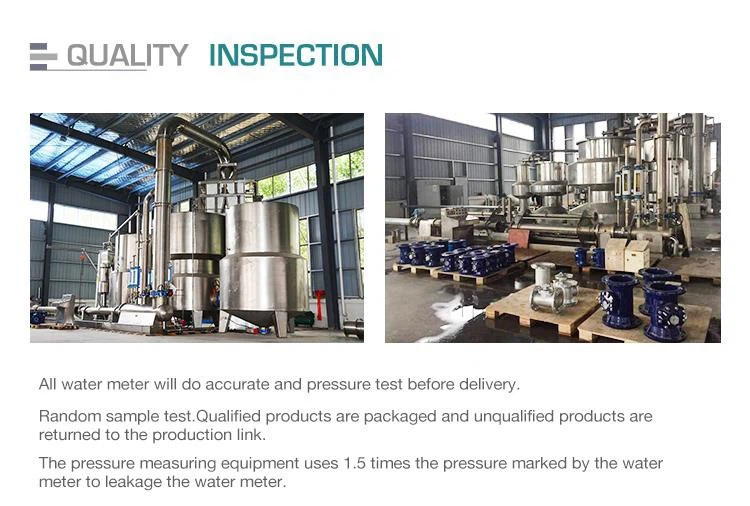

5. Test equipment and factory
Each Woltman water meter is tested before leaving the factory to ensure quality. Please check the image of our test equipment:
6. Advantage:
Body material adopts high abrasion resistance with corrosion protection by epoxy pain. Mechanical material adopts 100% primary material to ensure a stable counter and long service time.
|

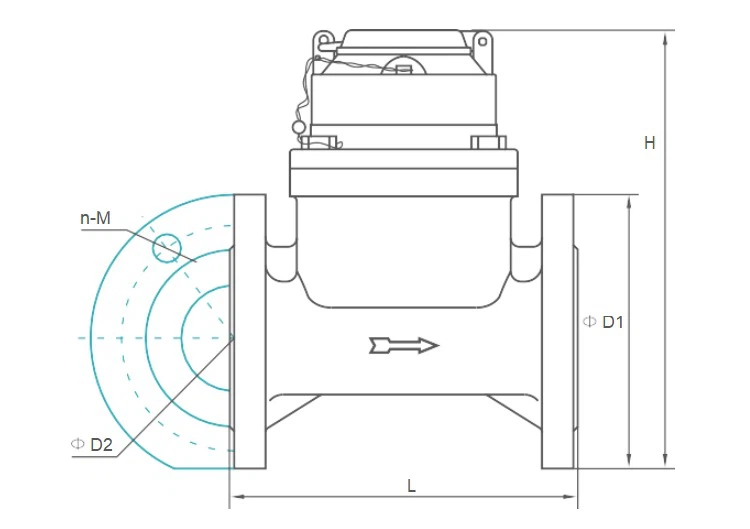

Type |
Size |
L Length |
H Height |
Connecting Flange |
|
|
mm |
D1 |
D2 |
|||
|
50 |
50 |
200 |
214 |
165 |
125 |
|
65 |
65 |
200 |
224 |
185 |
145 |
|
80 |
80 |
225 |
279 |
200 |
160 |
|
100 |
100 |
250 |
289 |
220 |
180 |
|
125 |
125 |
250 |
299 |
250 |
210 |
|
150 |
150 |
300 |
319 |
285 |
240 |
|
200 |
200 |
350 |
346 |
340 |
295 |
|
250 |
250 |
450 |
434 |
395(1.0Mpa) |
350(1.0Mpa) |
|
405(1.6Mpa) |
355(1.6Mpa) |
||||
|
300 |
300 |
500 |
480 |
445(1.0Mpa) |
400(1.0Mpa) |
|
460(1.6Mpa) |
410(1.6Mpa) |
||||
CHARACTERISTICS
All materials in contact with water, consciously selected by the known resistance to corrosion;
Iron body with interior and exterior epoxy coating to protect against corrosion;
The ROTATION indicator indicates the most comfortable reading position;
Copper can register super dry with IP68 protection;
The interchangeable and removable measuring mechanism can be easily removed from the body for inspection, maintenance, and replacement, with no need to disassemble the body from the pipe;
Suitable for any position installation;
Low-pressure drop;
Unaffected by external magnetic fields;
Always ready pulse output and OPTIONAL pulse output
