Features |
Application |
|
1. Low start-up flow rate. 2. Volumetric rotary piston principle of measurement. 3. Accuracy is not affected wherever installed at a horizontal, vertical, or inclined pipeline. 4. Register is sealed with a special liquid to keep a clear reading in long-term service. 5. Mechanism use of high-quality materials to ensure a stable characteristic. 6. Accurate measurement with conformity to lSo 4064 class c. 7. on request, the series can be equipped with a remote transmission device.
|
Measuring the volume of cold portable water passing through the pipeline.Also suitable for pure water. |
|
Warranty |
|
|
- Water temperature:0.1℃~50℃ for cold water meter. .0.1℃~90℃ for the hot water meter. .Water pressure: ≤1.6Mpa (16 bar). |
|
|
Operating Condition |
|
|
-The Max.Admissible water pressure 1.6MPa. -Resisting water temperature: 50℃. |
|
Description |
Unit |

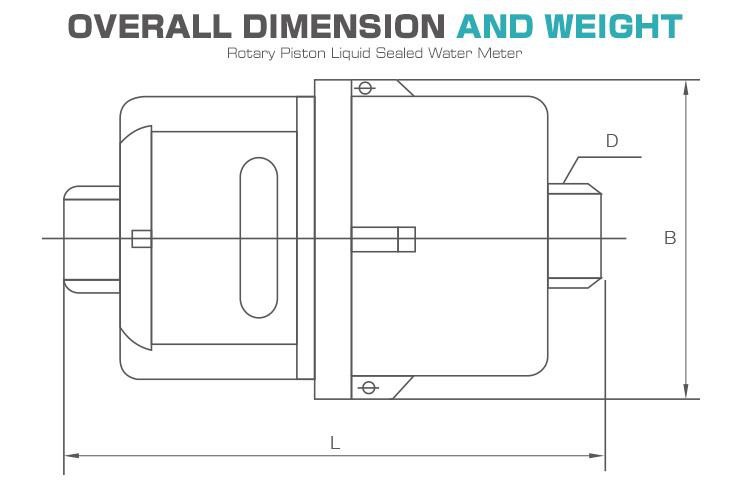

Hydraulic Data And Dimensions |
|||||
|
Nominal Size |
mm(inch) |
DN15(1/2) |
DN20(3/4) |
DN(1) |
DN32(1-1/4) |
DN40(1-1/2) |
|
|
L |
mm |
115 |
165 |
199 |
260 |
300 |
|
|
B |
mm |
43 |
43 |
53 |
60 |
77 |
|
Install
The volumetric water meter is installed in the pipeline, and it is composed of some known volume chambers that are filled and discharged fluid one by one and a water meter driven by fluid, or quantitative discharge water meter for short. Volumetric water meters generally adopt a piston structure. Unlike velocity meters, positive displacement meters measure the actual volume of fluid passing through the meter
The volumetric water meter is installed in the pipeline, and it is composed of some known volume chambers that are filled and discharged fluid one by one and a water meter driven by fluid, or quantitative discharge water meter for short. Volumetric water meters generally adopt a piston structure. Unlike velocity meters, positive displacement meters measure the actual volume of fluid passing through the meter. Therefore, volumetric water meters are more accurate than speed water meters. The measurement error of the speed water meter will have an error of ±2% according to the speed of the passing fluid, while the error of the volumetric water meter can be controlled at ±0.5% or even lower.
