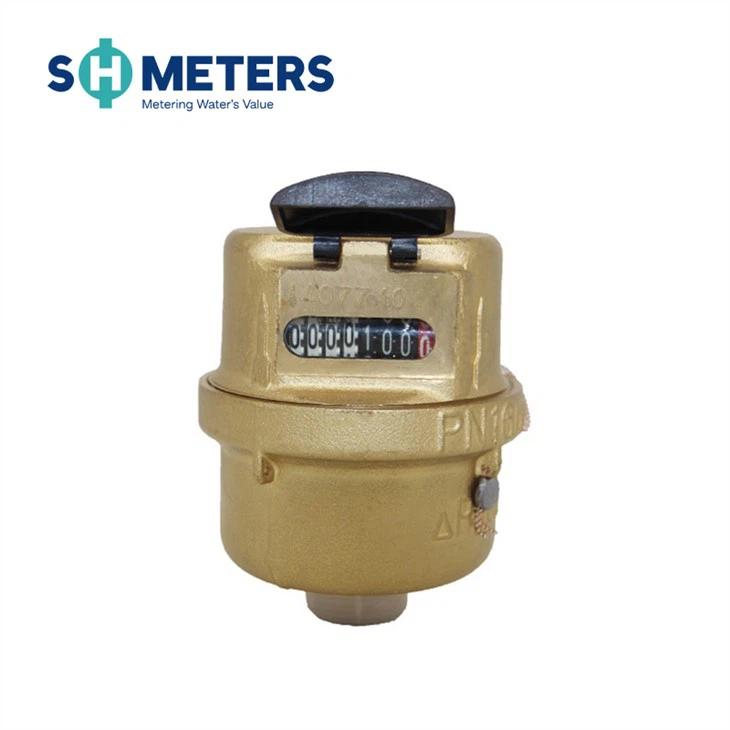

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of dn15~dn40 class c horizontal water meter for residence brass body reed switch screw type in China. If you're going to wholesale high quality dn15~dn40 class c horizontal water meter for residence brass body reed switch screw type, welcome to get pricelist and quotation from our factory.

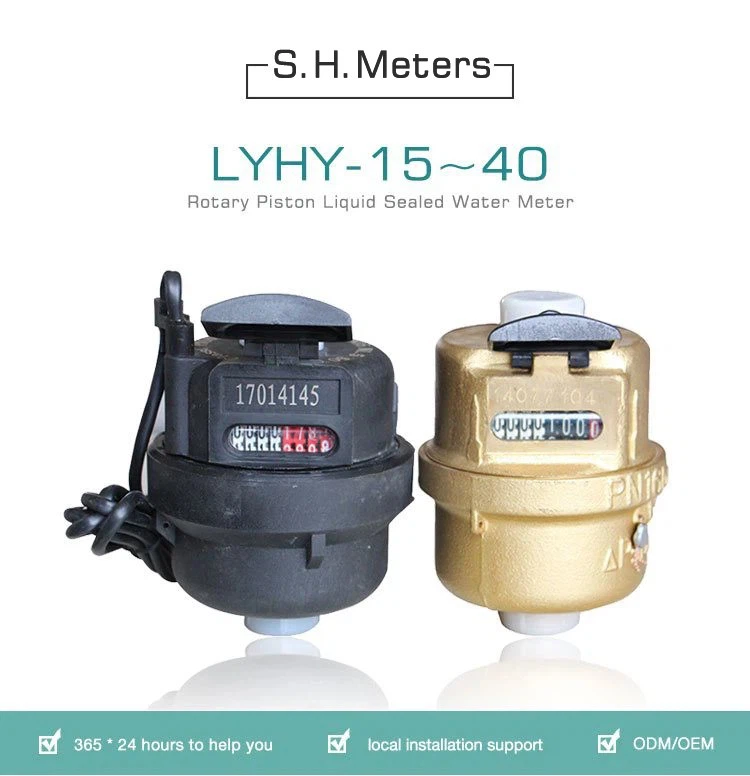

volumeteric water meter(5)

Application

Measuring the volume of cold portable water passing through the pipeline. Also suitable for pure water

Operating Condition

The Max.Admissible water pressure 1.6MPa.

Resisting water temperature: 50℃.

Features

Low start-up flow rate.

Volumetric rotary piston principle of measurement.

·LXHY-15~20 is no location limitation for installation. Accuracy is not to be affected wherever installed at a horizontal, vertical or inclined pipeline.

Mechanism use of high-quality material to ensure a stable characteristic.

Accurate measurement with conformity to ISO 4064 class C.

On request, the series can be equipped with a kind of remote transmission device.

Pulse Position

Magnet Position	Liter/Pulse
*0.0001	1
*0.001	10

Note

Body material: Brass body / Plastic body.

Size: Plastic body: DN15-20; Brass body: DN15-40.

Different register can be choose

Dial Picture	Measure Unit
	Measure Unit: CBM 8 WHEELS Four red, four white wheel. The minimum reading: 1L
	Measure Unit: CBM 8 WHEELS Three red,five white wheel. The minimum reading: 1OL
	Measure Unit:UK Gallon 8 WHEELS One red,seven white wheel The minimum reading: 1 UK/Gallon
	Measure Unit:UK Gallon 8 WHEELS All white wheel The minimum reading: 10 UK Gallon
	Measure Unit:US Gallon 8 WHEELS One red,three black,four white wheel The minimum reading: 1 US Gallon

Dimensions

Description		Unit	Hydraulic Data And Dimensions
Nominal Size		mm(inch)	DN15(1/2)	DN20(3/4)	DN(1)	DN32(1-1/4)	DN40(1-1/2)
Q4 Error Limit ±2%		m³/h	3.125	5	7.875	12.5	20
Q3 Error Limit ±2%		m³/h	2.5	4.0	6.3	10	16
Q2 Error Limit ±2%		l/h	25	40	63	100	160
Q1 Error Limit ±5%		l/h	15.6	25	39.4	62.5	100
Min.Reading		l	0.05	0.05	0.05	0.5	0.5
Max.Reading		m³	9999.9999	9999.9999	9999.9999	99999.999	99999.999
MAP		MPa	1.6	1.6	1.6	1.6	1.6
Press Loss ΔP AT		MPa	≤0.063	≤0.063	≤0.063	≤0.063	≤0.063
L		mm	115	165	199	260	300
B		mm	43	43	53	60	77
weight	Without Connections	Kg	1.14	1.56	2.48	3.47	5.65
weight	With Connections	Kg	0.97	1.3	2.05	2.75	4.7

Maximum Permissible Error

Warranty

All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return to the S.H.Meters.

Exploded View
