DN15 R200 Multi Jet Liquid Sealed Type Brass Water Meter

MULTI-JET TYPE

Dry-dial Brass Body Water Meters

Product Description

APPLICATION
Measuring the volume of cold potable water passing through the pipeline

FEATURES
Class C. Adopting pointer and word-wheel combination count device, with advanced, beautiful and elegant structure,
the counter is sealed by special type liquid, the reading is clear for long,
convenient meter copy and long service life.
Preset remote, 100L per pulse output.

WORKING CONDITION
Water temperature: ≤50ºC for cold water meter
≤90ºC for hot water meter
Water pressure: ≤1MPa or 1.6MPa optional
(10bar or 16bar optional)

MAXIMUM PERMISSIBLE ERROR
In the lower zone from Qmin inclusive up to but excluding Qt is ±5% _ In the upper zone from Qt inclusive up to and including Qs is: cold water meter ±2%, hot water meter ±3%.
NOTE
Technical data conform to International Standard ISO4064

ACCESSORIES

Each water meter has one set couplings optional: 2pcs tube, 2pcs nut and 2pcs gasket.

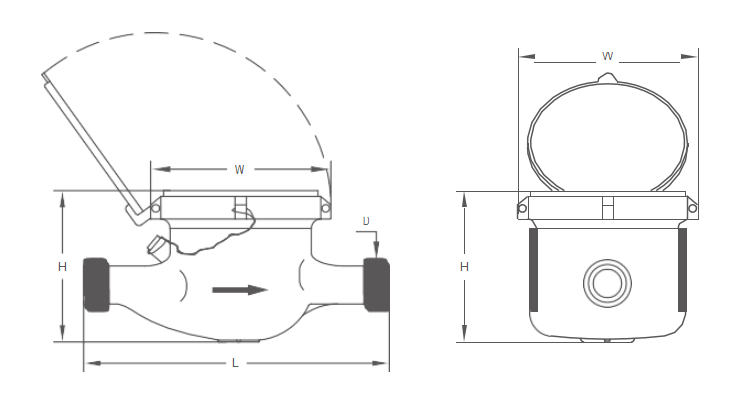

Overall Dimension And Weight

DN(mm)	15	20	25	32	40	50	50
Size(inch)	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2"
Length(L)	165/190	190	260	260	300	300	280
Width(W)	98	98	103.5	103.5	125	125	160
Height(H)	116	117	124	124	162	162	187.5
Connecting Thread D	G3/4B	G1B	G11/4B	G11/2B	G2B	G21/2B	Flange end
Weight(kgs)	1.65	1.79	1.85	2.68	5.25	7.25

Technical Data

DN(mm)		15	20	25	32	40	50
Size(inch)		1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Q4(l/h)		3125	5000	7875	12500	20000	31250
Q3(l/h)		2500	4000	6300	10000	16000	25000
R=160	Q2(l/h)	22.5	40	63	100	160	400
	Q1(l/h)	15.62	25	39.37	62.5	100	250
R=200	Q2(l/h)	20	32	50.4	80	128	200
	Q1(l/h)	12.5	20	31.5	50	80	125
Max.Reading(m³)		99,999	99,999	99,999	99,999	99,999	99,999
Min.Reading(Liter)		0.05	0.05	0.05	0.05	0.05	0.05
Max.Pressure(Bar)		16	16	16	16	16	16
Pressure Loss		63
Max.Temperature		T=50/90
Pulse Output Option		Vmax=24V
		Imax=100mA
		Pmax=2W

Pulse Output Option

Warranty

All meters will be guaranteed against defects in workmanship and materials for a period of one (1) year from the date of acceptance. Defective meters or parts discovered within this period shall be replaced without charge upon return to the S.H.Meters.
