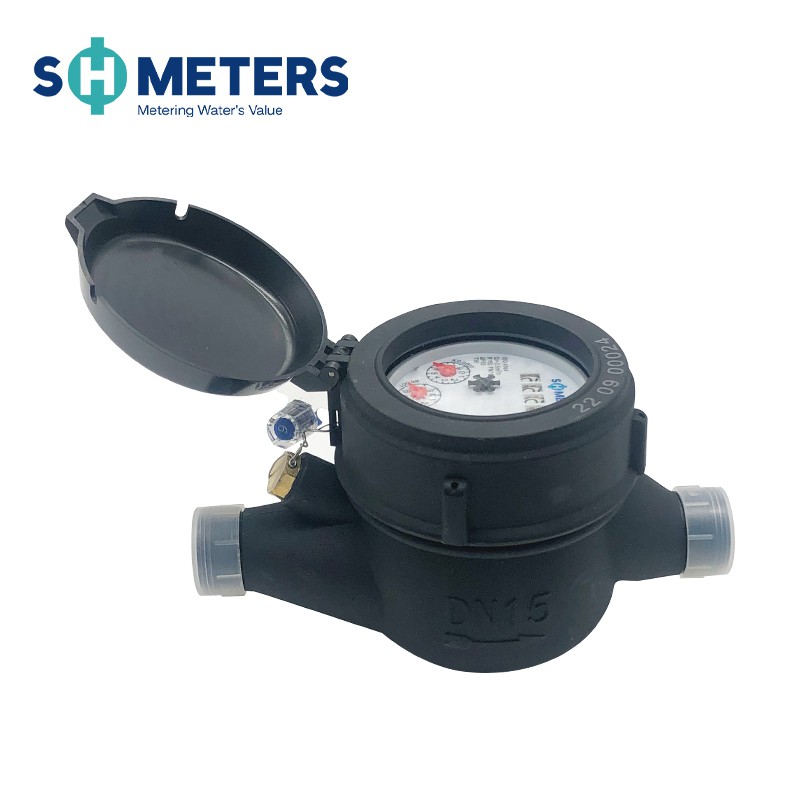

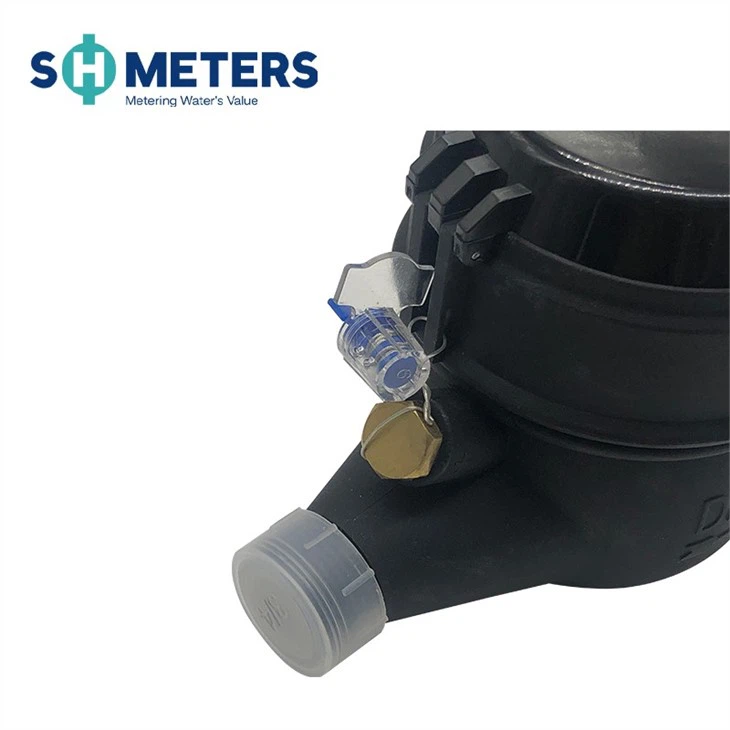

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of 1/2inch~2inch domestic residential dry dial water meter plastic body cold water meter in China. If you're going to wholesale high quality 1/2inch~2inch domestic residential dry dial water meter plastic body cold water meter, welcome to get pricelist and quotation from our factory.

Application

Measuring the volume of cold (hot) water passing through the pipeline.Water meter is used for home,commercial,municipality,pipeline

Features

·Magnetic Drive, Lower transmission resistance.
·Magnetic shield, for external magnetic field protection.
·Sealed dry register ensures long time clear reading.
·External regulating device.
Accressories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.
·With high accuracy
·For horizontal use
·Accessories include Strainer, Rotary piston, Connection Widget, connector fitting

Optional Features

·Register sealed type: Dry type; Semi-dry type; Super-dry type.
·Accuracy: R=160; 200;class b;class c.
·Size: 15~50mm.
·Cold water.
·Non return valve.
·Reed switch option.
·Several lengths and connections availavle on request.
·Thread end type: BSP / NPT.
·Materials: Plastic
·Plastic Working pressure: PN10(10bar)
·Provide pulse output/rs485 modbus/wired remote/pulse splitter/pulse read display

Maximum Permissible Error

·In the lower zone from qmin inclusive up to but excluding qt is ±5%.
·In the upper zone from qt inclusive up to and including qs is ±2%; ±3% for hot water meter.

Standards Compliance

Technical data conform to international standard ISO 4064.

Working Conditions

·Water temperature: 0.1℃~50℃ for cold water meter.
·Water pressure: ≤1.6Mpa (16 bar).

Overall Dimension And Weight

DN(mm)	15	20	25	32	40	50	50
Size(inch)	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2"
Length(L)	165/190	190	260	260	300	300	280
Width(W)	98	98	103.5	103.5	125	125	160
Height(H)	116	117	124	124	162	162	187.5
Connecting Thread D	G3/4B	G1B	G11/4B	G11/2B	G2B	G21/2B	Flange end
Weight(kgs)	1.65	1.79	1.85	2.68	5.25	7.25
