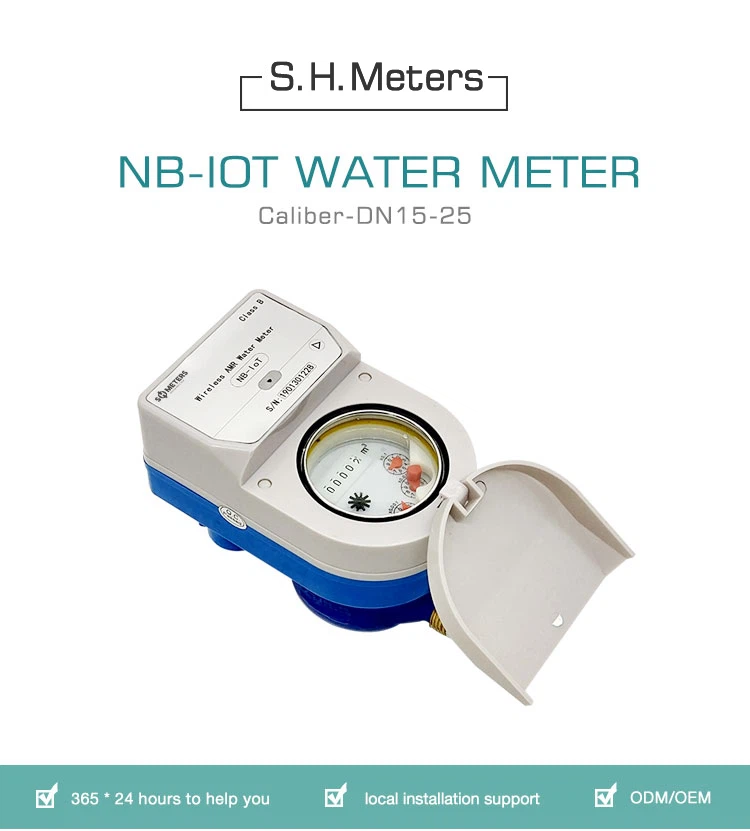

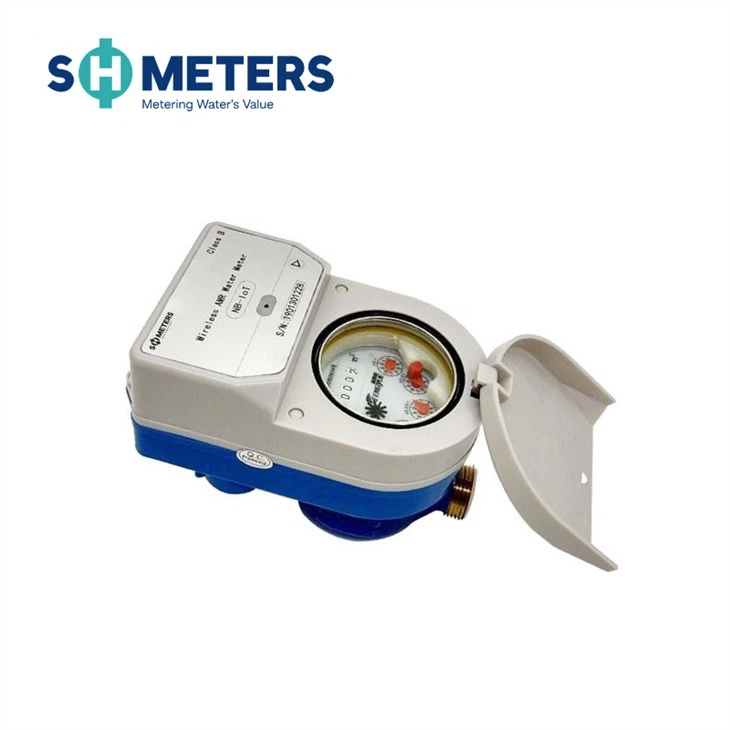

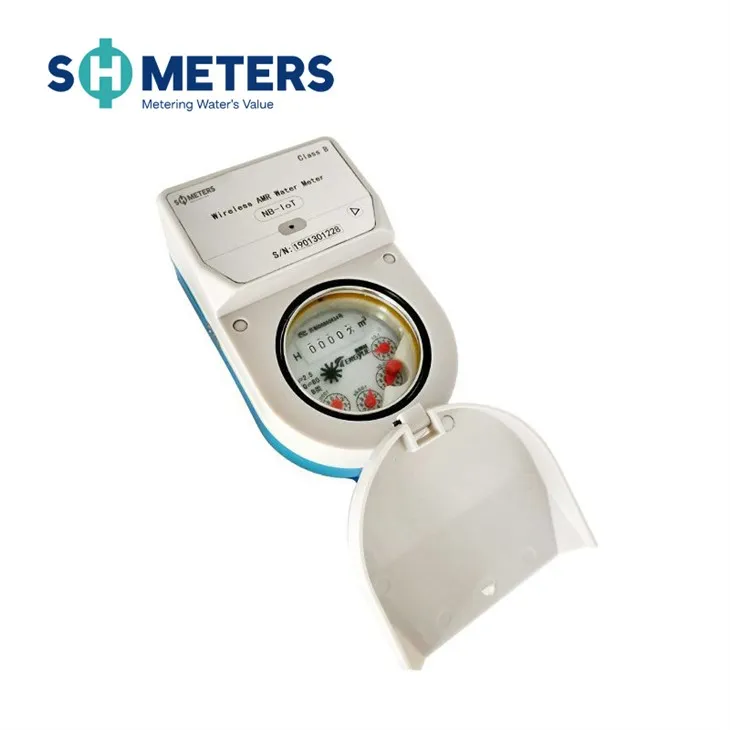

The whole system of NB-IOT water meter is composed of IoT management system platform, NB base station, and IoT water meter (NB-IoT).
The system has a high degree of automation and actively uploads data once a day. However, this can be set according to management requirements, and the operation and consumption of the water meter can be monitored at any time, with a wide range of applications. Low power consumption is an important indicator of IoT water meters, especially suitable for occasions where it is not easy to replace the battery. If you use a battery-powered water meter, it is absolutely unrealistic.
The IoT NB-IoT module has small data volume and low rate. Function, so the power consumption of the NB-IoT module can be very small. The Internet of Things water meter (NB-IoT) has a built-in 6-year communication fee, no renewal is required, so you can use it with confidence.
SHMETERS specializes in the development and production of various caliber IoT water meters.
Product Overview
NB-loT Internet of Things is characterized by strong links, high coverage, low power consumption, and low cost. t is also called the "Narrowband Internet of Things".Because of its very low communication power consumption, the NB-loT wireless remote water meter can continue to work for more than six years without changing the battery. Using the NB-loT wireless remote water meter can realize the wireless automatic meter reading function. At the same time every day, the NB-loT module will collect and automatically transmit the water consumption data of each household to the management platform.Perform statistical analysis and charge for the water consumption of water meters in the managementarea.
The NB-loT system consists of the NB-loT management system platform, base stations, and loT water meters (NB-loT). The system has a high degree of automation, can monitor the operation and consumption of the meter at any time, and has a wide range of applications.
Technical Features
1. High security
•Two-way authentication;
•The air interface is strictly encrypted;
•Dedicated channel, no other signal interference,and more stable data transmission
2.Wide coverage
•20db gain, coding gain;
•lmproved narrowband power spectrum density;
•lt has a retransmission mechanism when automatic transmission fails;
•China Mobile/Telecom's NB-loT base station has achieved full coverage
3.Low power consumption
•Battery life of more than 6 years (1 day/1 communication);
•Simplify protocol and chip micro power consumption;
•High functional efficiency;
•Short transmission/reception time;
4.Big connection
•High frequency increase efficiency;
•Small packet data sending characteristics;
•Very low activation ratio of the terminal.
5. Product implementation standards
•ISO9001; GB/T778.1.2.3-2007;JJG 162-2009;CJ/T 188-2004.
Product Features
1.Periodic report: report the 24 hours data of the previous day, and the data includes daily freezing information.
2.High-frequency periodic reporting: The sending frequency can be set or changed through the platform,and the minimum reporting period is every hour
3.Intensive data collection:4 hours from the set start time, one point every 5 minutes, a total of 48 points of accumulated flow.
4.Data repackaging: When data reporting is unsuccessful, the data will be automatically re-reported in the next reporting period, and data within the effective storage range can be re-reported.
5.Discrete setting: Discrete the reported time points randomly through the program, the minimum estimated length is 10S, and the default is 0 to 8 points to ensure that the communication base station will not be blocked by a large amount of data in a short time.
6.Remote setting of parameters: Through the near-end handheld infrared reading device and
communicating with the management platform, setting IP, port and other parameters
7.Alarm function: When the battery undervoltage is lower than the predetermined value, the platform will automatically alarm to remind the administrator
8.Time proofreading: When the data is reported periodically, the clock will be automatically proofread with the platform to ensure the accuracy of the time
Technical Features:
Communication method: Comply with the standard NB-IoT protocol and support all Netcom.
Signal antenna: NB-IoT full-band support, in order to ensure that NB-IoT signal can transmit signals normally in severe shielding and interference environment, the antenna of NB-IoT needs to be specially adjusted for the product, and test data should be provided.
Power supply mode: battery power supply, lithium thionyl chloride battery, which needs to meet the service life of 6 years, and the battery can be replaced.
Use of supercapacitors: It is required to use supercapacitors on the water meter equipment to provide a large current for signal transmission to ensure stable signal transmission.
Data reporting: The reporting frequency can be set by the platform, and it is reported once every 24 hours by default. The platform realizes high-intensity data reporting for pipe network data analysis; supports manual data reporting function. NB signal detection: The device side needs to have NB-IoT signal detection function, which can measure signal strength and bit error rate, which is convenient for device deployment and problem analysis.
Valve control function: manual valve control, automatic valve control, valve closing in arrears, abnormal closing, valve opening after renewal, etc., support valve switch in place detection function, to prevent incomplete switching.
Sim card support: micro card is currently supported, and the eSIM function is reserved.
Anti-rust function: It can report the fault information to the cloud service platform in real time, and carry out background linkage processing in time, and at the same time, it is convenient for users to inquire. The water meter valve is automatically switched on and off regularly without affecting the customer's water use to prevent the valve from rusting.
Anti-attack function: When the water meter is attacked by strong magnetism or electricity, it will automatically close the valve to stop the water supply, and automatically record and report the attack, open the reading cover of the water meter, and the valve will open, but when the number of attacks reaches the set value, the platform must be closed Only after authorization can the valve be opened.
Software Advantages
1. Power supply: DC 3.6V;
2. Battery capacity and life: 8500mAh can be used for more than 6 years (automatically uploaded once a day)
3. Static power consumption: ≤10uA Communication power consumption: ≤18uA
4. Working temperature: cold water meter: (0.1~30)℃ hot water meter: (0.1~90)℃;
5. Working pressure: ≤1.0MPa;
6. Pressure loss:≤0.063MPa;
7.Shell protection grade: IP68;
8.Sensitivity level of flow profile: U10/D5
9. Installation environment: Class B;
10.Electromagnetic environment: E1- residential, commercial and light industry;
The platform adopts the B/S architecture design method, no need to install the client, in the place where you can access the Internet,you can log in to the system by directly entering the URL,which is convenient and fast.
1.Perfect remote parameter setting and management control
2.Multiple billing methods and types, a variety of table format output, and can provide user customization functions
3. With user password protection, multi-level operation management, high socurity and confidentiality
4. Data analysis function, daily statistics,monthly statistics, and statistical report outpu
5. Diversified data interface docking can be seamlessly docked with the current software management platform of the water management department
Installation Requirements
1. For water meters installed underground, NB signal detectors must be used to detect the signal strength of the surface at the installation location before installation. The signal coverage level must be ≤1. Blind installation may cause the water meter to not upload, and the manufacturer is powerless to solve this problem.
2. The caliber of the water meter should be selected based on the pipe caliber and flow rate being equal to or less than the usual flow rate of the water meter.
3. For newly installed pipes, be sure to wash out the stones, silt, hemp and other sundries in the pipes before installing the water meter to avoid water meter failure.
4. The installation location should avoid sun exposure, freezing, pollution and flooding.
5. The water meter must be installed according to the prompts on the dial. The one marked with "H" is installed horizontally, and the one marked with "V" is installed vertically. The dial faces upward, and the direction of the arrow on the case is the same as the water flow.
6. There should be enough space around the meter installation for the meter installation and debugging and future maintenance. In particular, it is forbidden to seal the watch in a small space. Not only is it inconvenient for you to use, but also the maintenance personnel cannot maintain it, causing trouble to yourself.
7. In order to facilitate daily maintenance, valves should be installed upstream and downstream of the water meter, and the inlet and outlet of the water meter should have straight pipe sections of the same diameter. A straight pipe section of more than 10D should be reserved in front of the meter, and a straight pipe section of more than 5D should be reserved behind the meter.
8. It is recommended to install a filter screen upstream of the water meter to prevent debris mixed into the pipeline from damaging the water meter.
9. The upstream and downstream straight pipe sections should be installed coaxially, and the gasket must not penetrate into the pipe to avoid inaccurate measurement.
10. It is strictly forbidden to artificially shield the wireless communication of the meter.
