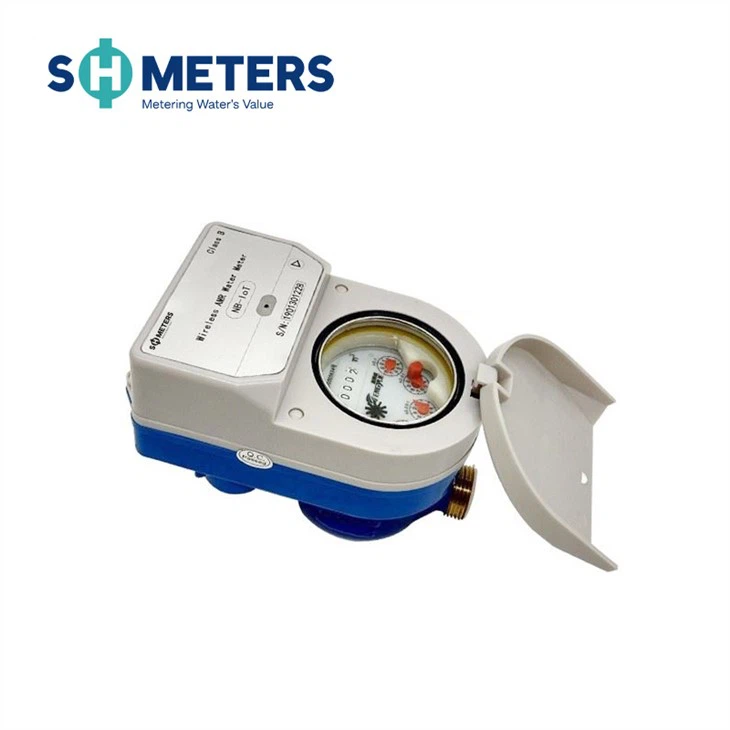

Hebei Shanghong Meters Technology Co., Ltd. is one of the leading manufacturers and suppliers of domestic residential brass dry dial type nb-iot water meter in China. If you're going to wholesale high quality domestic residential brass dry dial type nb-iot water meter, welcome to get pricelist and quotation from our factory.
Product Description
Functions:
Product Overview
NB-loT Internet of Things is characterized by strong links, high coverage, low power consumption,
and low cost. t is also called the "Narrowband Internet of Things".Because of its very low communication power consumption, the NB-loT wireless remote water meter can continue to work for more than six years without changing the battery. Using the NB-loT wireless remote water meter can realize the wireless automatic meter reading function. At the same time every day, the NB-loT module will collect and automatically transmit the water consumption data of each household to the management platform.Perform statistical analysis and charge for the water consumption of water meters in the managementarea.
The NB-loT system consists of the NB-loT management system platform, base stations, and loT water meters (NB-loT). The system has a high degree of automation, can monitor the operation and consumption of the meter at any time, and has a wide range of applications.Characteristics:
1.Long Life-time Battery: Standard ER26500 battery + SPC1520 battery make sure using time is 8 years at least.
2.Reading Technology: Direct reading technology makes sure data accuracy is 100%. 3.Flexible Uplink Frequency: Uplink cycle can be set up to meet management requirement of different users.
4.Design Patent of Battery Detachable Contruction: Battery can be changed individually.

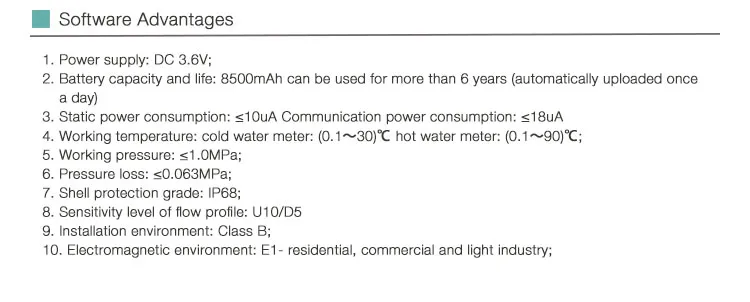

Software Advantages
1. Power supply: DC 3.6V;
2.Battery capacity and life: 8500mAh can be used for more than 6 years (automatically uploaded once a day)
3.Static power consumption: ≤10uA Communication power consumption: ≤18uA
4. Working temperature: cold water meter: (0.1~30)℃ hot water meter: (0.1~90)℃;
5.Working pressure: ≤1.0MPa;
6. Pressure loss:≤0.063MPa;
7.Shell protection grade: IP68;
8.Sensitivity level of flow profile: U10/D5
9. Installation environment: Class B;
10.Electromagnetic environment: E1- residential, commercial and light industry;
Multi-flow rotor type: adopt the mainstream metering structure.
Liquid-sealed movement: high sensitivity; the special liquid encapsulation of the word wheel window can keep the reading permanently clear.
Dry-type movement: central magnetic drive, anti-magnetic interference, good stability, strong anti-freezing ability, permanent and clear readings.
Electromechanical separation: independent sealing structure: good interchangeability, easy maintenance, waterproof, moisture-proof, protection grade IP68.
The battery is independently sealed: independent cavity, replaceable.
Stable and reliable signal: Adopt new NB-loT/LoRa wireless data transmission technology.
Electronic sampling: Sampling 1, 10L, 100L are optional.
Optional materials: ductile iron, engineering plastics, copper, stainless steel. .
Environmental class: Class B Electromagnetic environment: E1
Temperature class: T30, T90
Accuracy Class: Class 2
| Nominal Diameter | Length L | Length L1 | Width B | Height H1 | Height H2 | Connecting Thread | |
| mm | d | D | |||||
| 15 | 258 | 165 | 90 | 120 | 190 | R1/2 | G3/4B |
| 20 | 299 | 195 | 90 | 120 | 190 | R3/4 | G1B |
| 25 | 345 | 225 | 90 | 120 | 190 | R1 | G1 1/4B |
